Goodman

SKU: Model: AMST30BU1300

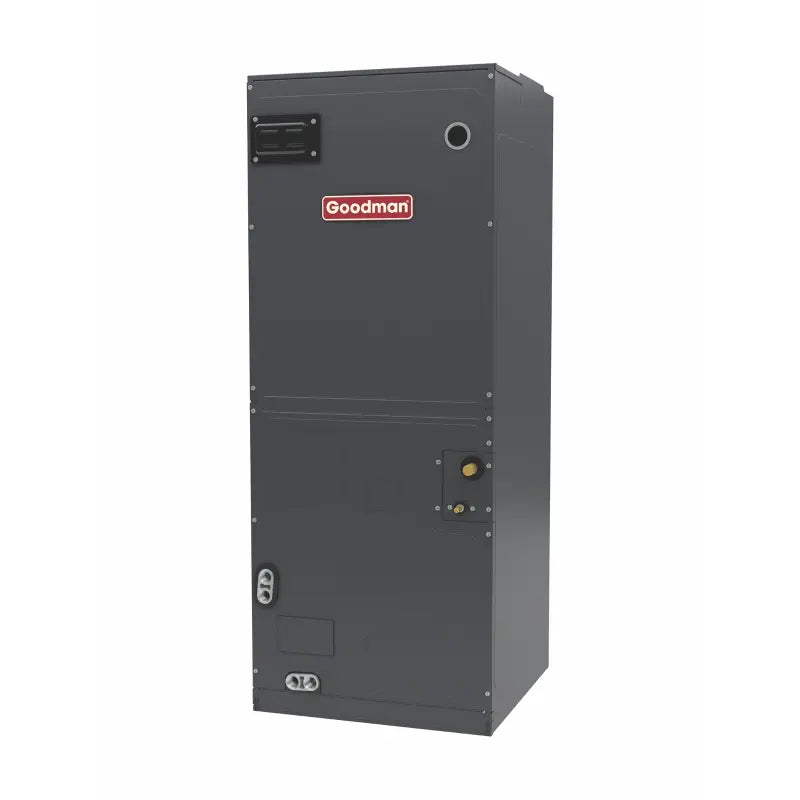

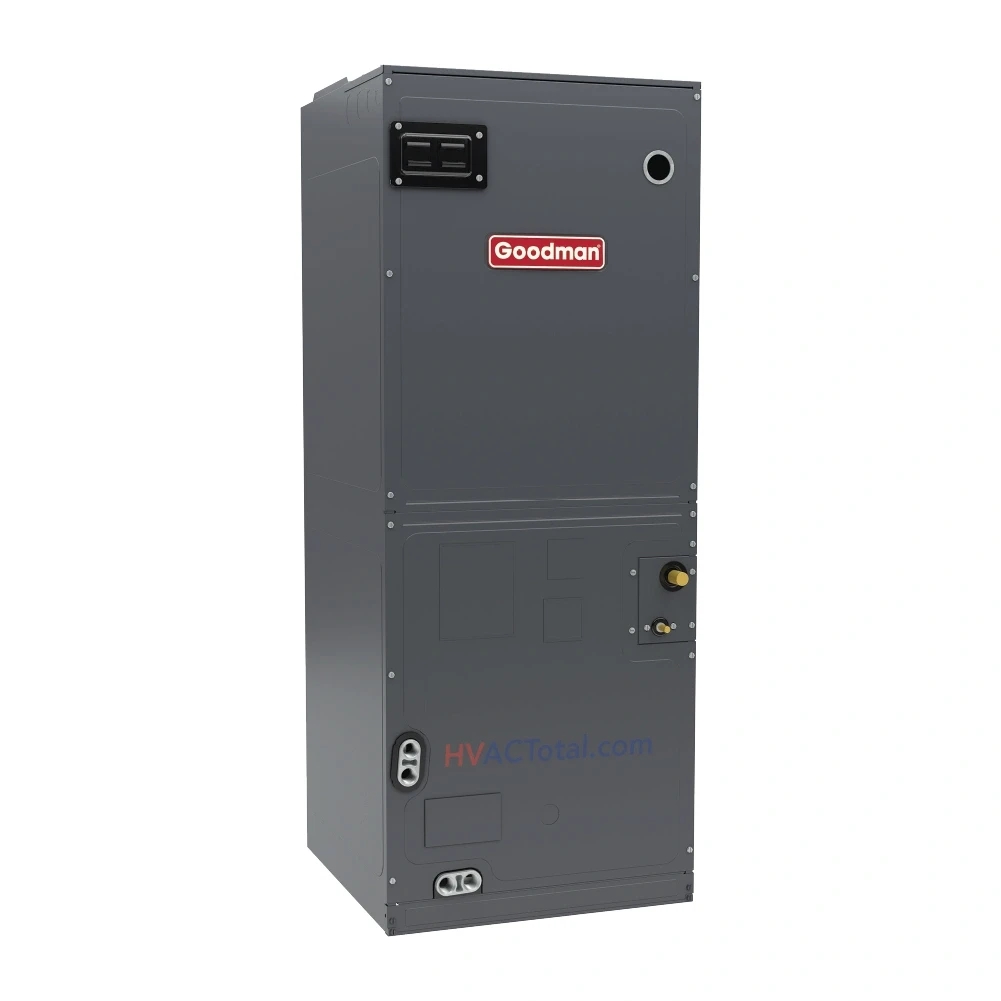

Goodman 2.5 Ton Ducted Multi-positional Air Handler, AMST30BU1300, 9 Speed ECM Motor

Goodman 2.5 Ton Ducted Multi-positional Air Handler, AMST30BU1300, 9 Speed ECM Motor

Regular price $1,423.00
Regular price Sale price $1,423.00
Sale Sold out
View full details
  • AMST30BU1300

    • Product Benefits:
      • All-Aluminum tube/aluminum fin coil
      • Direct-drive, resilient-mount, 9-speed ECM motor

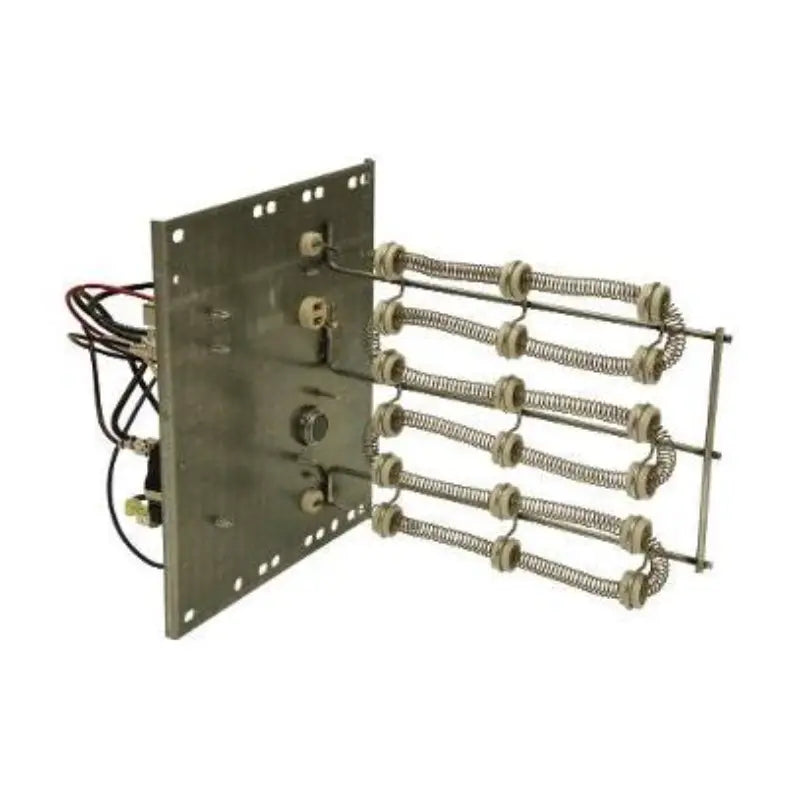

      • Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW
      • High-efficiency evaporator coil
      • Quiet operation
      • Primary/secondary drain connection in a high-temperature plastic drain pan
      • Suitable for free-return installation (non-ducted return air)
      • Galvanized-steel construction
      • Factory-installed pull-type disconnect
      • Easy service access
      • AHRI Certified
      • ETL Listed
    • Cabinet Features:
      • Rigid SmartFrame cabinet
      • Horizontal or vertical configuration capabilities
      • 21” depth for easier attic access
      • DecaBDE-free thermoplastic drain pan with secondary drain connections
      • Screw-less sides and back helps to reduce condensation when installed in humid locations
      • Foil-faced insulation covers the internal casing to reduce cabinet condensation
      • Galvanized, leather grain-embossed finish
      • Glue-less cabinet insulation retention
      • Tool-less filter access
  • Air Handler Model Number AMST30BU1300
    Tons 2.5
    Cooling Capacity Nominal 36,000 Btu/H
    Unit Depth 21 in
    Unit Height 53.4375 in
    Unit Width 17.5625 in
    Unit Weight 129 lb
    Max Overcurrent Protection 50/60 A
    Power Phase 1 Ph
    Power Voltage 208/230 V
    Cased/Uncased Cased
    Refrigerant Type R-32
    Energy Source Electric
    Motor Speed Type Nine Speed ECM
