Model: GLXS3BN2410 / CAPTA2422A3 / GD9S800403AN
Goodman 2 Ton 13.8 SEER2 AC & 80% AFUE 40K BTU Gas Furnace System, R32 Refrigerant - Downflow
Goodman 2 Ton 13.8 SEER2 AC & 80% AFUE 40K BTU Gas Furnace System, R32 Refrigerant - Downflow

Couldn't load pickup availability
Got a question? Talk with our experts anytime
Call Us at 866-718-1799
Product Details
The Goodman 2 Ton 13.8 SEER2 AC & 80% AFUE 40K BTU Gas Furnace System, R32 - Downflow is a highly efficient, durable solution for home heating and cooling, providing consistent comfort with advanced technology and easy maintenance.
Key Features of the Goodman 2 Ton 13.8 SEER2 AC:
- Energy-Efficient: Equipped with an energy-efficient compressor and copper tube/aluminum fin coil for superior performance.
- Easy Maintenance: Goodman 2 Ton 13.8 SEER2 comes fully charged for up to 15 feet of tubing and includes factory-installed filter drier and service valves.
- Long-Lasting Components: Features high-pressure switch and capacitors designed for extended life.
- Certified Performance: Moreover, AHRI Certified and ETL Listed for reliability and safety.
Cabinet Features of the Goodman 2 Ton 13.8 SEER2:
- Enhanced Airflow: The Venturi design increases airflow velocity for better efficiency.
- Durable Finish: Architectural Gray powder-coat finish with 500-hour salt-spray approval for corrosion resistance.
- Convenient Service Access: Removable grille and single-panel access for easy maintenance and control access.
Evaporator Coil - CAPTA2422A3:
- Optimized for R-32 Refrigerant: Designed to work with R-32, ensuring efficient cooling and lower environmental impact.
- Space-Saving Design: The compact 21" depth allows for easier installation in tight spaces like attics.
- Enhanced Durability: Features a UV-resistant thermoplastic drain pan and rust-resistant finish for long-term reliability.

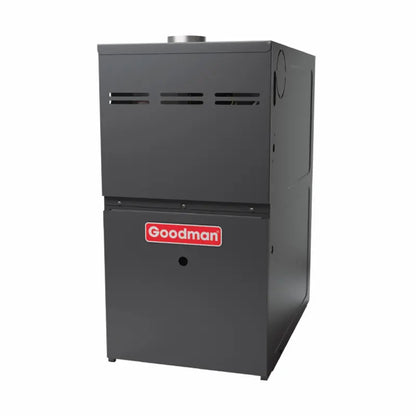

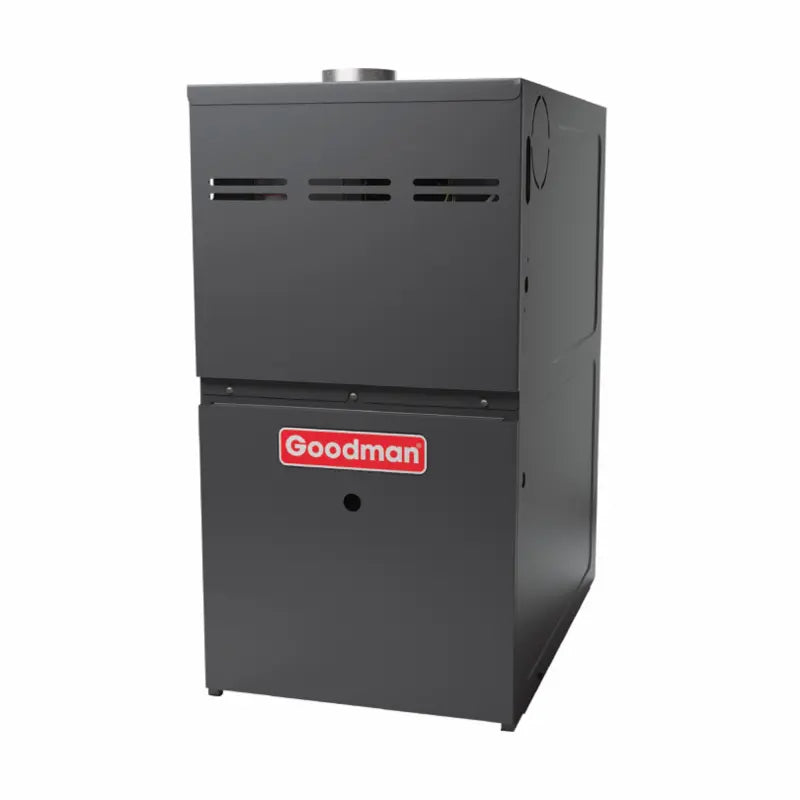

Gas Furnace - GD9S800403AN:
- Reliable Heating: Additionally, it provides efficient heating with an 80% AFUE rating, delivering consistent comfort.
- Quiet Operation: Goodman 2 Ton 13.8 SEER2 operates quietly while circulating warm air efficiently.
- Advanced Diagnostics: The self-diagnostic control board simplifies maintenance and enhances system longevity.
In summary, the Goodman 2 Ton 13.8 SEER2 AC & 80% AFUE Gas Furnace System is the ideal choice for homeowners seeking reliable, efficient, and easy-to-maintain heating and cooling. Therefore, with its advanced features and durable design, it ensures year-round comfort at a lower environmental impact
Specifications
AHRI Reference | 215277100 |
---|---|
AC Model Number | GLXS3BN2410 |
SEER 2 | 13.4 |
Tonnage | 2 |
Unit Height x Width x Depth | 27.5 x 26 x 26 in |
Unit Weight | 114 lb |
Cooling Capacity Nominal | 24,000 Btu/H |
Max Overcurrent Protection | 15A |
Power Voltage | 208/230 V |
Compressor Stages | Single Stage |
Compressor Type | Rotary |
Refrigerant Type | R-32 |
Evaporator Coil Model Number | CAPTA2422A3 |
Tonnage | 2 |
Unit Height x Width x Depth | 22 x 14 x 21 in |
Cased/Uncased | Cased |
Coil Application | Upflow/Downflow |
Refrigerant Type | R-32 |
Gas Furnace Model Number | GD9S800403AN |
Height x Width x Depth | 33-3/8 x 14 x 28 in |
Weight | 90 lb |
AFEU | 80% |
Configuration | Downflow/Horizontal |
BtuH Input | 40,000 |
BtuH Output | 32,000 |
Tons | 3 |
CFM | 1,200 |
Min. Circuit Amps | 7.7 |
Motor Type | ECM |
Stages | Single |
LoNox | Yes |
