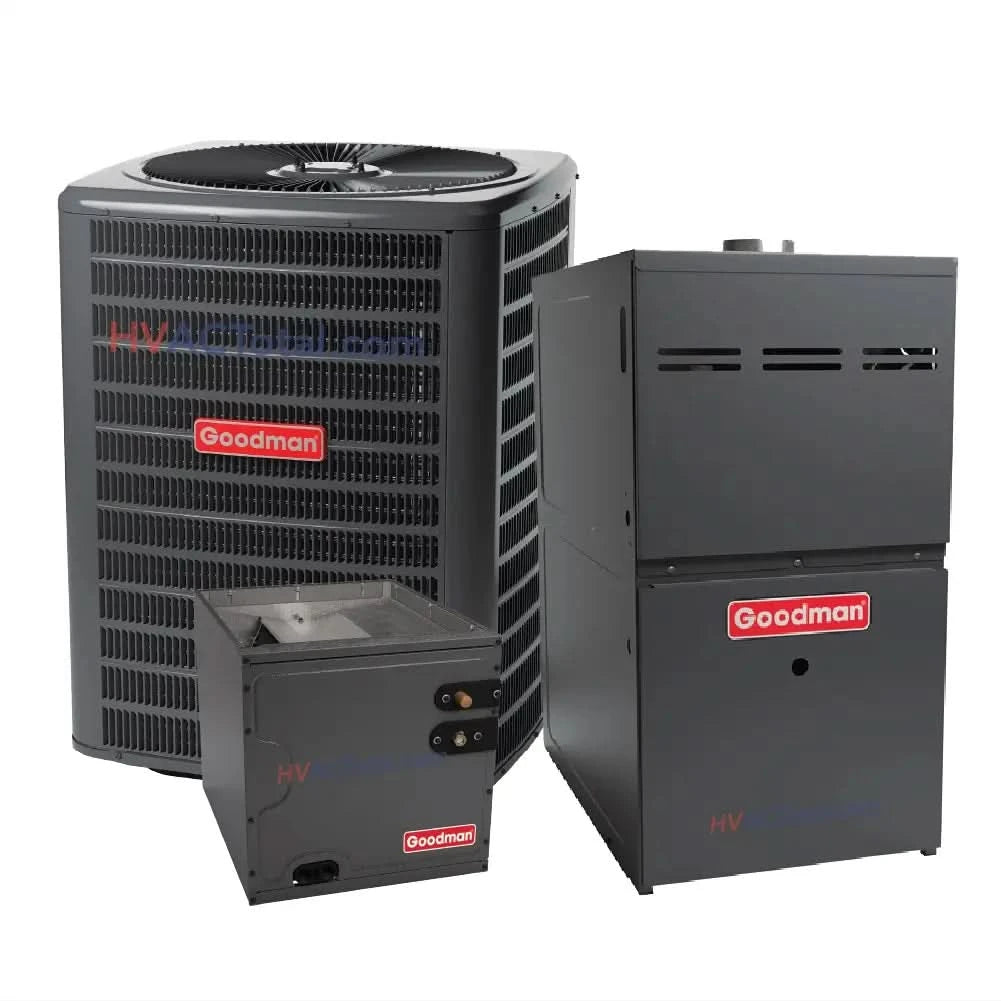

The Goodman 2 Ton 14 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System, R32 Refrigerant - Upflow combines energy efficiency and reliability to provide year-round comfort with cutting-edge features for both heating and cooling needs.
Product Features of the Goodman 2 Ton 14 SEER2 AC:
- Energy-Efficient Compressor: Furthermore, fully charged for 15' of tubing, ensuring optimal cooling with minimal energy use.
- Durable Construction: Copper tube and enhanced aluminum fin coil (5mm diameter) for maximum heat transfer.
- Maintenance-Friendly: Factory-installed filter drier, sweat connection service valves for easy access, and enclosed contactor with lug connection.
- Certified Quality: AHRI and ETL certifications for performance and safety.
Cabinet Features of the Goodman 2 Ton 14 SEER2:
- Increased Airflow Efficiency: Venturi design enhances airflow velocity.
- Corrosion Resistance: Architectural Gray powder-coat finish with 500-hour salt-spray approval.
- Easy Maintenance: Removable grille-style top with top and side access for simple service.

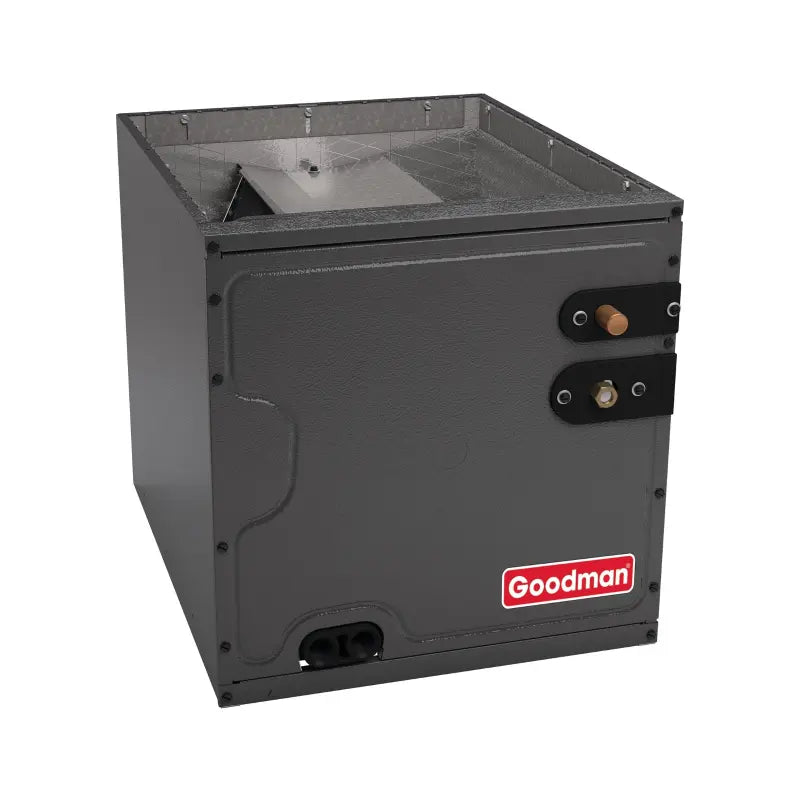

Evaporator Coil (CAPTA3022B3):
- R-32 Refrigerant Compatibility: Optimized for R-32 refrigerant with circuits and manifolds designed for maximum efficiency.
- Long-Lasting Performance: Also, R-32 sensor designed to extend the coil's lifespan.
- Efficient Drainage: Features a UV-resistant, rust-resistant, and low water-retention thermoplastic drain pan.
- Space-Efficient: Goodman 2 Ton 14 SEER2 AC 21" depth for easy attic access with a single front access panel for maintenance.
- Certified Performance: Additionally, AHRI and ETL listed for reliability and quality.

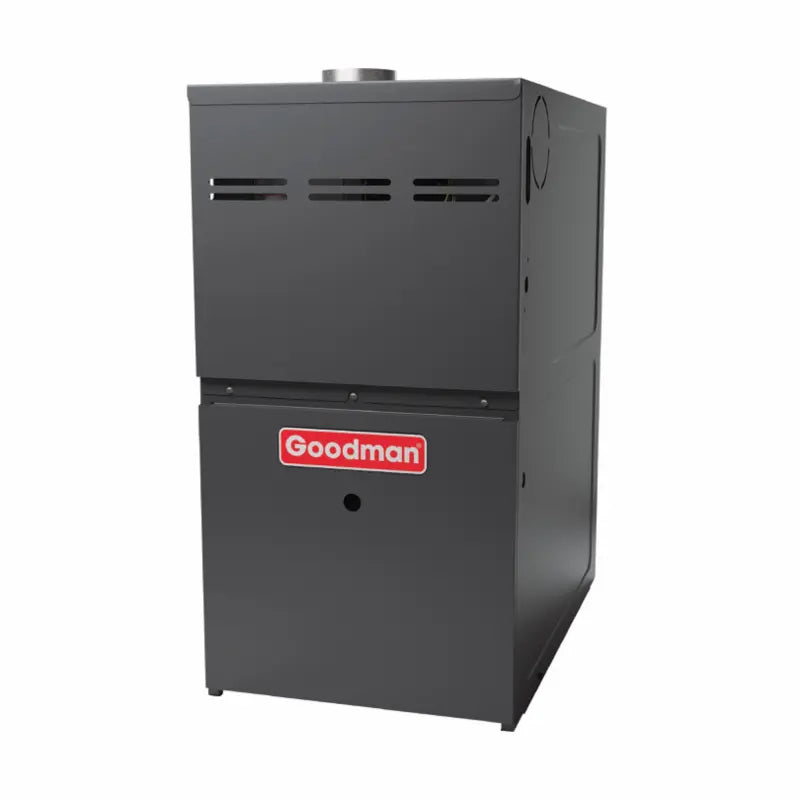

Gas Furnace (GR9S800603BN):
- High Efficiency: 80% AFUE ensures energy savings while delivering consistent warmth.
- Quiet and Efficient Heating: Designed for quieter operation and energy-efficient circulation.
- Long-Lasting Durability: Durable construction and long igniter life for dependable performance.
- Eco-Friendly: In addition, lower NOx emissions for better environmental impact.
- Convenient Controls: Self-diagnostic control board with constant memory for easier troubleshooting.
- Versatile: Operates on single-stage or two-stage thermostats, and is compatible with electronic air cleaners and humidifiers.
Cabinet Features:
- Multi-Position Installation: Suitable for upflow, horizontal left or right installation.
- Flexible Venting Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) with optional side venting.
- Efficient Design: Less than 2% air leakage (Qleak), fully insulated heat exchanger, and blower section for improved efficiency.
Therefore, the Goodman 2 Ton 14 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System, R32 Refrigerant - Upflow offers a blend of energy efficiency, ease of installation, and long-lasting reliability, making it the ideal solution for your heating and cooling needs. Overall, with its high-quality components, certification compliance, and environmentally-friendly design, this system provides comfort and savings in a reliable package.
-
AHRI Reference 215277047 AC Model Number GLXS3BN2410 SEER 2 13.4 Tonnage 2 Unit Height x Width x Depth 27.5 x 26 x 26 in Unit Weight 114 lb Cooling Capacity Nominal 24,000 Btu/H Max Overcurrent Protection 15A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Rotary Refrigerant Type R-32 Evaporator Coil Model Number CAPTA3022B3 Tonnage 2.5 Unit Height x Width x Depth 22 x 17.5 x 21 in Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GR9S800603BN Height x Width x Depth 33-3/8 x 17.5 x 28 in Weight 100 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 60,000 BtuH Output 48,000 Tons 3 CFM 1,200 Min. Circuit Amps 7.7 Motor Type ECM Stages Single LoNox No -
-
