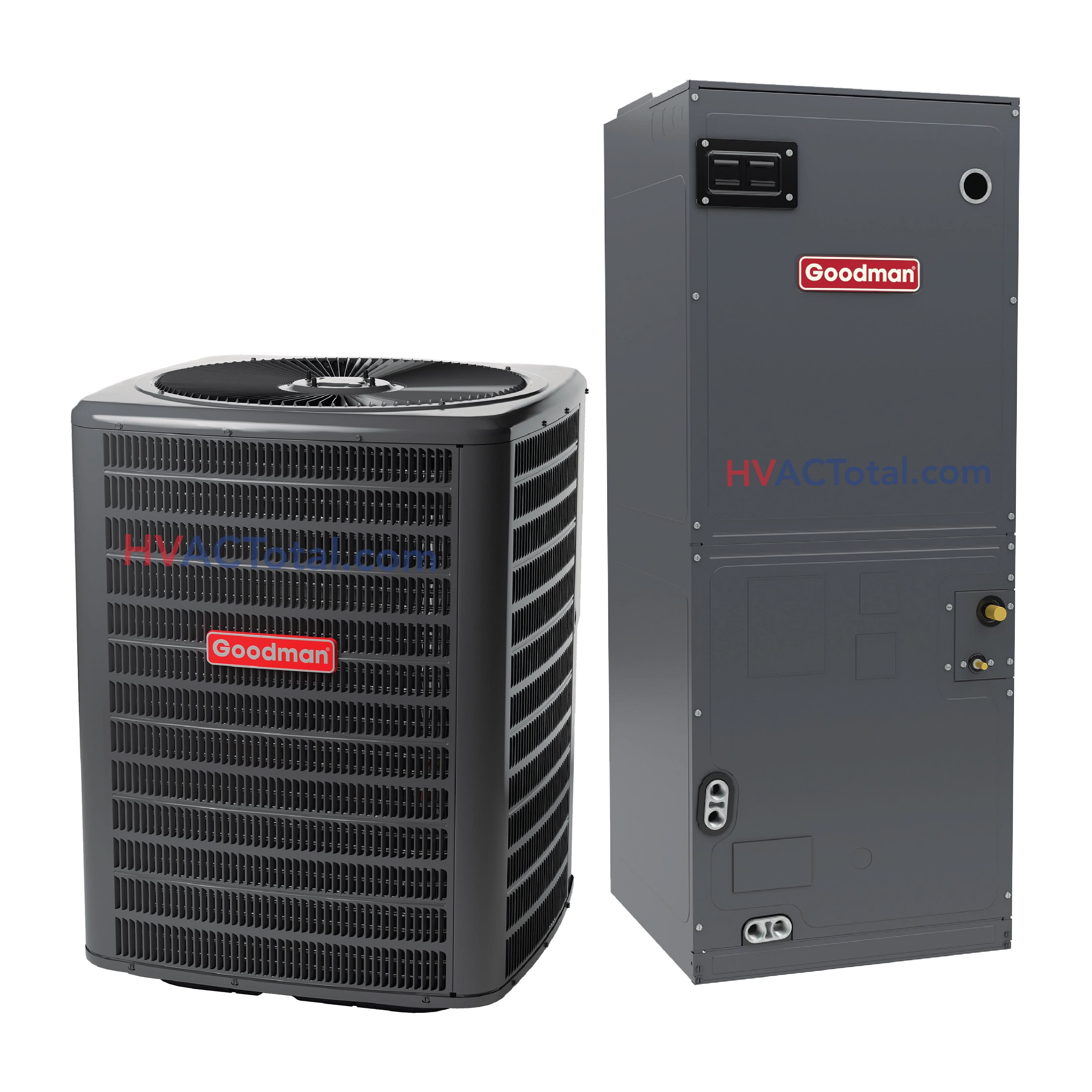

Enhance the comfort of your living space with the Goodman 2 Ton 14.5 SEER2 R32 AC Split System. Designed for optimal energy efficiency and durability, this system incorporates advanced technology and strong materials for dependable heating and cooling in your home or office.
Benefits of the 2 Ton R32 AC Split System Outdoor and Indoor Unit:

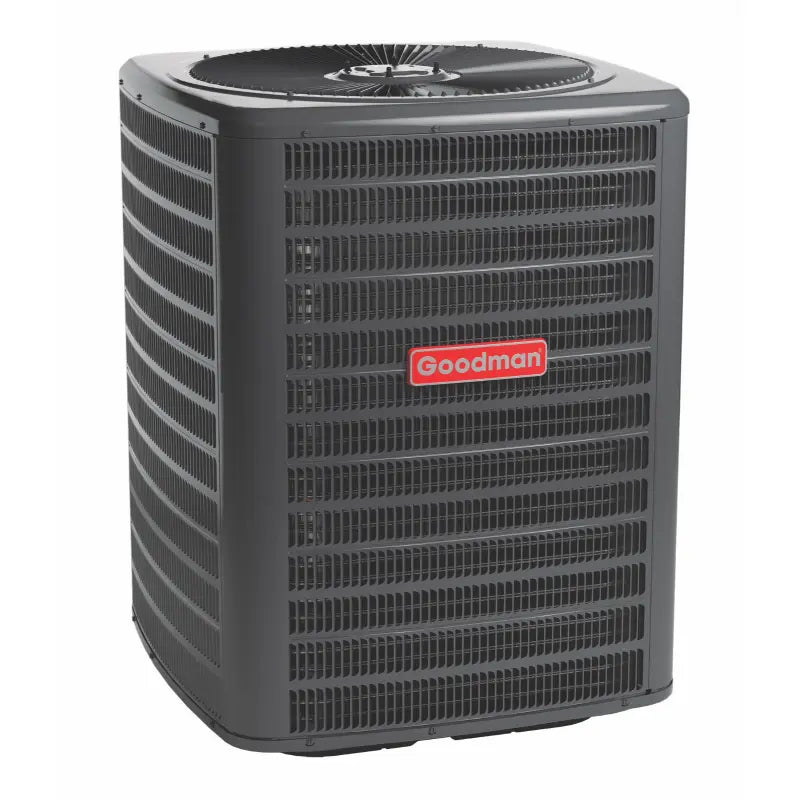

GLXS3BN2410
- Energy-Efficient Compressor: Designed to reduce energy consumption while delivering exceptional performance.
- Fully Charged for 15' of Tubing Length: Comes pre-charged, consequently making installation quicker and more convenient.
- Copper Tube & Enhanced Aluminum Fin Coil (5mm Diameter): Ensures optimal heat transfer and durability.
- Factory-Installed Filter Drier: Protects the 2 ton R32 AC split system from contaminants, thus improving its lifespan.
- Sweat Connection Service Valves: Easy access to gauge ports for efficient servicing and maintenance.
- Enclosed Contactor with Lug Connection: For enhanced reliability and durability.
- High-Pressure Switch: Provides added safety by monitoring pressure levels.
- Capacitors with Extended Life: Ensures long-lasting functionality.
- AHRI Certified & ETL Listed: The 2 ton R32 AC split system meets industry standards for performance, safety, and efficiency.
Cabinet Features:
- Removable Grille-Style Top Design: Compliant with UL 60335-2-40 for improved safety.
- Venturi for Increased Airflow Velocity: Improves overall system efficiency.
- Architectural Gray Powder Paint Finish: With 500-hour salt-spray approval for enhanced durability and weather resistance.
- Wire Fan Discharge Grille & Steel Louver Coil Guard: Protects the system components while maintaining airflow.
- Top and Side Maintenance Access: Easy access for repairs and servicing.
- Single-Panel Access to Controls: With space for field-installed accessories.

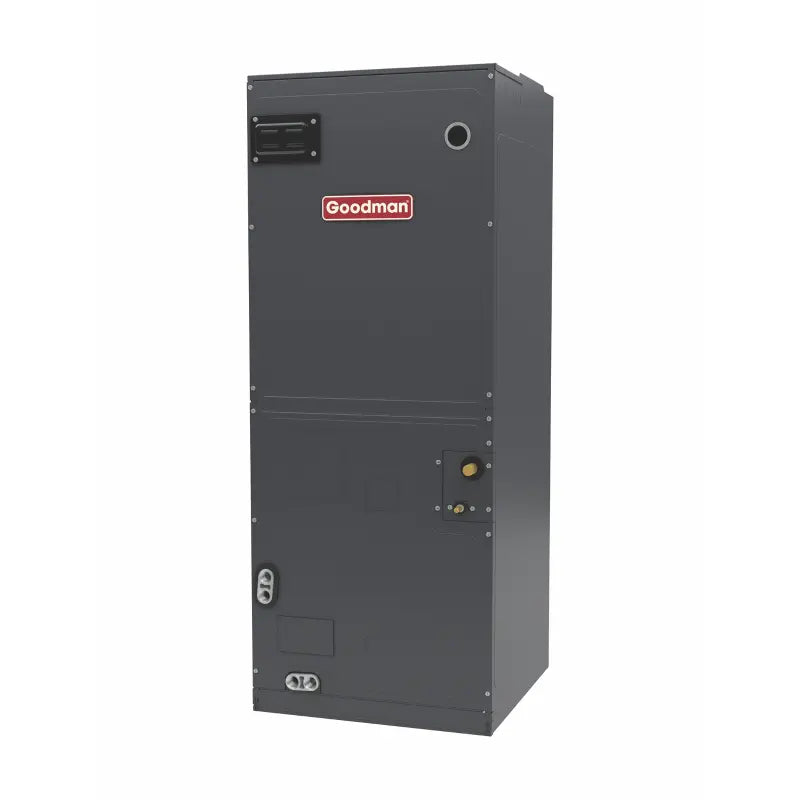

AMST30BU1300
- All-Aluminum Tube/Aluminum Fin Coil: Offers superior corrosion resistance and enhanced heat exchange.
- Direct-Drive, Resilient-Mount 9-Speed ECM Motor: Thus ensuring smooth, quiet, and efficient operation.

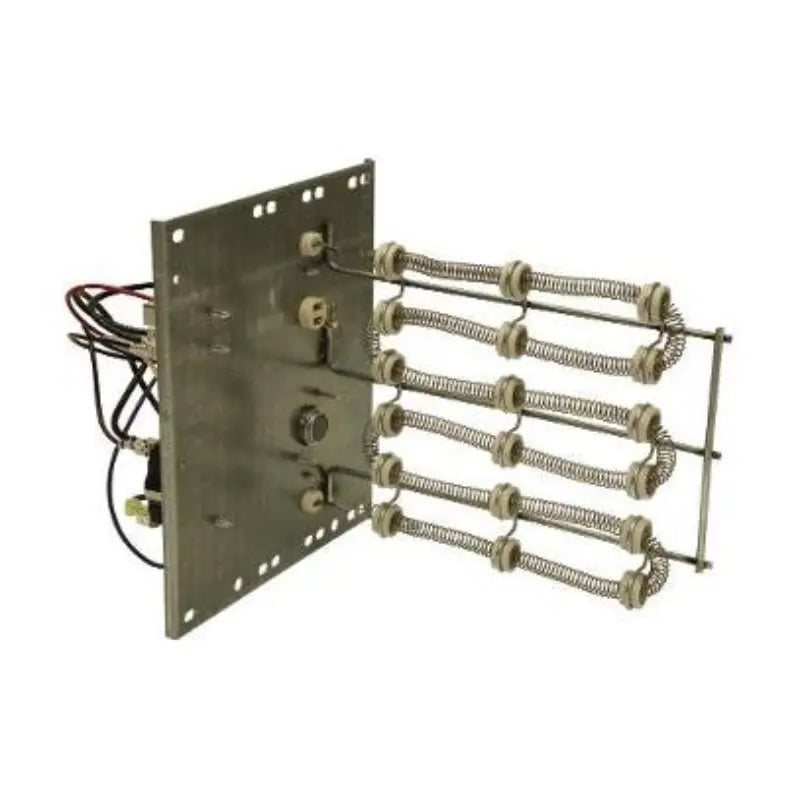

- Heating Options: Available with sequence-controlled, rust-resistant nickel-chromium heating elements (5, 6, 8, or 10 kW).
- High-Efficiency Evaporator Coil: Maximizes cooling performance while minimizing energy usage.
- Quiet Operation: Designed to operate with minimal noise for added comfort.
- Primary/Secondary Drain Connections: High-temperature plastic drain pan for reliable drainage.
- Galvanized-Steel Construction: Strong and durable for long-term use.
- Factory-Installed Pull-Type Disconnect: Easy to disconnect power when necessary.
- AHRI Certified & ETL Listed: The 2 ton R32 AC split system meets the highest standards for efficiency, safety, and performance.
Cabinet Features:
- Rigid SmartFrame Cabinet: Sturdy design that ensures long-lasting structural integrity.
- Flexible Configuration: The 2 ton R32 AC split system is suitable for both horizontal and vertical installation.
- 21” Depth for Easier Attic Access: Ideal for installations in tight spaces.
- DecaBDE-Free Thermoplastic Drain Pan: Helps prevent condensation and ensures durability.
- Screwless Sides & Back: Reduces condensation in humid environments.
- Foil-Faced Insulation: Helps minimize condensation and improves efficiency.
- Galvanized, Leather Grain-Embossed Finish: Attractive and resistant to wear.
- Tool-less Filter Access: For easy filter maintenance and replacement.
Ensure year-round reliability and temperature control with Goodman's GLXS3BN2410 (outdoor) and AMST30BU1300 (indoor) systems. These efficient Goodman 2 Ton 14.5 SEER2 R32 AC Split System provide optimal comfort without sacrificing performance.
-
AHRI 215272297 AC Model Number GLXS3BN2410 SEER2 13.4 Tons 2 BtuH Cooling 24,000 Volts 208/230 Phase Single Motor Type PSC Min. Circuit Amps 10.9 Max. Fuse Size 15 Liquid Connection 3/8" Suction Fitting 3/4" Refrigerant R-32 Width 27.5" Height 29.5" Depth 27.5" Weight (lbs.) 114 Air Handler Model Number AMST30BU1300 Unit Depth 21 in Unit Height 53.4375 Unit Width 17.5625 in Unit Weight 129 lb Cooling Capacity Nominal 36,000 Btu/H Max Overcurrent Protection 50/60 A Power Voltage 208/230 V Cased/Uncased Cased Energy Source Electric Motor Speed Type Nine Speed ECM -
-
