Model: GLXS4BA2410 / CAPTA2422B3 / GR9S800803BN
Goodman 2 Ton 15.2 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System, R32 Refrigerant - Upflow
Goodman 2 Ton 15.2 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System, R32 Refrigerant - Upflow

Couldn't load pickup availability
Got a question? Talk with our experts anytime
Call Us at 866-718-1799
Product Details
The Goodman 2 Ton 15.2 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System, R32 - Upflow offers a reliable and efficient solution for cooling and heating, combining high performance with durability and ease of maintenance.

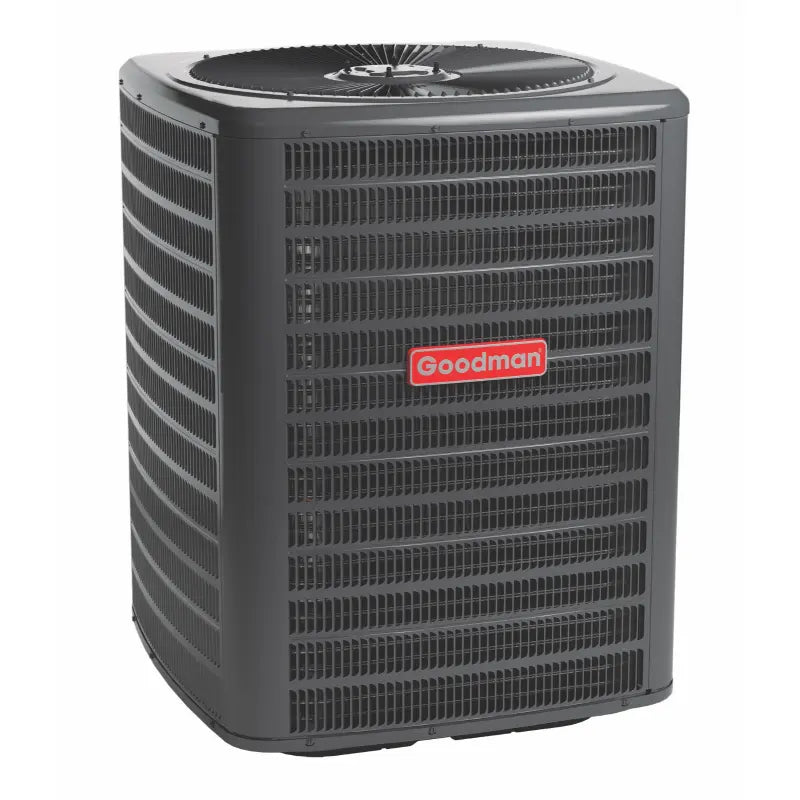

Key Features of the Goodman 2 Ton 15.2 SEER2 AC:
- Efficiency: To begin with, features an energy-efficient compressor and comes pre-charged for 15 feet of tubing.
- Durability: Copper tubing with enhanced aluminum fin coil (5mm diameter).
- Convenience: Goodman 2 Ton 15.2 SEER2 includes factory-installed filter drier and easy-access sweat connection service valves.
- Certifications: Additionally, AHRI Certified and ETL Listed for safety and reliability.
- Cabinet Design: Removable grille, venturi for optimized airflow, corrosion-resistant finish, and accessible panels for maintenance.
Evaporator Coil - CAPTA2422B3:
- High-Performance Design: All-aluminum construction optimized for R-32 refrigerant with factory-installed thermal expansion valves.
- Compact and Durable: 21-inch depth for tight-space installations, rust-resistant UV-protected drain pan, and foil-faced insulation for reduced condensation.
- Certifications: In addition, AHRI Certified and ETL Listed.
Gas Furnace - GR9S800803BN:
- Heating Efficiency: In addition, 80% AFUE rating ensures economical and consistent heating.
- Quiet and Reliable: Durable igniter, quiet blower, and self-diagnostic control board.
- Eco-Friendly: Goodman 2 Ton 15.2 SEER2 meets low NOx emission standards.
- Smart Design: Lastly, compatible with single or two-stage thermostats and provisions for air cleaners and humidifiers.
In summary, the Goodman 2 Ton 15.2 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System, R32 - Upflow is designed for year-round comfort. Its energy-efficient operation, durable construction, and versatile installation options make it a dependable choice for residential needs. Certified to AHRI and ETL standards, it ensures performance, safety, and reliability in one complete package
Specifications
AHRI Reference | 215214631 |
---|---|
AC Model Number | GLXS4BA2410 |
SEER 2 | 15.2 |
Tonnage | 2 |
Unit Height x Width x Depth | 27 x 26 x 26 in |
Unit Weight | 70 lb |
Cooling Capacity Nominal | 24,000 Btu/H |
Max Overcurrent Protection | 15A |
Power Voltage | 208/230 V |
Compressor Stages | Single Stage |
Compressor Type | Rotary |
Refrigerant Type | R-32 |
Evaporator Coil Model Number | CAPTA2422B3 |
Tonnage | 2 |
Unit Height x Width x Depth | 22 x 17.5 x 21 in |
Cased/Uncased | Cased |
Coil Application | Upflow/Downflow |
Refrigerant Type | R-32 |
Gas Furnace Model Number | GR9S800803BN |
Height x Width x Depth | 33-3/8 x 17.5 x 28 in |
Weight | 116 lb |
AFEU | 80% |
Configuration | Upflow/Horizontal |
BtuH Input | 80,000 |
BtuH Output | 64,000 |
Tons | 3 |
CFM | 1,200 |
Min. Circuit Amps | 7.7 |
Motor Type | ECM |
Stages | Single |
LoNox | No |
