Model: GLXS3BN4210 / CAPTA4230C3 / GM9S961005CN

Goodman 3.5 Ton 13.4 SEER2 AC & 96% AFUE 100,000 BTU Gas Furnace - Upflow, R32

Goodman 3.5 Ton 13.4 SEER2 AC & 96% AFUE 100,000 BTU Gas Furnace - Upflow, R32

AC & furnace combo: Pre-charged AC to 15ft w/ 21" furnace. Natural gas/propane (kit req).
Regular price $5,449.00
Regular price Sale price $5,449.00
Sale Sold out
Guaranteed Safe Checkout

Free express shipping
Ships in 1-2 business days
60 Days return policy
Expert Support.

Product Details

The Goodman 3.5 Ton 13.4 SEER2 AC & 96% AFUE 100,000 BTU Gas Furnace - Upflow, R32 (GLXS3BN4210) designed to deliver reliable cooling and heating for your home. Featuring an environmentally friendly R-32 refrigerant, durable components, and user-friendly maintenance options, this system is optimized for upflow installations and ensures year-round comfort.

Product Benefits of the Goodman 3.5 Ton 13.4 SEER2 AC:

  • Energy Efficiency: Equipped with an energy-efficient compressor for reduced cooling costs.
  • Convenience: Fully charged for 15' tubing length, simplifying installation.
  • Durable Build: Furthermore, it features copper tubing with enhanced aluminum fin coils for improved performance and longevity.
  • User-Friendly: In addition, it includes factory-installed filter drier and sweat connection service valves with easy gauge port access.
  • Reliable Components: High-pressure switch, extended-life capacitors, and enclosed contactor with lug connection.
  • Certifications: Additionally, AHRI Certified and ETL Listed for quality assurance.

Cabinet Features of the Goodman 3.5 Ton 13.4 SEER2:

  • Robust Design: Removable grille-style top and steel louver coil guard for protection and compliance with UL 60335-2-40.
  • Durable Finish: Architectural Gray powder-paint finish with 500-hour salt-spray approval.
  • Maintenance Ease: Top and side access with single-panel control access for servicing and field-installed accessories.
  • Airflow Optimization: Venturi design for increased airflow velocity.

Evaporator Coil - CAPTA4230C3:

  • Energy Efficiency: All-aluminum coil optimized for R-32 refrigerant ensures reliable performance and reduced environmental impact.
  • Durable Design: Additionally, it features a rust-resistant thermoplastic drain pan and galvanized finish.
  • Compact and Accessible: Moreover, 21" depth with a single front access panel for tight attic spaces.
  • Certifications: AHRI Certified and ETL Listed.

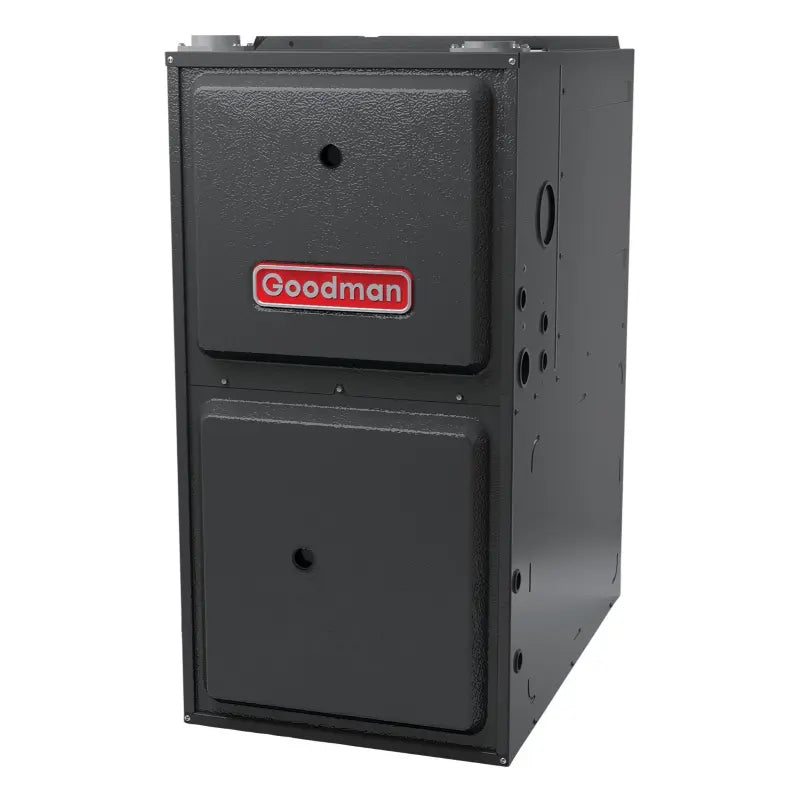

Gas Furnace - GM9S961005CN:

  • Efficiency: Also, it offers 96% AFUE for optimal heating and energy savings.
  • Reliability: Durable igniter, quiet circulation, and self-diagnostic control board with constant memory.
  • Ease of Installation: Simple setup with provisions for electronic air cleaner and humidifier.
  • Quiet Operation: Lastly, it is engineered for minimal noise and smooth performance

Therefore, the Goodman 3.5 Ton 13.4 SEER2 AC & 96% AFUE 100,000 BTU Gas Furnace is the ideal choice for homeowners seeking high performance, energy efficiency, and durability. With features designed for convenience, environmental sustainability, and reliable operation, it delivers superior comfort while minimizing maintenance and energy costs.

Specifications

AHRI Reference 215331503
AC Model Number GLXS3BN4210
SEER 2 13.4
Unit Height 35.75 in
Unit Width 29 in
Unit Depth 29 in
Unit Weight 180 lb
Cooling Capacity Nominal 42,000 Btu/H
Max Overcurrent Protection 30A
Power Voltage 208/230 V
Compressor Stages Single Stage
Compressor Type Scroll
Refrigerant Type R-32
Evaporator Coil Model Number CAPTA4230C3
Tonnage 3.5
Unit Height 30 in
Unit Width 21 in
Unit Depth 21 in
Cased/Uncased Cased
Coil Application Upflow/Downflow
Refrigerant Type R-32
Gas Furnace Model Number GM9S961005CN
AFUE 96%
Unit Height 33.375 in
Unit Width 21 in
Unit Depth 28 in
Unit Weight 140 lb
Cooling Capacity Nominal 60,000 Btu/H
Max Overcurrent Protection 25 A
Installation Configuration Upflow/Horizontal
Power Voltage 115 V
Motor Speed Type Multi Speed ECM

Warranty & Shipping

Warranty

Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a properly certified professional adhering to city, state and federal laws.

Processing Time

We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.

Equipment Arrival

Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.

Making Notes on the Delivery Receipt

If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as "Clear."

If items or boxes are missing, mark the receipt as " Short" and list the missing items. We will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."

How Do I Handle a Damaged Shipment?

If  any items are damaged, mark the receipt as "Damaged," specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company’s claims department directly to file a claim.
