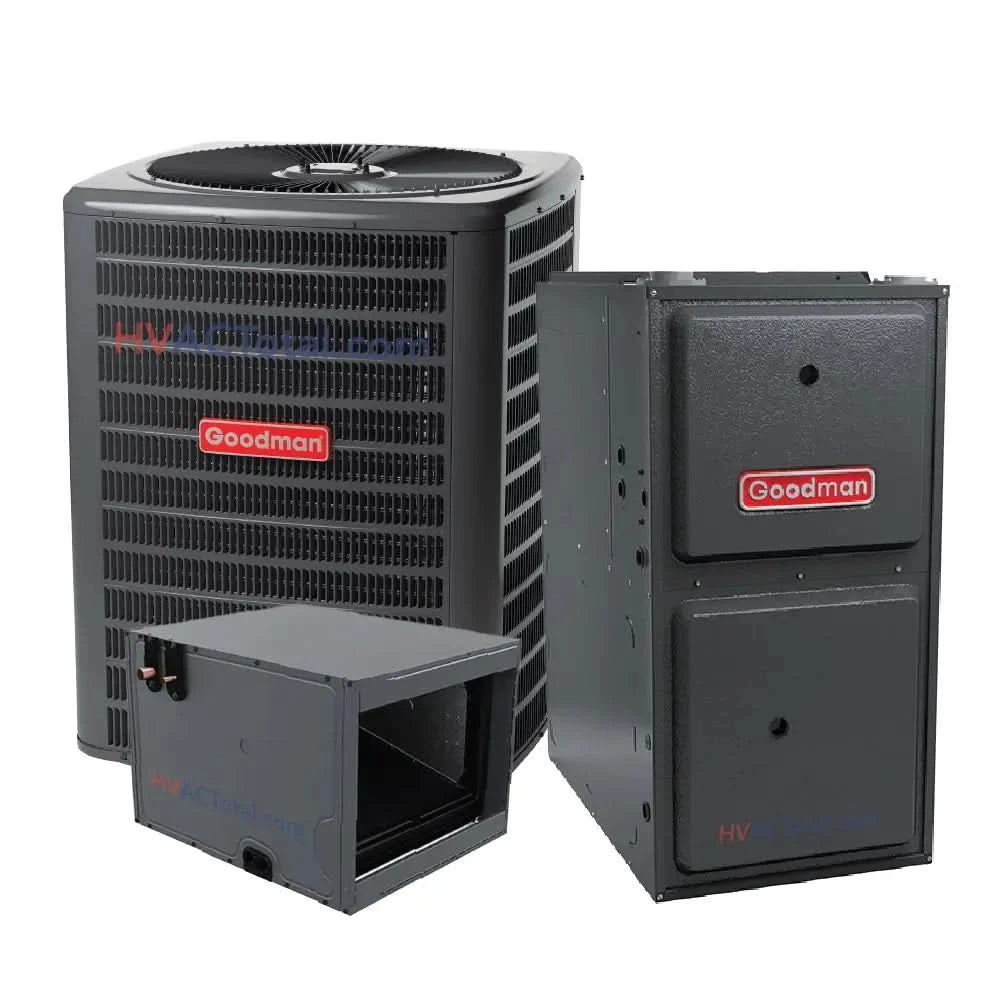

The Goodman 3.5 Ton 13.4 SEER2 AC & 96% AFUE 100K BTU Gas Furnace System, R32 Refrigerant - Horizontal (GLXS3BN4210) is an advanced heating and cooling solution designed to deliver reliable, energy-efficient performance. Utilizing environmentally friendly R-32 refrigerant, this horizontal installation system offers robust durability, easy maintenance, and versatile functionality for home comfort.

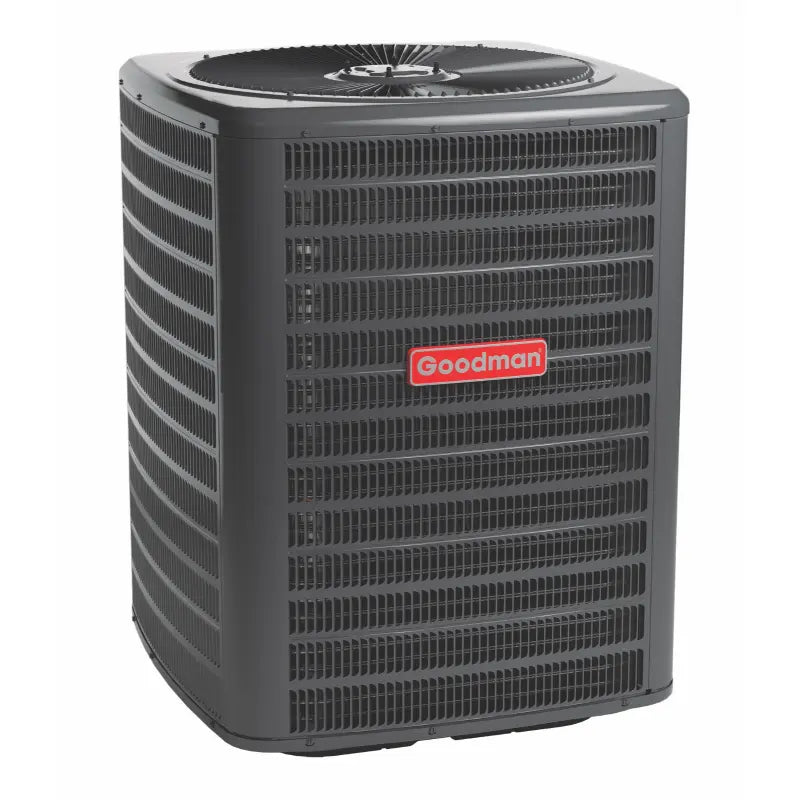

Product Benefits of the Goodman 3.5 Ton 13.4 SEER2 AC:
- Efficient Cooling: Energy-efficient compressor reduces cooling costs.
- Pre-Charged System: Fully charged for up to 15 feet of tubing length to streamline installation.
- Durable Design: Furthermore, it features copper tubing with enhanced aluminum fin coils (5mm diameter) for reliable heat transfer and longevity.
- Maintenance-Friendly: Includes a factory-installed filter drier and easily accessible sweat connection service valves.
- Enhanced Safety and Reliability: High-pressure switch and enclosed contactor with lug connection.
- Certifications: In addition, AHRI Certified and ETL Listed for performance and safety assurance.
Cabinet Features of the Goodman 3.5 Ton 13.4 SEER2:
- Sturdy and Stylish: Removable grille-style top with an Architectural Gray powder-paint finish approved for 500-hour salt spray.
- Efficient Airflow: Venturi design increases airflow velocity.
- User Convenience: Top and side maintenance access with a single-panel control for field-installed accessories.
- Protective Design: Wire fan discharge grille and steel louver coil guard for component safety.
- Flexible Configuration: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) systems.
- Adaptable Connections: Convenient left or right gas and electrical service connections.
- Low Leakage: Cabinet air leakage (Qleak) ≤ 2%.
- Return Air Options: Bottom or side return air applications for versatile installations.

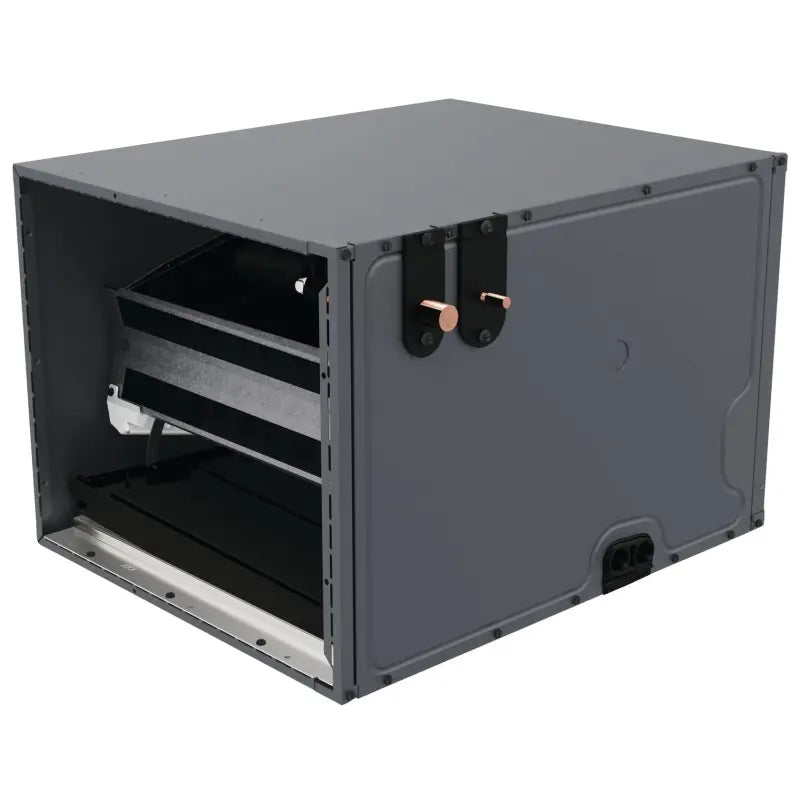

Evaporator Coil - CHPTA4230C3:
- Energy Efficiency: Optimized for R-32 refrigerant with advanced circuits and manifolds.
- Durable Construction: Rust-resistant thermoplastic drain pan with low water retention and UV resistance.
- Compact Design: Additionally, 21" depth for easier attic installation and maintenance.
- Ease of Maintenance: Factory-installed thermal expansion valves and standardized copper suction tube stub length.
- Certifications: AHRI Certified and ETL Listed for superior quality.

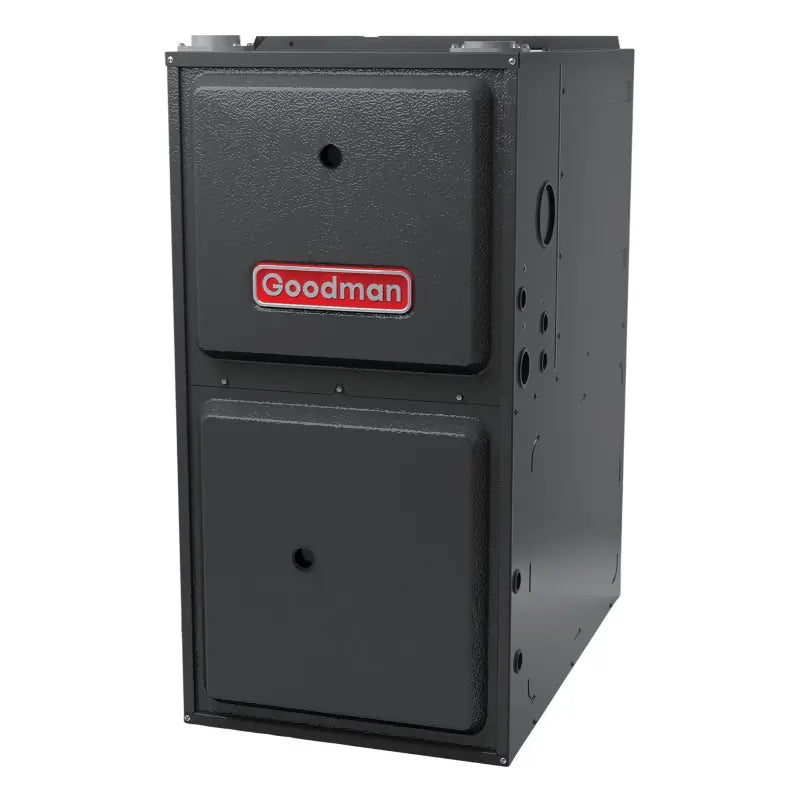

Gas Furnace - GR9S961005CN:
- High Reliability: Durable igniter and self-diagnostic control board with constant memory ensure consistent performance.
- Energy Efficiency: Also, it achieves 96% AFUE for economical heating with lower NOx emissions.
- Quiet and Versatile: Operates quietly with provisions for electronic air cleaner and humidifier integration.
- Flexible Installation: Moreover, Goodman 3.5 Ton 13.4 SEER2 supports upflow, horizontal left, or right installations.
- Robust Construction: Fully insulated heat exchanger and blower sections with a heavy-gauge steel cabinet.
- Certifications and Compliance: Lastly, AHRI Certified, ETL Listed, and eligible for tax credits.
Overall, the Goodman 3.5 Ton 13.4 SEER2 AC & 96% AFUE 100K BTU Gas Furnace System balances high performance, energy efficiency, and environmental responsibility. Its horizontal installation compatibility and advanced design make it suitable for diverse home layouts. Offering quiet operation, durable components, and straightforward maintenance, this system ensures year-round comfort while keeping energy costs low.
-
AHRI Reference 215277589 AC Model Number GLXS3BN4210 SEER 2 13.4 Tonnage 3.5 Unit Height x Width x Depth 35.75 x 29 x 29 in Unit Weight 180 lb Cooling Capacity Nominal 42,000 Btu/H Max Overcurrent Protection 30A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Scroll Refrigerant Type R-32 Evaporator Coil Model Number CHPTA4230C3 Tonnage 2.5 - 3.5 Unit Height x Width x Depth 21 x 30 x 21 in Cased/Uncased Cased Coil Application Horizontal Refrigerant Type R-32 Gas Furnace Model Number GR9S961005CN Height x Width x Depth 34.5 x 21 x 28.75 in Weight 144 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 100,000 BtuH Output 96,100 Tons 3 - 5 CFM 2,000 Min. Circuit Amps 16.7 Vent Size 2" - 3" Motor Type ECM Stages Single LoNox No -
-
