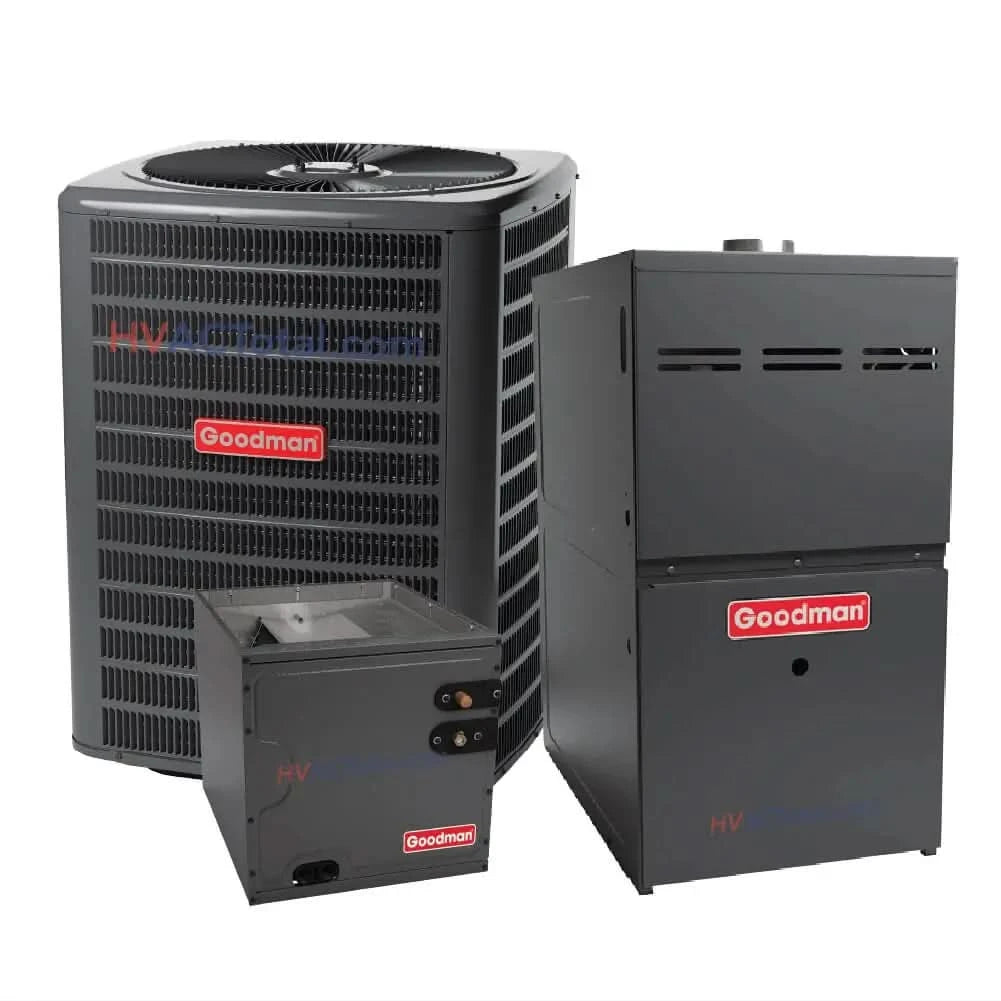

The Goodman 3.5 Ton 13.8 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System, R32 Refrigerant - Upflow (GLXS3BN4210) is engineered for efficiency and long-lasting performance. It incorporates eco-friendly R32 refrigerant for optimal comfort while reducing energy consumption.
Product Benefits of the Goodman 3.5 Ton 13.8 SEER2 AC:
- Energy-Efficient Compressor: Pre-charged for 15' of tubing length, ensuring excellent performance.
- Durability: Furthermore, it features copper tubing with an enhanced aluminum fin coil (5mm diameter) for superior heat transfer.
- Convenience: Factory-installed filter drier, high-pressure switch, and easy-access service valves simplify maintenance.
- Certifications: Additionally, AHRI Certified and ETL Listed, guaranteeing top-tier performance and safety.
Cabinet Features of the Goodman 3.5 Ton 13.8 SEER2:
- Design: Removable grille-style top compliant with UL 60335-2-40 for easy maintenance.
- Airflow: Venturi for increased velocity and efficiency.
- Durability: Architectural Gray powder-coat finish with 500-hour salt-spray approval for long-lasting exterior.
- Access: Top and side maintenance access with single-panel control access for field-installed accessories.
- Condensate Drainage: Faster condensate drainage and no leakage, ensuring optimal system performance.
- Tax Credit: Moreover, Goodman 3.5 Ton 13.8 SEER2 is eligible for tax credits.
- Installation: Multi-position installation (upflow, horizontal left or right) with certified direct venting (2-pipe) or non-direct venting (1-pipe).
- Energy-Efficiency: Quiet and energy-efficient circulation with a self-diagnostic control board and low cabinet air leakage (Qleak ≤ 2%).
Evaporator Coil - CAPFA4226B3:
- Material: Also, all-aluminum coil optimized for R32 refrigerant with thermal expansion valves for increased efficiency.
- Compact Design: 21" depth for easier attic installation with a single front access panel.
- Durability: Rust-resistant, UV-protected thermoplastic drain pan with low water retention design.
Gas Furnace - GR9S800804BN:
- Efficiency: Additionally, 80% AFUE for cost-effective heating and reduced NOx emissions.
- Reliability: Long igniter life with durable components for dependable operation.
- Versatility: Goodman 3.5 Ton 13.8 SEER2 supports single- or two-stage thermostats and integrates seamlessly with electronic air cleaners and humidifiers.
Therefore, the Goodman 3.5 Ton 13.8 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System is an ideal solution for homeowners seeking reliable and energy-efficient heating and cooling. Overall, its advanced features and eco-friendly refrigerant ensure long-term comfort and significant energy savings.
-
AHRI Reference 215277629 AC Model Number GLXS3BN4210 SEER 2 13.4 Tonnage 3.5 Unit Height x Width x Depth 35.75 x 29 x 29 in Unit Weight 180 lb Cooling Capacity Nominal 42,000 Btu/H Max Overcurrent Protection 30A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Scroll Refrigerant Type R-32 Evaporator Coil Model Number CAPTA4230C3 Tonnage 3.5 Unit Height x Width x Depth 30 x 21 x 21 in Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GR9S800804CN Height x Width x Depth 33-3/8 x 21 x 28 in Weight 132 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 80,000 BtuH Output 64,000 Tons 4 CFM 1,600 Min. Circuit Amps 11.3 Motor Type ECM Stages Single LoNox No -
-
