The Goodman 3.5 Ton 14.5 SEER2 AC & 80% AFUE 100K BTU Gas Furnace System - Downflow, R32 (GLXS4BA4210) combines efficiency, durability, and eco-friendly performance with R32 refrigerant. This system is designed to deliver long-lasting comfort, energy savings, and reliable heating and cooling for your home.
Key Features of the Goodman 3.5 Ton 14.5 SEER2 AC:
- Efficient Cooling: Pre-charged compressor for up to 15' tubing length ensures consistent performance. Copper tubing with enhanced aluminum fin coil improves heat transfer and longevity.
- Reliable Heating: Additionally, the 80% AFUE gas furnace offers cost-effective heating with durable components and reduced NOx emissions.
- Convenient Maintenance: Factory-installed filter drier, high-pressure switch, and sweat connection service valves simplify service tasks.
- Certified Quality: Furthermore, Goodman 3.5 Ton 14.5 SEER2 is AHRI Certified and ETL Listed for safety, performance, and energy efficiency.
Cabinet & Design Highlights of the Goodman 3.5 Ton 14.5 SEER2:
- Innovative Design: Removable grille-style top for easy access, complying with UL standards.
- Optimized Airflow: Venturi system enhances airflow velocity for better performance.
- Weather Resistance: Durable powder-coated finish withstands harsh conditions, meeting 2023 Florida hurricane standards when anchored.
- Ease of Installation: Moreover, multi-position configurations (upflow, horizontal left/right) and direct or non-direct venting ensure versatility.
Evaporator Coil - CHPTA4230C3:
- All-aluminum design optimized for R32 refrigerant ensures compatibility and reliability.
- Compact 21" depth allows for easier attic access, with single front panel for quick installation.
- In addition, UV-resistant, low water-retention drain pan for enhanced durability.

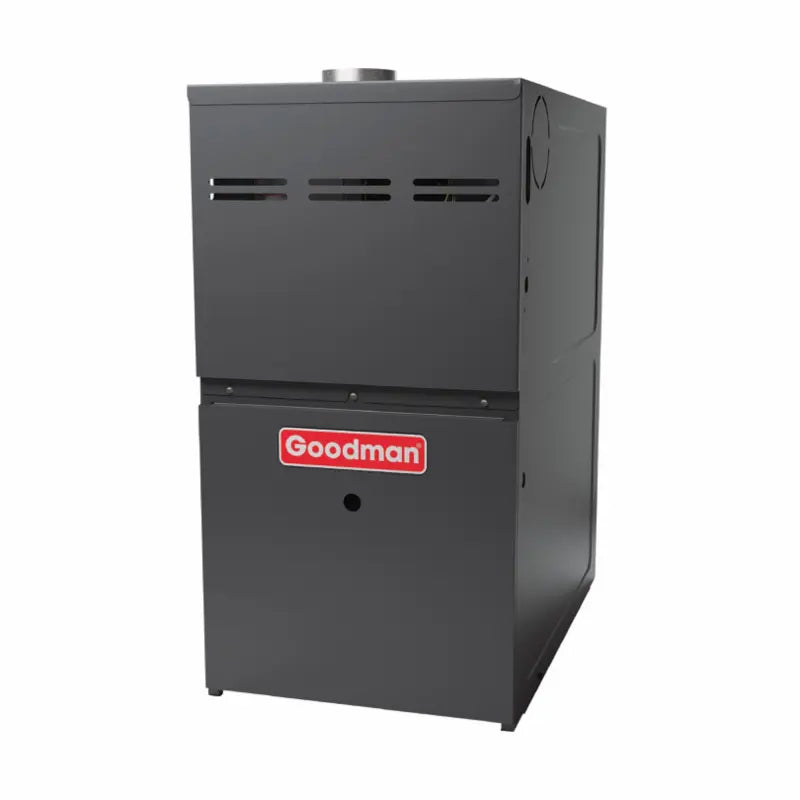

Gas Furnace - GR9T801005CN:
- Also, Goodman 3.5 Ton 14.5 SEER2 - 80% AFUE rating offers economical heating while minimizing energy costs.
- Self-diagnostic control board and durable igniter enhance reliability.
- Compatible with single- or two-stage thermostats and provisions for air cleaners and humidifiers.
Overall, the Goodman 3.5 Ton 14.5 SEER2 AC & 80% AFUE 100K BTU Gas Furnace System is a dependable and efficient choice for heating and cooling. Therefore, its eco-friendly design, flexible installation options, and durable components make it ideal for homeowners seeking long-term comfort and performance.
-
AHRI Reference 214859942 AC Model Number GLXS4BA4210 SEER 2 14.3 Tonnage 3.5 Unit Height x Width x Depth 35.75 x 35.5 x 35.5 in Unit Weight 210 lb Cooling Capacity Nominal 42,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 18.95 Max Fuse Size 30 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA4230C3 Tonnage 3.5 Unit Height x Width x Depth 21 x 30 x 21 in Unit Weight 70 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9T801005CN Height x Width x Depth 33-3/8 x 21 x 28 in Weight 124 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 100,000 BtuH Output 80,000 Tons 2 - 5 CFM 2,000 Min. Circuit Amps 14.3 Motor Type ECM Stages Two LoNox No -
-
