The Goodman 3.5 Ton 14.5 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System - Horizontal, R32 (GLXS4BA4210) delivers reliable, efficient heating and cooling with eco-friendly R32 refrigerant. Engineered for durability and comfort, it offers long-term energy savings and superior performance for your home.
Key Features of the Goodman 3.5 Ton 14.5 SEER2 AC:
- Energy-Efficient Compressor: Pre-charged for up to 15' tubing length for optimal cooling performance.
- Durable Components: Copper tubing with enhanced aluminum fin coil (5mm diameter) ensures reliable heat transfer.
- Simplified Maintenance: Furthermore, it features include a factory-installed filter drier, high-pressure switch, and sweat connection service valves.
- Certifications: In addition, AHRI Certified and ETL Listed, meeting high safety and quality standards.
Cabinet Design of the Goodman 3.5 Ton 14.5 SEER2:
- Innovative Top Design: Removable grille-style top complies with UL 60335-2-40 standards for accessibility.
- Enhanced Airflow: Venturi system boosts airflow velocity for improved efficiency.
- Weather-Resistant Finish: Architectural Gray powder coat withstands harsh conditions, meeting Florida hurricane wind codes when anchored.
- Ease of Access: Top and side panels allow for straightforward maintenance, with space for accessories.
Evaporator Coil - CHPTA4230C3:
- Optimized for R32 Refrigerant: All-aluminum design ensures compatibility and efficient performance.
- Compact Design: Moreover, Goodman 3.5 Ton 14.5 SEER2 is 21" depth and single front panel allow easy attic access and installation.
- Durable Drain Pan: UV-resistant thermoplastic pan minimizes water retention and includes secondary drain connections for reliability.

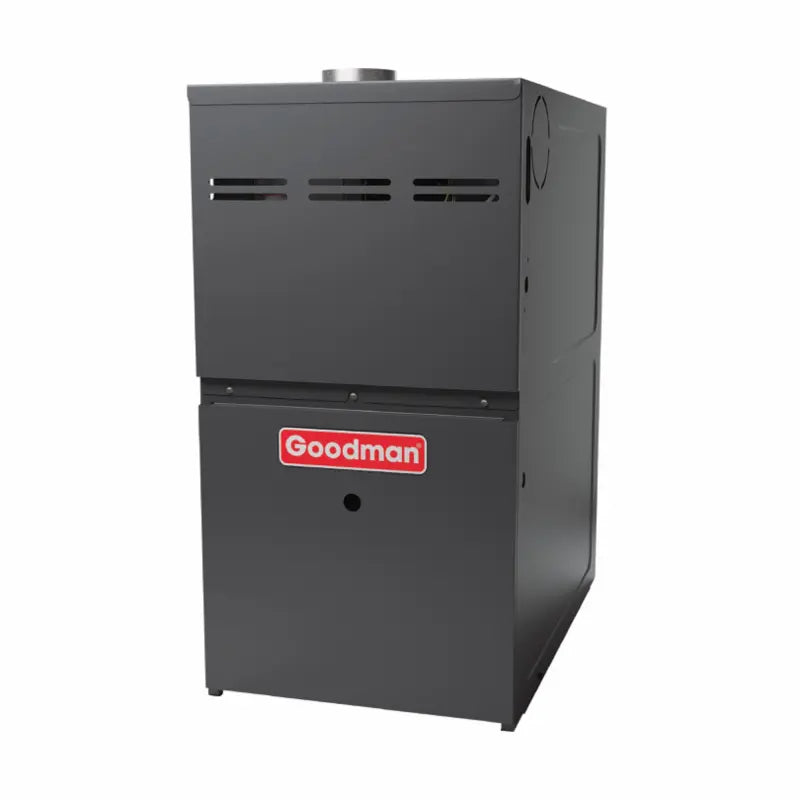

Gas Furnace - GR9S800804CN:
- Heating Efficiency: Additionally, an 80% AFUE rating ensures cost-effective heating with lower energy consumption.
- Quiet Operation: Low NOx emissions and efficient airflow deliver consistent and quiet heating.
- Reliable Construction: Features durable components, self-diagnostics, and a long-life igniter.
- Flexible Installation: Multi-position setup (horizontal, left, or right) with direct or non-direct venting options.
- Certifications: AHRI Certified, ETL Listed, and eligible for energy tax credits.
Overall, the Goodman 3.5 Ton 14.5 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System is a durable and energy-efficient solution for heating and cooling. With advanced features, eco-friendly refrigerant, and a versatile design, this system is ideal for homeowners seeking comfort and reliability.
-
AHRI Reference 214860001 AC Model Number GLXS4BA4210 SEER 2 14.3 Tonnage 3.5 Unit Height x Width x Depth 35.75 x 35.5 x 35.5 in Unit Weight 210 lb Cooling Capacity Nominal 42,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 18.95 Max Fuse Size 30 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA4230C3 Tonnage 3.5 Unit Height x Width x Depth 21 x 30 x 21 in Unit Weight 70 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9S800804CN Height x Width x Depth 33-3/8 x 21 x 28 in Weight 132 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 80,000 BtuH Output 64,000 Tons 4 CFM 1,600 Min. Circuit Amps 11.3 Motor Type ECM Stages Single LoNox No -
-
