The Goodman 3.5 Ton 14.5 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System - Horizontal, R32 (GLXS4BA4210) offers reliable heating and cooling with energy efficiency and durable components. Engineered for eco-friendly performance, this system ensures long-lasting comfort and savings.
Key Features of the Goodman 3.5 Ton 14.5 SEER2 AC:
- Energy-Efficient Compressor: Fully charged for up to 15' tubing length, providing consistent cooling.
- Durable Build: Copper tubing and enhanced 5mm aluminum fin coil for superior heat transfer and reliability.
- Ease of Maintenance: Moreover, it includes factory-installed filter drier, high-pressure switch, sweat connection service valves, and enclosed contactor.
- Certifications: AHRI Certified and ETL Listed for safety and performance standards.
Cabinet Features of the Goodman 3.5 Ton 14.5 SEER2:
- Innovative Design: Removable grille-style top complies with UL 60335-2-40 standards.
- Enhanced Airflow: Furthermore, venturi system boosts airflow velocity for efficiency.
- Weather Resistance: Architectural Gray powder-paint finish with 500-hour salt-spray approval. Meets 2023 Florida Building Code for hurricane-type winds when anchored.
- Accessible Maintenance: Top and side access with space for field-installed accessories.
- Multi-position installation (upflow, horizontal left/right).
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe).
- Easy top venting with optional side vent.
- Heavy-gauge steel cabinet with durable finish.
CHPTA4230C3 - Evaporator Coil:
- Optimized for R32 Refrigerant: Aluminum coil with circuits and manifolds tailored for R32 compatibility.
- Compact Design: Also, Goodman 3.5 Ton 14.5 SEER2 is 21" depth and single front access panel for easier installation.
- Durable Components: In addition, UV-resistant, low-water retention thermoplastic drain pan with secondary connections for reliability.
- Certifications: AHRI Certified and ETL Listed for dependable performance.

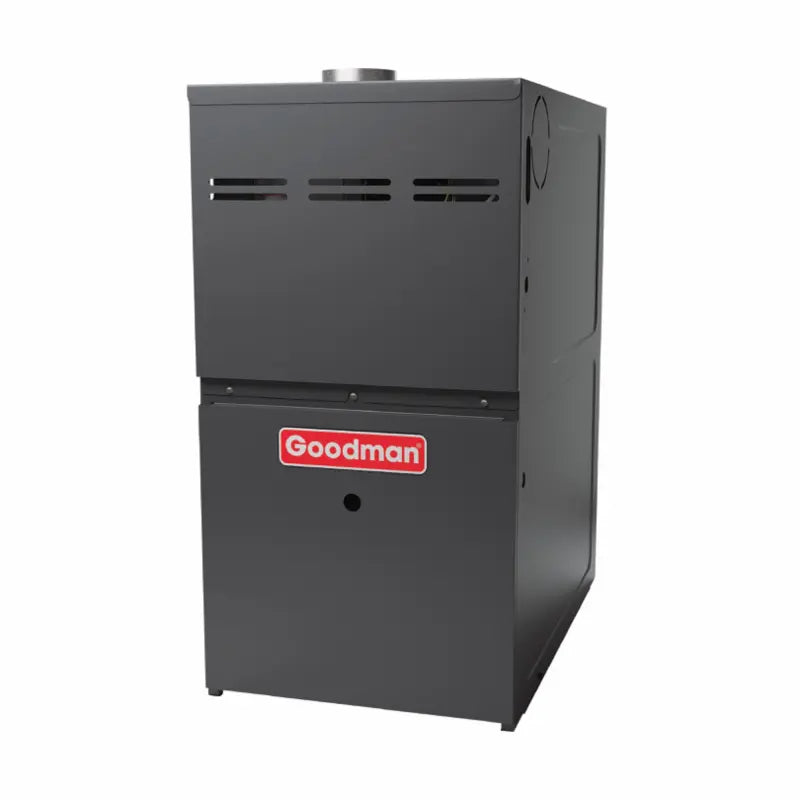

GR9T800805CN - Gas Furnace:
- Efficient Heating: Additionally, 80% AFUE rating ensures cost-effective and reliable warmth.
- Quiet Performance: Reduced NOx emissions and quiet circulation for consistent operation.
- Reliable Construction: Long-lasting igniter and faster condensate drainage minimize maintenance needs.
- Flexible Installation: Multi-position options (horizontal, upflow) with direct or non-direct venting.
- Certifications: Lastly, AHRI Certified, ETL Listed, and eligible for tax credits.
Overall, the Goodman 3.5 Ton 14.5 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System combines energy efficiency, eco-friendly R32 refrigerant, and durable design. Therefore, with versatile installation options and advanced features, it delivers dependable comfort and long-term savings for your home.
-
AHRI Reference 214859945 AC Model Number GLXS4BA4210 SEER 2 14.3 Tonnage 3.5 Unit Height x Width x Depth 35.75 x 35.5 x 35.5 in Unit Weight 210 lb Cooling Capacity Nominal 42,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 18.95 Max Fuse Size 30 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA4230C3 Tonnage 3.5 Unit Height x Width x Depth 21 x 30 x 21 in Unit Weight 70 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9T800805CN Height x Width x Depth 33-3/8 x 21 x 28 in Weight 129 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 80,000 BtuH Output 64,000 Tons 2.5 - 5 CFM 2,000 Min. Circuit Amps 14.3 Motor Type ECM Stages Two LoNox No -
-
