The Goodman 3.5 Ton 14.5 SEER2 AC & 92% AFUE 100K BTU Gas Furnace System - Horizontal, R32 (GLXS4BA4210) combines exceptional heating and cooling efficiency with eco-friendly R32 refrigerant and a durable design. Ideal for homeowners seeking year-round comfort, it delivers dependable performance and energy savings.
Key Features of the Goodman 3.5 Ton 14.5 SEER2 AC:
- Energy Efficiency: Fully charged compressor for up to 15' tubing length ensures consistent cooling.
- Durable Construction: Copper tubing and enhanced 5mm aluminum fin coil optimize heat transfer and reliability.
- Maintenance Ease: In addition, it includes factory-installed filter drier, high-pressure switch, and sweat connection service valves.
- Certifications: AHRI Certified and ETL Listed for safety and performance.
Cabinet Features of the Goodman 3.5 Ton 14.5 SEER2:
- Removable Grille Design: Compliant with UL 60335-2-40 standards for improved access and maintenance.
- Enhanced Airflow: Venturi system increases airflow velocity for optimal performance.
- Weather-Resistant Finish: Architectural Gray powder-paint finish with 500-hour salt-spray approval.
- Hurricane-Ready: Moreover, it meets 2023 Florida Building Code for hurricane-type winds when properly anchored.
- User-Friendly Access: Top and side maintenance panels with space for field-installed accessories.
- Multi-position installation (horizontal left/right, upflow).
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe).
- Easy venting and versatile gas/electrical connections.
- Heavy-gauge steel cabinet with fully insulated heat exchanger and blower section.
CHPTA4230C3 - Evaporator Coil:
- R32 Refrigerant Optimization: Designed for compatibility with R32 refrigerant, including advanced circuits and manifolds.
- Compact and Durable: Also, Goodman 3.5 Ton 14.5 SEER2 is 21" depth for easy attic access and UV-resistant, low-water retention drain pan.
- Effortless Maintenance: Single front access panel and drain pan rails for easy coil removal and repositioning.
- Certifications: Additionally,AHRI Certified and ETL Listed for performance assurance.

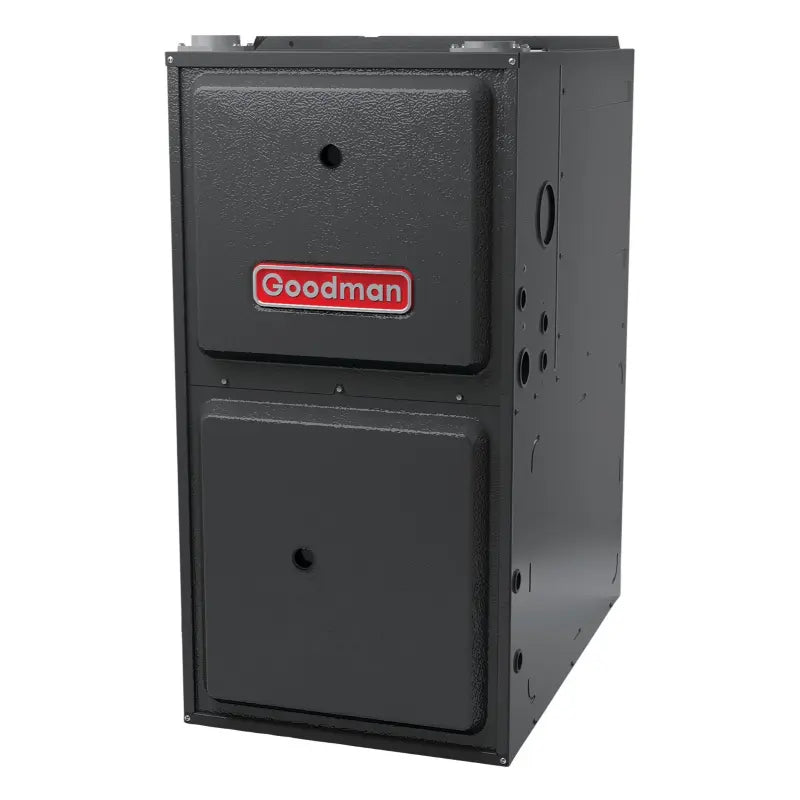

GR9S921004CN - Gas Furnace:
- High Efficiency: Furthermore, 92% AFUE ensures economical and effective heating.
- Quiet and Reliable: Low NOx emissions and quiet circulation enhance comfort.
- Durable Performance: Long igniter life and faster condensate drainage reduce maintenance needs.
- Flexible Installation: Compatible with two-stage or single-stage thermostats, with provisions for electronic air cleaners and humidifiers.
- Certifications & Incentives: Lastly, AHRI Certified, ETL Listed, and tax-credit eligible.
Therefore, the Goodman 3.5 Ton 14.5 SEER2 AC & 92% AFUE 100K BTU Gas Furnace System offers reliable, energy-efficient heating and cooling. Overall, with a robust build, eco-friendly refrigerant, and versatile installation options, it is designed to deliver comfort and long-term savings for your home.
-
AHRI Reference 214859977 AC Model Number GLXS4BA4210 SEER 2 14.3 Tonnage 3.5 Unit Height x Width x Depth 35.75 x 35.5 x 35.5 in Unit Weight 210 lb Cooling Capacity Nominal 42,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 18.95 Max Fuse Size 30 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA4230C3 Tonnage 3.5 Unit Height x Width x Depth 21 x 30 x 21 in Unit Weight 70 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9S921004CN Height x Width x Depth 34.5 x 21 x 28.75 in Weight 141 lb AFEU 92% Configuration Upflow/Horizontal BtuH Input 100,000 BtuH Output 92,100 Tons 3 - 5 CFM 1,600 Min. Circuit Amps 13.7 Vent Size 2" - 3" Motor Type ECM Stages Single LoNox No -
-
