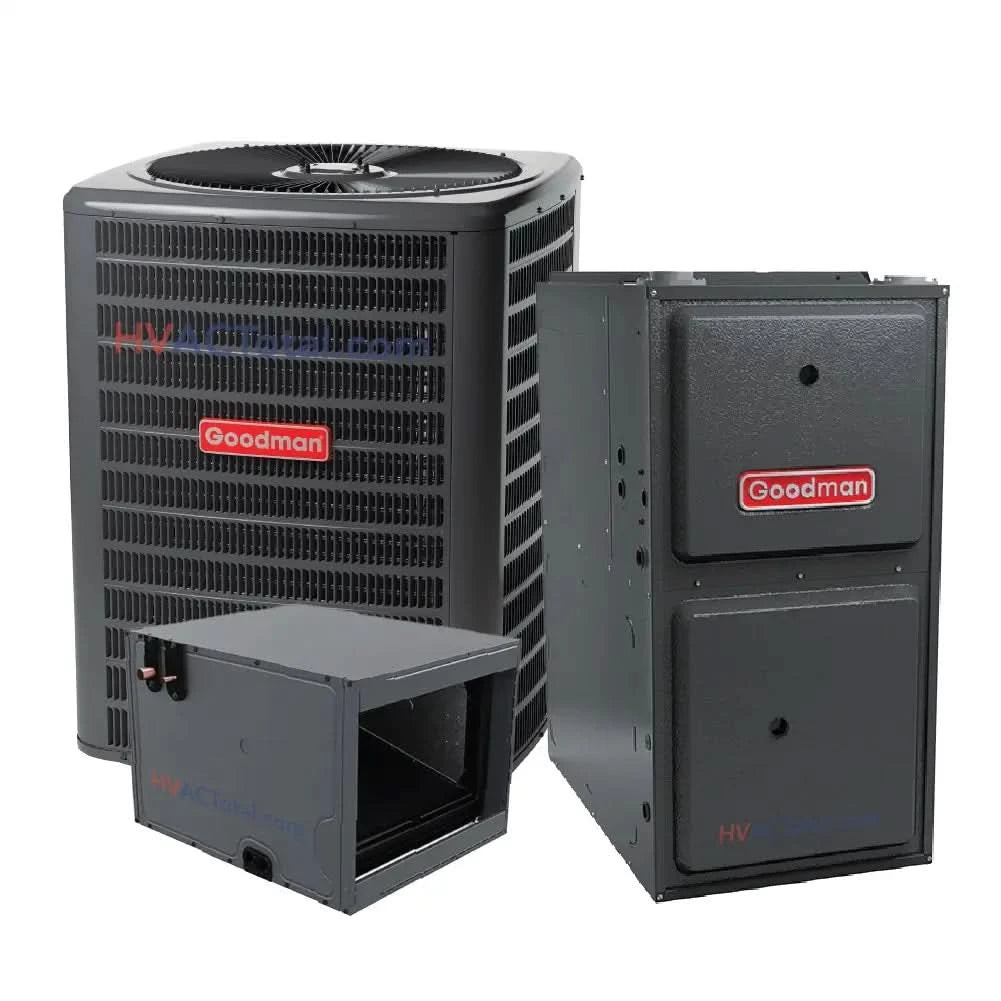

The Goodman 3.5 Ton 14.5 SEER2 AC & 92% AFUE 100K BTU Gas Furnace System - Horizontal, R32 (GLXS4BA4210) offers a high-performance, energy-efficient solution for heating and cooling your home. Designed with durable materials and eco-friendly R32 refrigerant, it provides reliable operation and cost-effective comfort year-round.
Key Features of the Goodman 3.5 Ton 14.5 SEER2 AC:
- Energy-Efficient Compressor: To begin with, pre-charged for 15 feet of tubing length to ensure consistent performance.
- Enhanced Design: Copper tubing with a 5mm enhanced aluminum fin coil optimizes cooling efficiency.
- Maintenance Simplified: Also, it includes factory-installed filter drier and easy-access service valves.
- Durable Build: Powder-coated cabinet resists corrosion with a 500-hour salt-spray approval.
- Certifications: Furthermore, AHRI Certified and ETL Listed for safety and efficiency.
Cabinet Highlights of the Goodman 3.5 Ton 14.5 SEER2:
- Removable Grille Design: UL 60335-2-40 compliant for effortless maintenance.
- Hurricane-Ready: Meets Florida Building Code standards for hurricane wind resistance when properly anchored.
- Improved Airflow: Venturi design ensures increased airflow velocity.
- User-Friendly Access: Single-panel access with space for additional accessories.
- Versatile Installation: Moreover, multi-position options (horizontal left/right, upflow).
- Durable Construction: Heavy-gauge steel cabinet with full insulation for noise and heat control.
- Convenient Connections: Left or right gas/electrical service and easy top or side venting.
- Certifications: In addition, AHRI Certified, ETL Listed, and eligible for tax credits.
CHPTA4230C3 - Evaporator Coil:
- R32 Compatibility: Tailored for eco-friendly refrigerant with advanced circuits and manifolds.
- Compact Design: Goodman 3.5 Ton 14.5 SEER2 is 21-inch depth ensures easy attic access and versatility in installation.
- Durable Materials: Rust-resistant, UV-protected thermoplastic drain pan with secondary drain connections.
- Ease of Use: Single front access panel and rails for simplified coil maintenance.
- Certifications: AHRI Certified and ETL Listed.
GR9S921005CN - Gas Furnace:
- High Heating Efficiency: Additionally, 92% AFUE for effective and economical heating.
- Reliable Operation: Long igniter life and rapid condensate drainage minimize upkeep.
- Quiet and Clean: Quiet circulation and low NOx emissions for eco-friendly performance.
- Advanced Diagnostics: Self-diagnostic control board with constant memory simplifies troubleshooting.
- Flexible Thermostat Compatibility: Lastly, it works with two-stage or single-stage thermostats.
In conclusion, the Goodman 3.5 Ton 14.5 SEER2 AC & 92% AFUE 100K BTU Gas Furnace System is a reliable and efficient heating and cooling solution. Therefore, its robust design, eco-friendly features, and versatile installation options make it an excellent choice for homeowners seeking comfort and long-term value
-
AHRI Reference 214859973 AC Model Number GLXS4BA4210 SEER 2 14.3 Tonnage 3.5 Unit Height x Width x Depth 35.75 x 35.5 x 35.5 in Unit Weight 210 lb Cooling Capacity Nominal 42,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 18.95 Max Fuse Size 30 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA4230C3 Tonnage 3.5 Unit Height x Width x Depth 21 x 30 x 21 in Unit Weight 70 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9S921005CN Height x Width x Depth 34.5 x 21 x 28.75 in Weight 141 lb AFEU 92% Configuration Upflow/Horizontal BtuH Input 100,000 BtuH Output 92,100 Tons 3 - 5 CFM 2,000 Min. Circuit Amps 16.7 Vent Size 2" - 3" Motor Type ECM Stages Single LoNox No -
-
