The Goodman 3.5 Ton 14.5 SEER2 AC & 96% AFUE 80K BTU Gas Furnace System - Horizontal, R32 delivers exceptional performance and energy savings, combining reliable cooling and heating for year-round comfort. This unit is optimized for efficiency and longevity, ensuring maximum comfort while reducing energy consumption.
Key Features of the Goodman 3.5 Ton 14.5 SEER2 AC:
- Energy-Efficient Compressor: Fully pre-charged for 15' of tubing length to reduce setup time.
- Copper & Aluminum Coil: Furthermore, it features 5mm copper tubes and enhanced aluminum fins for better heat transfer.
- Factory-Installed Filter Drier: Improves system cleanliness and efficiency.
- Easy Access Service Valves: Sweat connection service valves with easy-to-use gauge ports.
- Long-Lasting Capacitors & High-Pressure Switch: Also, it enhances system durability and reliability.
- Certifications: AHRI Certified and ETL Listed for compliance with industry standards.
Cabinet Features of the Goodman 3.5 Ton 14.5 SEER2:
- Removable Grille-Style Top: Compliant with UL 60335-2-40 for easy access and maintenance.
- Venturi Airflow Design: In addition, it increases airflow velocity for improved performance.
- Architectural Gray Finish: Durable, attractive powder-coat with 500-hour salt-spray approval.
- Maintenance Access: Top and side access for simplified servicing.
- Hurricane-Ready Design: Meets the 2023 Florida Building Code when properly anchored for hurricane-type winds.
Evaporator Coil - CHPTA4230C3:
- All-Aluminum Coil Design: Durable and corrosion-resistant.
- Optimized for R-32 Refrigerant: Designed to work with R-32 refrigerant for improved efficiency.
- Factory-Installed Thermal Expansion Valves: Pre-installed for cooling and heat pump applications.
- Efficient Installation: Goodman 3.5 Ton 14.5 SEER2 is 21" depth for easier attic access with a single front access panel.
- Low Water-Retention Drain Pan: Thermoplastic UV-resistant drain pan with secondary connections.
- Certifications: AHRI Certified and ETL Listed for guaranteed performance and safety.

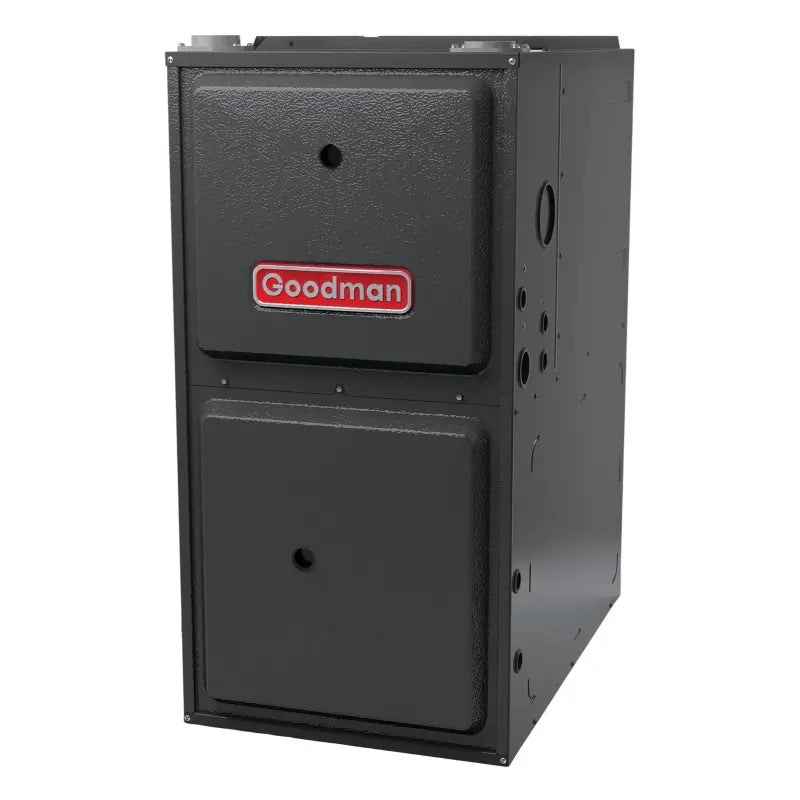

Gas Furnace - GR9T960804CN:
- 96% AFUE Efficiency: High efficiency reduces energy consumption and lowers heating costs.
- Reliable Performance: Features faster condensate drainage and long igniter life for fewer maintenance issues.
- Quiet & Efficient Heating: Provides energy-efficient, quiet circulation for improved comfort.
- Lower NOx Emissions: Designed to minimize harmful emissions.
- Self-Diagnostic Control Board: Provides continuous memory for easier troubleshooting and performance monitoring.
- Tax Credit Eligible: Compatible with two-stage or single-stage thermostats and easy to connect to electronic air cleaners and humidifiers.
Overall, the Goodman 3.5 Ton 14.5 SEER2 AC & 96% AFUE 80K BTU Gas Furnace System offers a combination of energy savings, durability, and high performance, making it an ideal solution for homeowners looking for efficient and reliable cooling and heating
-
AHRI Reference 214859936 AC Model Number GLXS4BA4210 SEER 2 14.3 Tonnage 3.5 Unit Height x Width x Depth 35.75 x 35.5 x 35.5 in Unit Weight 210 lb Cooling Capacity Nominal 42,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 18.95 Max Fuse Size 30 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA4230C3 Tonnage 3.5 Unit Height x Width x Depth 21 x 30 x 21 in Unit Weight 70 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9T960804CN Height x Width x Depth 34.5 x 21 x 28.75 in Weight 123 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 80,000 BtuH Output 76,800 Tons 2.5 - 4 CFM 1,600 Min. Circuit Amps 11.4 Motor Type ECM Stages Two LoNox No -
-
