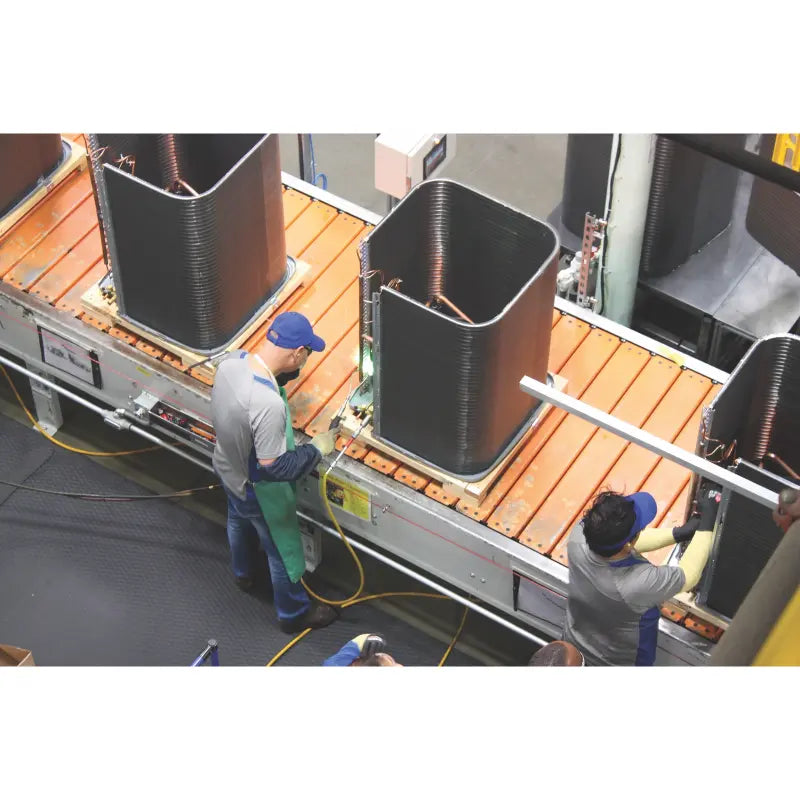

  • goodman assembly line brazing GLXS5BA4210 CHPTA4230C3 GR9T800804CN
1 8

Goodman

Model: GLXS5BA4210 / CHPTA4230C3 / GR9T800804CN

Goodman 3.5 Ton 15.2 SEER2 R32 AC and 80% AFUE 80K BTU Gas Furnace System - Horizontal

Goodman 3.5 Ton 15.2 SEER2 R32 AC and 80% AFUE 80K BTU Gas Furnace System - Horizontal

  • AC & furnace combo: Pre-charged AC to 15ft w/ 21" furnace. Natural gas/propane (kit req).
$5,379.00
$5,379.00
Sale Sold out
Guaranteed Safe Checkout

Add to Cart for a Discount. 100% Privacy – We Do Not Share Your Personal Info.
Free Shipping
Ships in 1-2 Days
60 Day Guarantee
Data Privacy

Need Help?

Call, chat or email us anytime!
View full details

  • The Goodman 3.5 Ton 15.2 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System - Horizontal, R32 (Model: GLXS5BA4210) offers a blend of advanced technology, energy efficiency, and long-lasting performance to provide consistent comfort throughout your home.

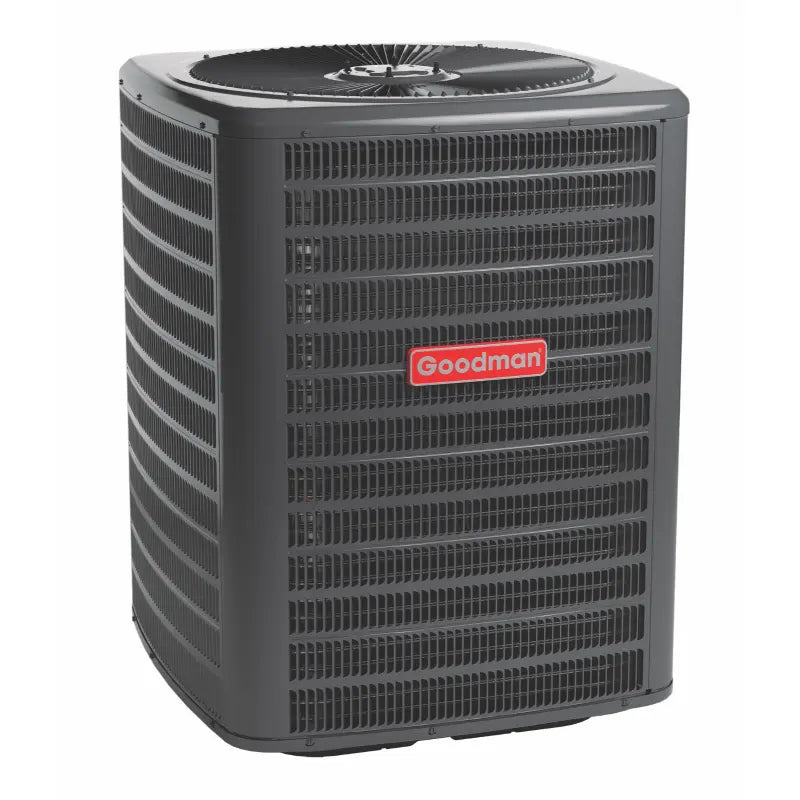

    Air Conditioner of the Goodman 3.5 Ton 15.2 SEER2 AC:

    • Energy Efficiency: Equipped with a high-efficiency compressor and pre-charged for a 15-foot line set to deliver optimal performance from the start.
    • Durable Construction: Durably built with copper tubing, 5mm aluminum fin coils, and a factory-installed filter drier for added reliability.
    • User-Friendly Design: Includes easy-access service valves and an enclosed contactor to streamline maintenance and servicing.
    • Certified Quality: This Goodman 3.5 Ton 15.2 SEER2 AC is AHRI Certified and ETL Listed, meeting rigorous standards for both performance and safety.

    Cabinet Highlights of the Goodman 3.5 Ton 15.2 SEER2:

    • Enhanced Airflow: Engineered with a Venturi design to boost air velocity, complemented by a UL-compliant grille-style top for added safety.
    • Durable Finish: Finished in Architectural Gray powder-coat, tested to resist 500 hours of salt spray for lasting protection and a clean look.
    • Ease of Maintenance: Designed for accessibility, the system offers both top and side access and provides space for optional accessories.
    • Hurricane-Ready: Built to meet the 2023 Florida Building Code requirements for hurricane-force winds when properly anchored.
    • Versatile Installation: Supports multi-position configurations and accommodates both direct and non-direct venting options.
    • Convenient Access: Gas and electrical connections are available on either side for flexible and efficient installation.
    • Energy Efficiency: A fully insulated heat exchanger and blower section minimize air leakage to ≤ 2%, enhancing overall system efficiency.
    • Robust Construction: Constructed with a heavy-gauge steel cabinet and a durable finish to ensure reliable, long-term performance.

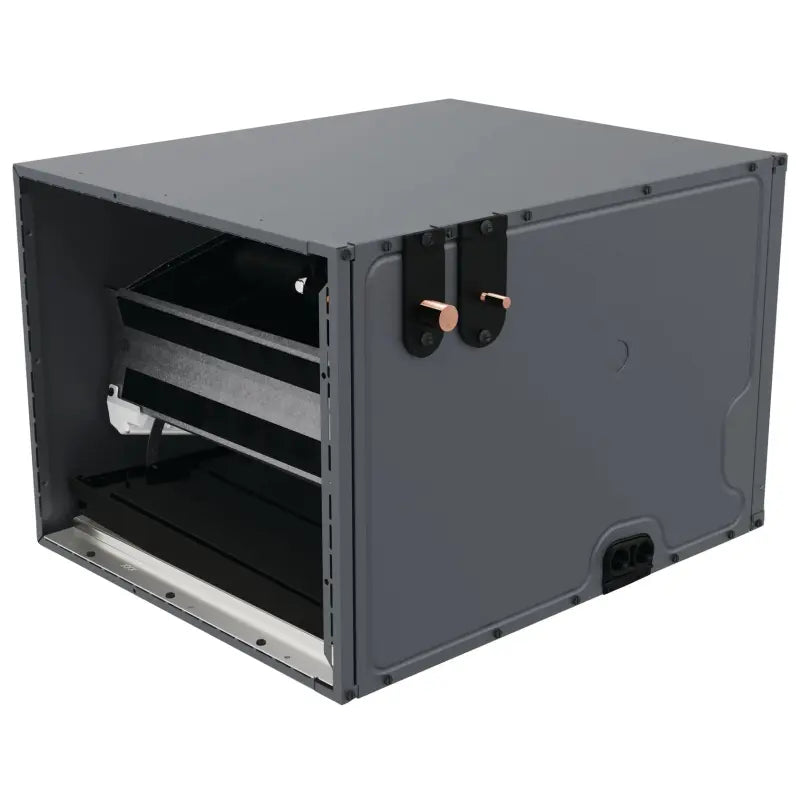

    Evaporator Coil - CHPTA4230C3:

    • Optimized for R-32 Refrigerant: All-aluminum coil with thermal expansion valves, hence, providing efficient cooling performance.
    • Compact Design: 21" depth fits tight attics, with a single front panel for easy maintenance access.
    • Built for Durability: Rust-resistant drain pan and foil-faced insulation minimize condensation and boost durability.
    • Certified Quality: AHRI Certified and ETL Listed, ensuring the system meets high standards for safety, efficiency, and performance.

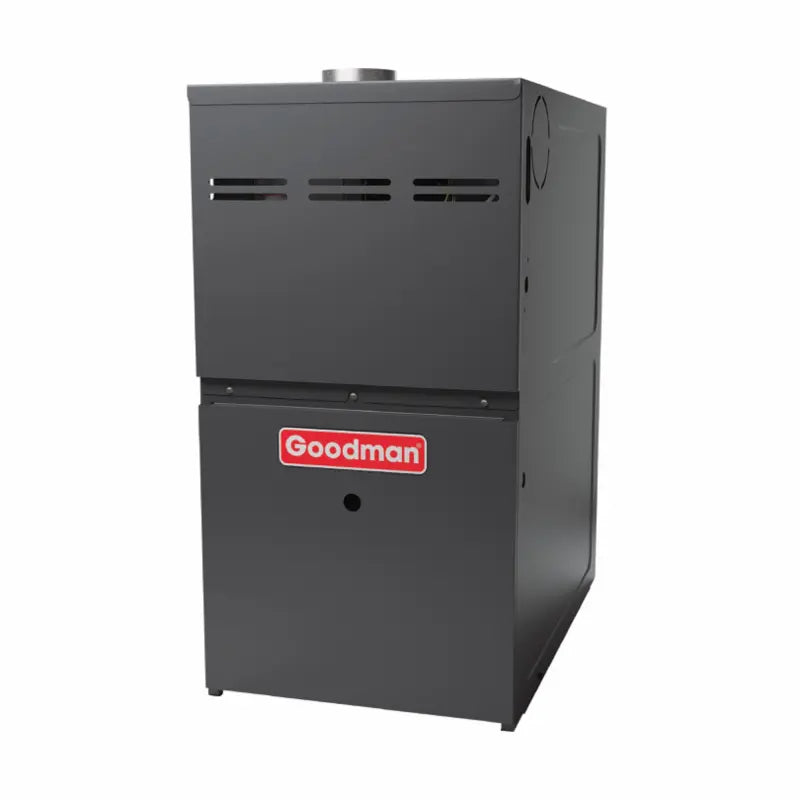

    Gas Furnace - GR9T800804CN:

    • Reliable Heating: Goodman 3.5 Ton 15.2 SEER2 features a durable, long-life igniter and an advanced self-diagnostic control system.
    • Eco-Friendly: Delivers quiet, cost-effective heating with low NOx emissions, supporting a cleaner indoor and outdoor environment.
    • Flexibility: Compatible with single- and two-stage thermostats; supports air cleaner and humidifier.
    • Certified Quality: AHRI Certified, ETL Listed, and tax-credit eligible, meeting high standards for performance and safety.

    The Goodman 3.5 Ton 15.2 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System offers a perfect balance of efficiency, durability, and versatility, making it an ideal choice for modern homes

  • Warranty

    Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a certified HVAC technician.

    Processing Time

    We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.

    Equipment Arrival

    Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.

    Making Notes on the Delivery Receipt

    If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as "Clear."

    If items or boxes are missing, mark the receipt as " Short" and list the missing items. A packing slip will be attached for reference. Allow up to 7 business days for the carrier to find the missing items. If they cannot be located, we will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."

    How Do I Handle a Damaged Shipment?

    If  any items are damaged, mark the receipt as "Damaged," specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company’s claims department directly to file a claim.

  • AHRI Reference 215380970
    AC Model Number GLXS5BA4210
    SEER 2 15.2
    Tonnage 3.5
    Unit Height x Width x Depth 39.5 x 35.5 x 35.5 in
    Unit Weight 258 lb
    Cooling Capacity Nominal 42,000 Btu/H
    Power Voltage 208/230 V
    Phase Single
    Motor Type PSC
    Min Circuit Amps 19.3
    Max Fuse Size 30
    Liquid Connection 3/8"
    Suction Fitting 7/8"
    Refrigerant Type R-32
    Evaporator Coil Model Number CHPTA4230C3
    Tonnage 3.5
    Unit Height x Width x Depth 21 x 30 x 21 in
    Unit Weight 70 lb
    Liquid Connection 3/8"
    Suction Fitting 7/8"
    Coil Type Cased
    Configuration Horizontal
    Metering Device TXV
    Refrigerant Type R-32
    Gas Furnace Model Number GR9T800804CN
    Height x Width x Depth 33-3/8 x 21 x 28 in
    Weight 129 lb
    AFEU 80%
    Configuration Upflow/Horizontal
    BtuH Input 80,000
    BtuH Output 64,000
    Tons 2.5 - 5
    CFM 1,600
    Min. Circuit Amps 11.3
    Motor Type ECM
    Stages Two
    LoNox No
