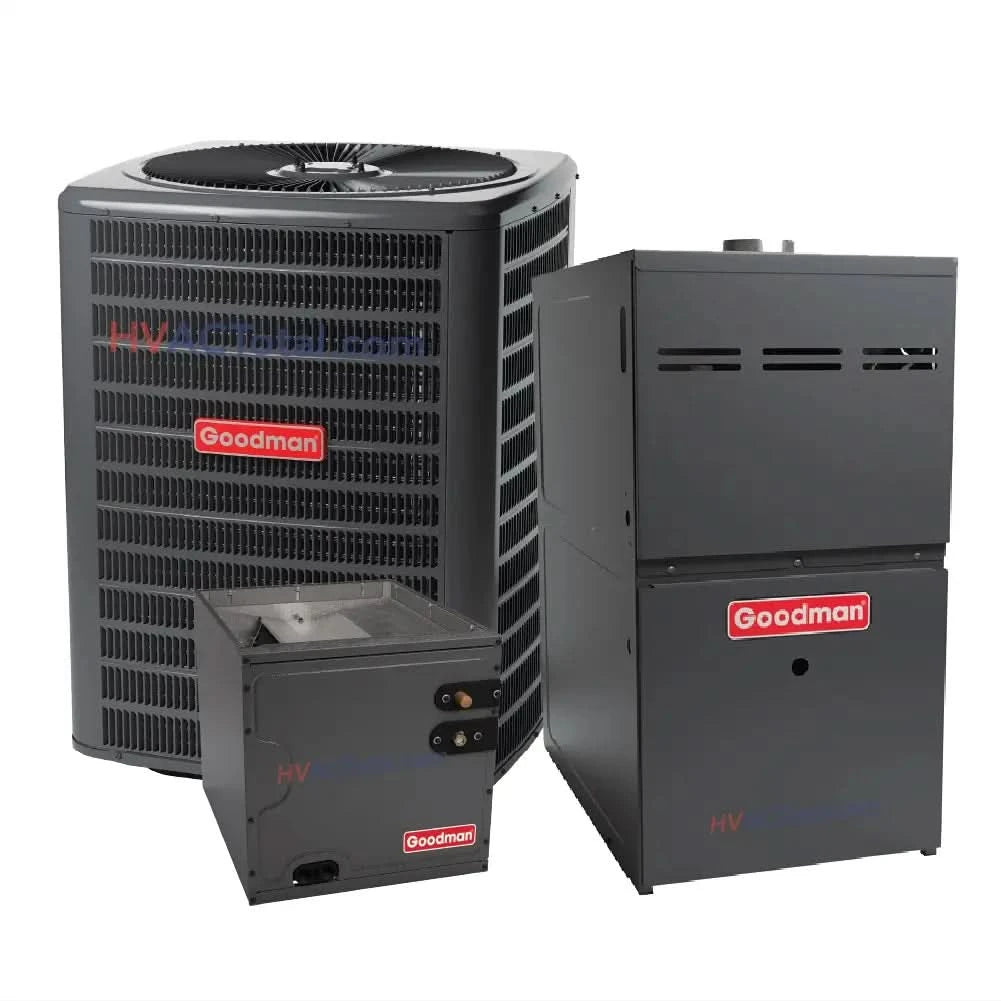

The Goodman 3.5 Ton 15.2 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System - Upflow, R32 (GLXS4BA4210) offers exceptional energy efficiency and reliable year-round performance. Designed for medium-sized spaces, this system provides both cooling and heating with advanced technology and durable construction.
Key Features of the Goodman 3.5 Ton 15.2 SEER2 AC:
- Energy-Efficient Compressor: Delivers consistent cooling while reducing energy usage.
- Pre-Charged Refrigerant: Ready for installation, charged for up to 15 feet of tubing.
- High-Performance Coils: Copper tubing with enhanced aluminum fins (5mm diameter) for optimal heat transfer.
- Factory-Installed Filter Drier: Enhances system reliability and longevity.
- Durable Construction: Steel louver coil guard and Architectural Gray powder-paint finish tested for 500-hour salt-spray resistance.
- Certifications: AHRI Certified and ETL Listed for quality assurance.
Evaporator Coil - CAPTA4230C3:
- All-Aluminum Design: Also, it offers superior corrosion resistance and long-lasting performance.
- Optimized for R-32 Refrigerant: Goodman 3.5 Ton 15.2 SEER2 ensures compatibility with modern refrigerants for improved cooling.
- Compact and Accessible: Additionally, 21" depth allows for easier attic installation and single front access panel for servicing.
- Efficient Drainage System: UV-resistant thermoplastic drain pan reduces water retention and prevents leaks.
- Thermal Expansion Valves: Pre-installed for enhanced cooling and heat pump functionality.
- Certifications: AHRI Certified and ETL Listed for compliance and performance standards.
Gas Furnace - GR9T800804CN:
- 80% AFUE Efficiency: Provides effective and economical heating.
- Self-Diagnostic Control Board: Facilitates easy troubleshooting with constant memory.
- Quiet Operation: Ensures a comfortable and low-noise heating experience.
- Environmental Compliance: Low NOx emissions align with strict environmental regulations.
- Flexible Thermostat Options: Compatible with single-stage and two-stage thermostats for enhanced control.
- Tax Credit Eligible: Meets energy efficiency criteria for potential rebates.
In summary, the Goodman 3.5 Ton 15.2 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System is an excellent choice for homeowners seeking an efficient, quiet, and reliable heating and cooling solution.
-
AHRI Reference 214859951 AC Model Number GLXS4BA4210 SEER 2 14.3 Tonnage 3.5 Unit Height x Width x Depth 35.75 x 35.5 x 35.5 in Unit Weight 210 lb Cooling Capacity Nominal 42,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 18.95 Max Fuse Size 30 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CAPTA4230C3 Tonnage 3.5 Unit Height x Width x Depth 30 x 21 x 21 in Unit Weight 66 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Upflow/Downflow Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9T800804CN Height x Width x Depth 33-3/8 x 21 x 28 in Weight 129 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 80,000 BtuH Output 64,000 Tons 2.5 - 5 CFM 1,600 Min. Circuit Amps 11.3 Motor Type ECM Stages Two LoNox No -
-
