The Goodman 3 Ton 13.5 SEER2 AC & 92% AFUE 60,000 BTU Gas Furnace System - Upflow, R32 (GLXS3BN3610) delivers dependable heating and cooling performance with energy efficiency and advanced features, making it an excellent choice for residential use.
Air Conditioner Features Goodman 3 Ton 13.5 SEER2 AC:
- Energy-Efficient Compressor: Reduces energy usage while maintaining effective cooling.
- Pre-Charged for 15' Tubing Length: Simplifies installation by eliminating extra refrigerant needs.
- Copper Tube/Enhanced Aluminum Fin Coil (5mm): Enhances heat transfer for improved performance.
- Factory-Installed Filter Drier: Also, it protects the system from contaminants and moisture.
- Sweat Connection Service Valves: Simplifies maintenance with easy access to gauge ports.
- High-Pressure Switch & Extended Life Capacitors: Ensures reliability and long-lasting operation.
- AHRI Certified & ETL Listed: Additionally, it meets stringent safety and efficiency standards.
Cabinet Features of the Goodman 3 Ton 13.5 SEER2:
- Grille-Style Top Design: Ensures compliance with UL 60335-2-40 for added safety.
- Enhanced Airflow Venturi Design: Improves cooling efficiency.
- Durable Gray Powder-Paint Finish: Corrosion-resistant with 500-hour salt-spray approval.
- Wire Fan Discharge Grille & Steel Louver Coil Guard: Protects components while ensuring durability.
- Easy Maintenance Access: Goodman 3 Ton 13.5 SEER2 AC includes top and side access panels for service and installation ease.
Evaporator Coil - CAPTA3626B3:
- All-Aluminum Construction: Designed for R-32 refrigerant to enhance efficiency.
- Factory-Installed Thermal Expansion Valves: Supports both cooling and heat pump applications.
- Foil-Faced Insulation: Reduces condensation within the cabinet.
- UV-Resistant Drain Pan: Ensures durability and prevents leaks.
- Rust-Resistant Thermoplastic Drain Pan: Includes secondary connections and low water retention.
- Compact 21" Depth: Facilitates easier attic access.
- AHRI Certified & ETL Listed: Guarantees high performance and safety.

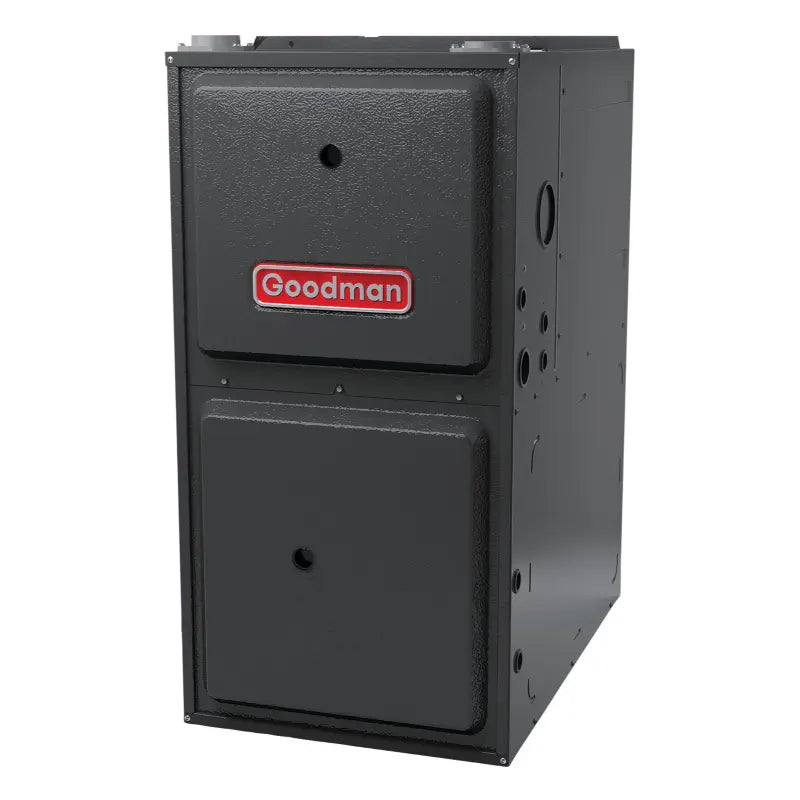

Gas Furnace - GM9S920603BN:
- Reliable Operation: High-quality components for consistent performance.
- Quiet & Efficient Heating: Reduces energy use while maintaining a comfortable indoor environment.
- Long-Lasting Igniter: Built for durability and extended life.
- Self-Diagnostic Control Board: Eases troubleshooting with constant memory functionality.
- Easy Setup: Simplifies installation for contractors and technicians.
- Electronic Air Cleaner Compatibility: Supports add-ons for improved air quality.
In summary, the Goodman 3 Ton 13.5 SEER2 AC combines a 13.5 SEER2 air conditioner with a 92% AFUE gas furnace for energy-efficient heating and cooling. With durable construction, R-32 refrigerant optimization, and user-friendly maintenance features, it provides reliable comfort for years to come.
-
AHRI Reference 215326409 AC Model Number GLXS3BN3610 SEER 2 13.4 Unit Height 32.5 in Unit Width 26 in Unit Depth 26 in Unit Weight 136 lb Cooling Capacity Nominal 36,000 Btu/H Max Overcurrent Protection 30A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Scroll Refrigerant Type R-32 Evaporator Coil Model Number CAPTA3626B3 Tonnage 3 Unit Height 26 in Unit Width 17.5 in Unit Depth 21 in Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GM9S920603BN AFUE 92% Unit Height 33.375 in Unit Width 17.5 in Unit Depth 28 in Unit Weight 114 lb Cooling Capacity Nominal 36,000 Btu/H Max Overcurrent Protection 15 A Installation Configuration Upflow/Horizontal Power Voltage 115 V Motor Speed Type Multi Speed ECM -
-
