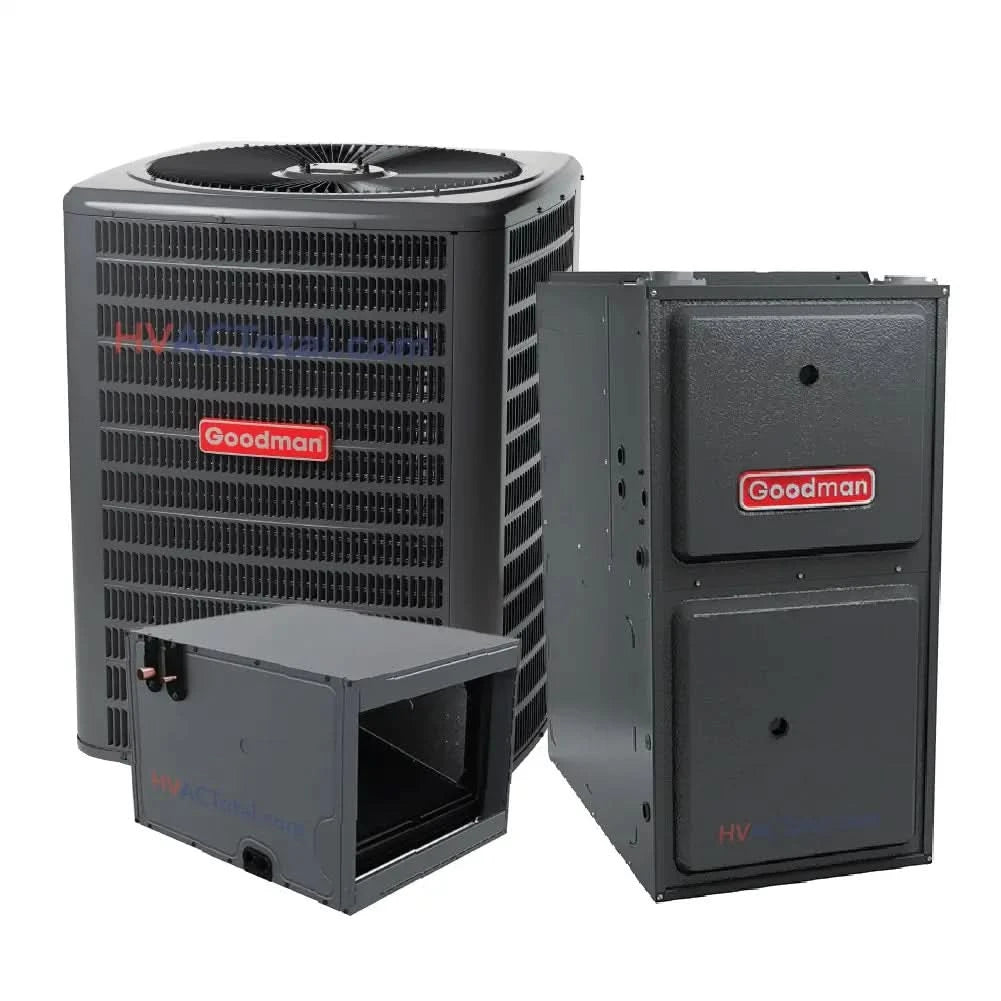

The Goodman 3 Ton 13.8 SEER2 AC & 96% AFUE 60,000 BTU Gas Furnace System - Horizontal, R32 (GLXS3BN3610) combines energy efficiency with durable components to deliver outstanding heating and cooling performance. Designed for horizontal installations, it is ideal for homes requiring a space-efficient and reliable HVAC solution.
Air Conditioner Features of the Goodman 3 Ton 13.8 SEER2 AC:
- Energy-Efficient Compressor: Goodman 3 Ton 13.8 SEER2 provides reliable cooling with reduced energy consumption.
- Pre-Charged for 15' Tubing: Also, it ensures quick and hassle-free installation.
- Enhanced Durability: Copper tube with a 5mm aluminum fin coil for superior heat transfer.
- Factory-Installed Filter Drier: Furthermore, it protects the system from moisture and contaminants.
- User-Friendly Maintenance: Sweat connection service valves and easily accessible gauge ports.
- Reliable Components: Goodman 3 Ton 13.8 SEER2 includes a high-pressure switch, enclosed contactor, and extended-life capacitors.
- Certifications: Additionally, AHRI Certified and ETL Listed for quality assurance.
Cabinet Features of the Goodman 3 Ton 13.8 SEER2:
- Removable Grille-Style Top: Compliant with UL 60335-2-40 safety standards.
- Venturi-Enhanced Airflow: Also, Goodman 3 Ton 13.8 SEER2 boosts cooling efficiency and performance.
- Durable Finish: Architectural Gray powder-paint finish with 500-hour salt-spray approval.
- Protective Features: Wire fan discharge grille and steel louver coil guard.
- Ease of Access: Top and side maintenance access with a single-panel control compartment.
Evaporator Coil - CHPTA3630B3:
- All-Aluminum Construction: Optimized for R-32 refrigerant, ensuring reliable and long-lasting performance.
- Advanced Design: Factory-installed thermal expansion valves support cooling and heat pump applications.
- Compact Dimensions: Horizontal application with a 21" depth for easier attic and tight-space installations.
- Rust-Resistant Features: UV-resistant, thermoplastic drain pan with low water-retention design.
- Effortless Maintenance: Drain pan rails for easy repositioning of coils without compromising integrity.
- Certifications: AHRI Certified and ETL Listed for safety and performance.
Gas Furnace - GM9S960603BN:
- High Reliability: Durable construction with a long-life igniter.
- Efficient Performance: Additionally, it offers quiet heating and energy-efficient circulation reduce operational costs.
- Advanced Diagnostics: Self-diagnostic control board with constant memory simplifies troubleshooting.
- User-Friendly Installation: Provisions for electronic air cleaners and humidifiers.
- Eco-Friendly: Lower NOx emissions meet environmental standards.
- Tax Credit Eligible: In addition, Goodman 3 Ton 13.8 SEER2 qualifies for available energy efficiency tax credits.
- Flexible Airflow Options: High static airflow capability with additional settings for customized comfort.
Overall, the Goodman 3 Ton 13.8 SEER2 AC & 96% AFUE 60,000 BTU Gas Furnace System delivers top-notch heating and cooling solutions for your home. With its high energy efficiency, durable components, and advanced features, this system is a perfect choice for horizontal installations, providing consistent comfort and long-lasting reliability.
-
AHRI Reference 215326404 AC Model Number GLXS3BN3610 SEER 2 13.4 Unit Height 32.5 in Unit Width 26 in Unit Depth 26 in Unit Weight 136 lb Cooling Capacity Nominal 36,000 Btu/H Max Overcurrent Protection 30A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Scroll Refrigerant Type R-32 Evaporator Coil Model Number CHPTA3630B3 Tonnage 3 Unit Height 17.5 in Unit Width 30 in Unit Depth 21 in Cased/Uncased Cased Coil Application Horizontal A Refrigerant Type R-32 Gas Furnace Model Number GM9S960603BN AFUE 96% Unit Height 33.375 in Unit Width 17.5 in Unit Depth 28 in Unit Weight 111 lb Cooling Capacity Nominal 36,000 Btu/H Max Overcurrent Protection 15 A Installation Configuration Upflow/Horizontal Power Voltage 115 V Motor Speed Type Nine Speed ECM -
-
