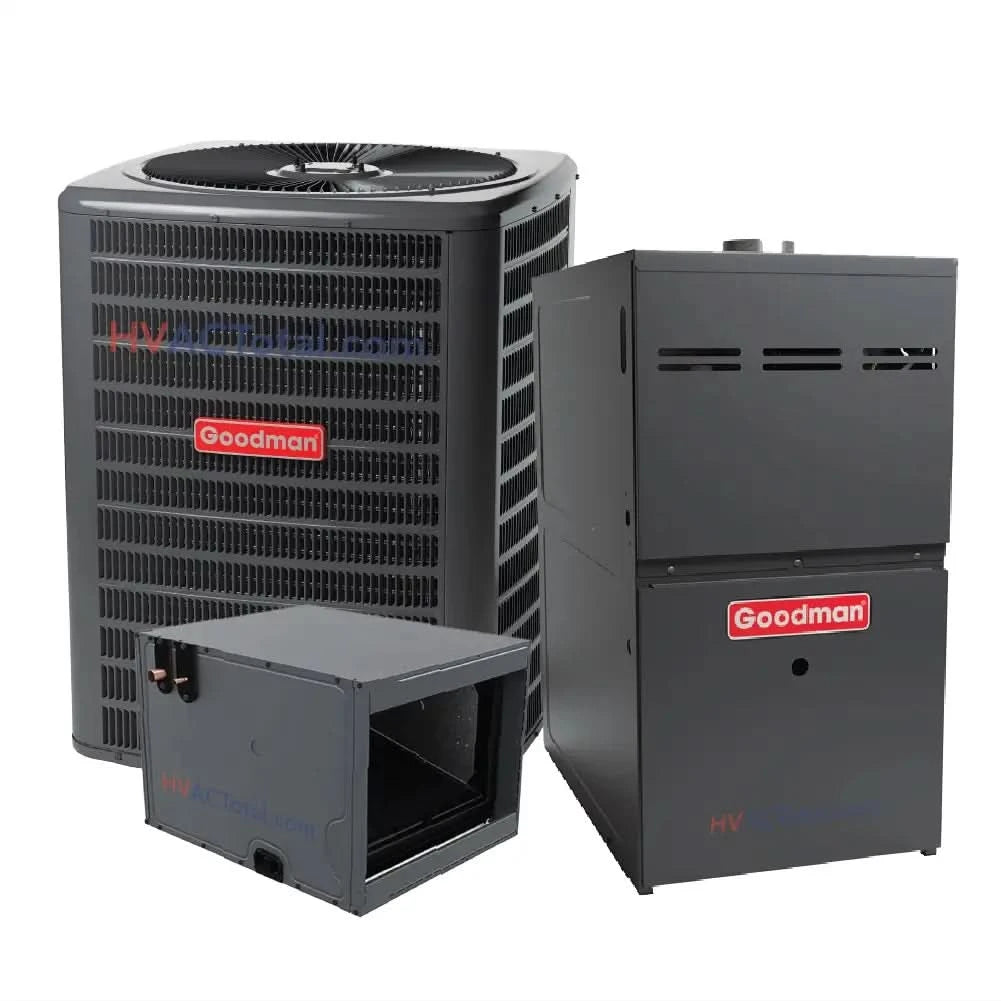

The Goodman 3 Ton 13.8 SEER2 AC & 80% AFUE 80,000 BTU Gas Furnace System - Horizontal, R32 (GLXS3BN3610) is designed for horizontal installations, offering efficient and reliable heating and cooling for your home. This system combines advanced technology with robust construction, ensuring long-lasting comfort.
Air Conditioner Features of the Goodman 3 Ton 13.8 SEER2 AC:
- Energy-Efficient Compressor: Firstly, it delivers powerful cooling while reducing energy consumption.
- Pre-Charged for 15' Tubing: Furthermore, it simplifies setup and ensures optimal refrigerant levels.
- Enhanced Coil Design: Copper tube and 5mm aluminum fin coil improve efficiency and durability.
- Factory-Installed Filter Drier: Additionally, it protects against moisture and contaminants for prolonged system life.
- Accessible Maintenance: Sweat connection service valves with gauge ports for easy servicing.
- Built to Last: Goodman 3 Ton 13.8 SEER2 AC includes high-pressure switch, enclosed contactor, and extended-life capacitors.
- Certifications: In addition, AHRI Certified and ETL Listed for safety and performance assurance.
Cabinet Features of the Goodman 3 Ton 13.8 SEER2:
- Durable Construction: Architectural Gray powder-paint finish withstands harsh weather and 500-hour salt-spray testing.
- Enhanced Airflow: Venturi design increases velocity for efficient cooling.
- Safety Features: Steel louver coil guard and wire fan discharge grille for added protection.
- Convenient Access: Removable grille-style top and side panels for simplified maintenance.
Evaporator Coil - CHPTA3630B3:
- All-Aluminum Coil: Optimized for R-32 refrigerant for corrosion resistance and longevity.
- Thermal Expansion Valves: Factory-installed for cooling and heat pump compatibility.
- Compact and Versatile: Horizontal application with a 21" depth for easier attic access.
- Rust-Resistant Design: UV-resistant, DecaBDE-free thermoplastic drain pan minimizes water retention.
- Ease of Maintenance: Single front access panel and repositionable drain pan rails.
- Certifications: AHRI Certified and ETL Listed for reliability.
Gas Furnace - GR9S800803BN:
- High Reliability: Durable igniter and provisions for electronic air cleaners and humidifiers.
- Energy Efficiency: Additionally, Goodman 3 Ton 13.8 SEER2 offers quiet and economical heating with efficient circulation.
- Environmentally Friendly: Low NOx emissions meet environmental standards.
- Diagnostic Capabilities: Self-diagnostic control board with constant memory for easy troubleshooting.
- Flexible Operation: Compatible with single-stage and two-stage thermostats.
- Tax Credit Eligible: In addition, it qualifies for energy efficiency incentives.
- Multi-Position Installation: Goodman 3 Ton 13.8 SEER2 supports horizontal left, horizontal right, and upflow configurations.
- Convenient Connections: Lastly, it has flexible gas and electrical service connections.
In summary, the Goodman 3 Ton Horizontal AC & Gas Furnace System offers dependable performance with energy efficiency and quiet operation. Ideal for horizontal installations, this system ensures your home stays comfortable while minimizing energy costs.
-
AHRI Reference 215277477 AC Model Number GLXS3BN3610 SEER 2 13.4 Tonnage 3 Unit Height x Width x Depth 32.5 x 26 x 26 in Unit Weight 136 lb Cooling Capacity Nominal 36,000 Btu/H Max Overcurrent Protection 30A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Scroll Refrigerant Type R-32 Evaporator Coil Model Number CHPTA3630B3 Tonnage 2 - 2.5 Unit Height x Width x Depth 17.5 x 30 x 21 in Cased/Uncased Cased Coil Application Horizontal Refrigerant Type R-32 Gas Furnace Model Number GR9S800803BN Height x Width x Depth 33-3/8 x 17.5 x 28 in Weight 116 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 80,000 BtuH Output 64,000 Tons 3 CFM 1,200 Min. Circuit Amps 7.7 Motor Type ECM Stages Single LoNox No -
-
