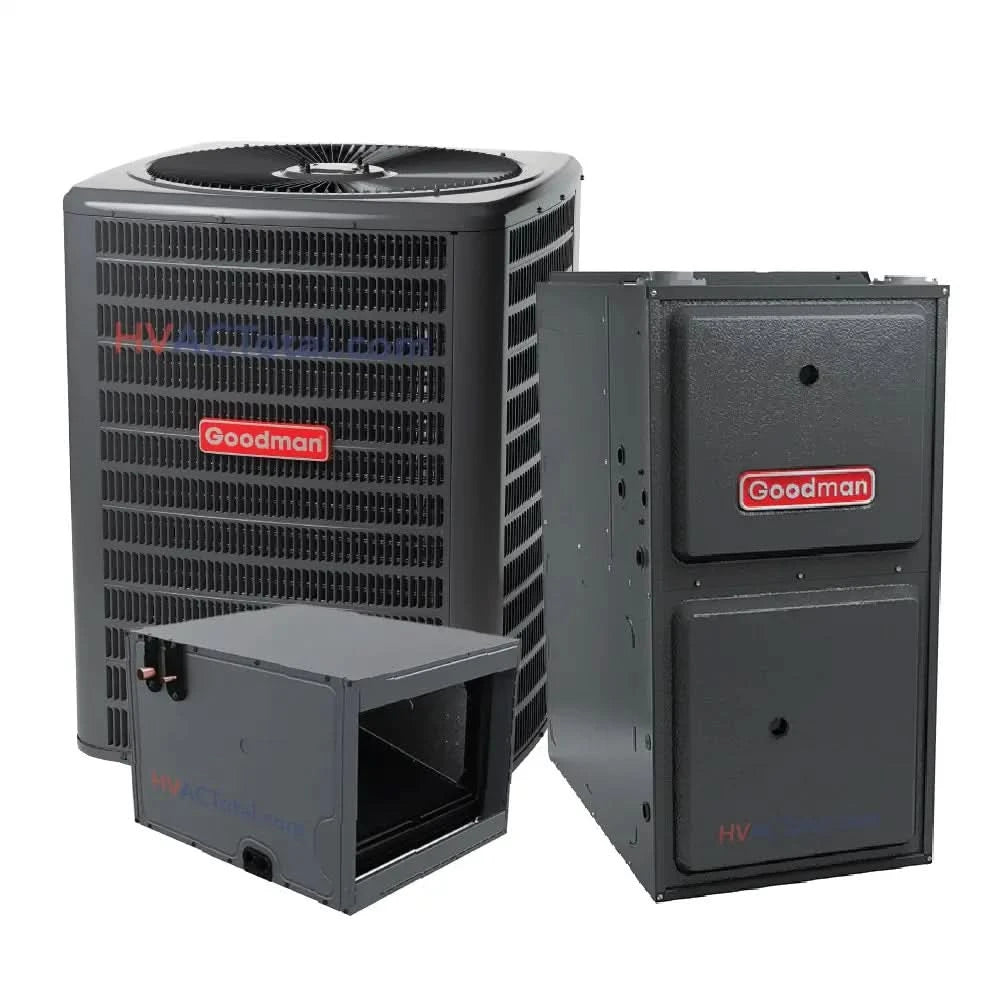

The Goodman 3 Ton 13.8 SEER2 AC & 96% AFUE 100,000 BTU Gas Furnace System - Horizontal, R32 (GLXS3BN3610) combines advanced energy efficiency with reliable performance, ideal for horizontal installations. With a 96% AFUE rating, this system ensures optimal heating and cooling comfort while reducing energy costs.
Air Conditioner Features of the Goodman 3 Ton 13.8 SEER2 AC:
- Energy-Efficient Compressor: Firstly, it offers superior cooling with reduced energy consumption.
- Pre-Charged for 15' Tubing: Furthermore, it simplifies installation and ensures accurate refrigerant levels.
- Enhanced Coil Design: 5mm copper tube and aluminum fin coil improve durability and heat exchange.
- Factory-Installed Filter Drier: Additionally, it protects the system from moisture and contaminants.
- Service-Friendly: Sweat connection valves with accessible gauge ports.
- Built to Last: Goodman 3 Ton 13.8 SEER2 AC includes high-pressure switch, enclosed contactor, and extended-life capacitors.
- Certifications: AHRI Certified and ETL Listed for safety and performance.
Cabinet Features of the Goodman 3 Ton 13.8 SEER2:
- Durable Finish: Architectural Gray powder-coat finish resists corrosion with 500-hour salt-spray approval.
- Improved Airflow: Venturi design enhances airflow velocity for efficient cooling.
- Protective Components: Steel louver coil guard and wire fan discharge grille safeguard the unit.
- Accessible Design: Removable grille-style top and side panels for convenient maintenance access.
Evaporator Coil - CHPTA4230C3:
- All-Aluminum Coil: Corrosion-resistant and optimized for R-32 refrigerant.
- Thermal Expansion Valves: Factory-installed for cooling and heat pump compatibility.
- Compact Design: Additionally, 21" depth for easier attic access in horizontal installations.
- Durable and Safe: UV-resistant, DecaBDE-free thermoplastic drain pan reduces water retention.
- Ease of Use: Single front access panel and repositionable drain pan rails for hassle-free maintenance.
- Certifications: In addition, Goodman 3 Ton 13.8 SEER2 AC is AHRI Certified and ETL Listed for dependable performance.
Gas Furnace - GR9S961005CN:
- High Efficiency: 96% AFUE rating ensures maximum heating output with minimal energy waste.
- Reliable Performance: Durable igniter and efficient condensate water drainage.
- Eco-Friendly: Low NOx emissions meet environmental standards.
- Quiet Operation: Energy-efficient blower ensures quiet air circulation.
- Smart Diagnostics: Self-diagnostic control board with constant memory for troubleshooting ease.
- Flexible Thermostat Compatibility: Also, it operates with single-stage or two-stage thermostats.
- Tax Credit Eligible: Moreover, it meets federal standards for energy efficiency incentives.
- Multi-Position Installation: Horizontal left, right, or upflow configurations.
- Convenient Connections: Lastly, it is flexible for left or right gas and electrical service setups.
Overall, the Goodman 3 Ton 13.8 SEER2 AC & Gas Furnace System is perfect for homeowners seeking high performance and energy efficiency. Its horizontal installation compatibility, durable construction, and advanced features provide year-round comfort with long-lasting reliability.
-
AHRI Reference 215277427 AC Model Number GLXS3BN3610 SEER 2 13.4 Tonnage 3 Unit Height x Width x Depth 32.5 x 26 x 26 in Unit Weight 136 lb Cooling Capacity Nominal 36,000 Btu/H Max Overcurrent Protection 30A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Scroll Refrigerant Type R-32 Evaporator Coil Model Number CHPTA4230C3 Tonnage 2.5 - 3.5 Unit Height x Width x Depth 21 x 30 x 21 in Cased/Uncased Cased Coil Application Horizontal Refrigerant Type R-32 Gas Furnace Model Number GR9S961005CN Height x Width x Depth 34.5 x 21 x 28.75 in Weight 144 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 100,000 BtuH Output 96,100 Tons 3 - 5 CFM 2,000 Min. Circuit Amps 16.7 Vent Size 2" - 3" Motor Type ECM Stages Single LoNox No -
-
