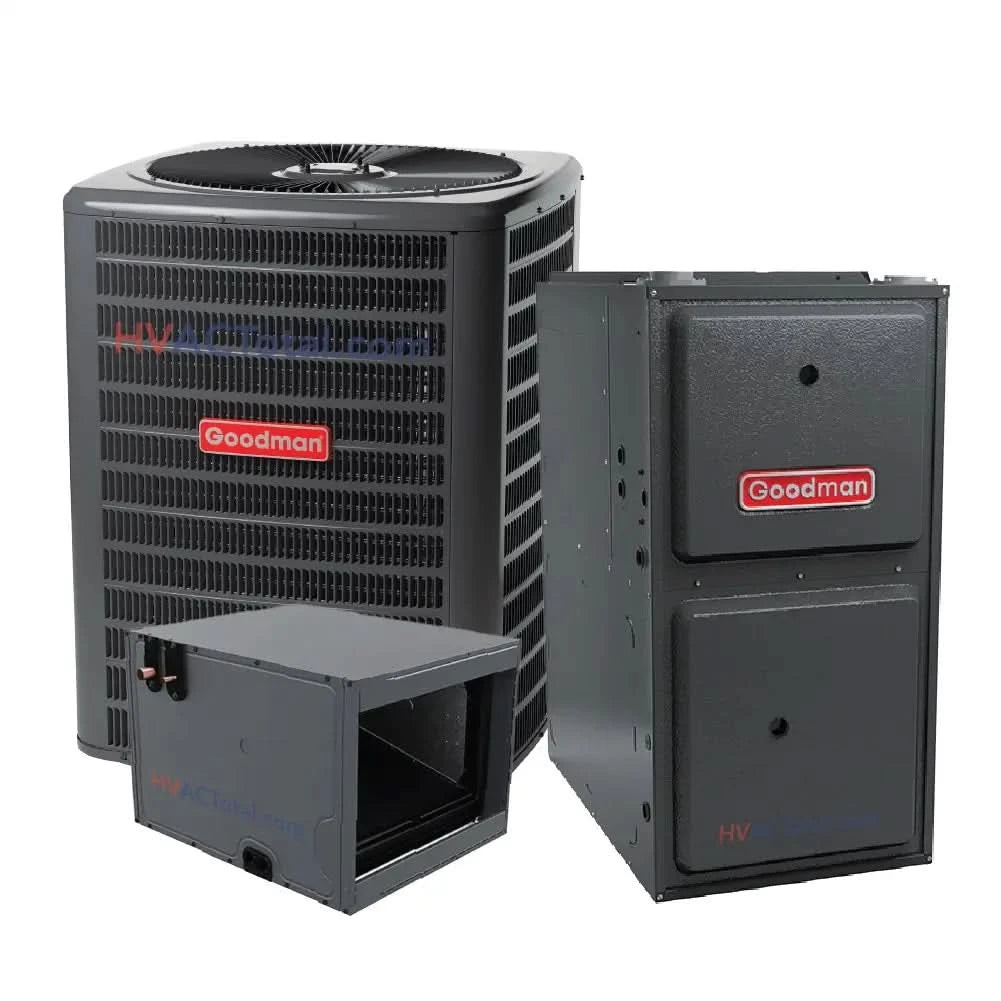

The Goodman 3 Ton 13.8 SEER2 AC & 96% AFUE 60,000 BTU Gas Furnace System - Horizontal, R32 (GLXS3BN3610) offers an energy-efficient, high-performance heating and cooling solution for residential or light commercial spaces.
Air Conditioner Features of the Goodman 3 Ton 13.8 SEER2 AC:
- Energy-Efficient Compressor: Firstly, it provides effective cooling while conserving energy.
- Pre-Charged for 15' Tubing: Also, it simplifies installation and ensures accurate refrigerant levels.
- Enhanced Coil Design: 5mm copper tubing with aluminum fins for superior heat transfer and durability.
- Factory-Installed Filter Drier: Furthermore, it protects the system by removing moisture and contaminants.
- Sweat Connection Service Valves: Offers easy access for maintenance and diagnostics.
- Long-Lasting Components: High-pressure switch, enclosed contactor, and extended-life capacitors.
- Certifications: AHRI Certified and ETL Listed for safety and quality assurance.
Cabinet Features of the Goodman 3 Ton 13.8 SEER2:
- Removable Grille-Style Top: Compliant with UL 60335-2-40 standards for ease of maintenance.
- Venturi Design: In addition, it enhances airflow velocity for better cooling efficiency.
- Architectural Gray Finish: Powder-painted exterior with 500-hour salt-spray approval for corrosion resistance.
- Protective Steel Louver Coil Guard: Safeguards the coil from debris and damage.
- Service-Friendly Access: Single-panel access to controls with ample space for field-installed accessories.
- Multi-Position Installation: Configurable for upflow or horizontal left/right applications.
- Direct and Non-Direct Vent Options: Adapts to different venting requirements.
- Convenient Connections: Left or right adaptability for gas and electrical service.
- Sealed Cabinet Design: Air leakage (Qleak) less than or equal to 2% for enhanced efficiency.
- Durable Construction: Fully insulated heat exchanger and blower sections in a heavy-gauge steel cabinet.
Evaporator Coil - CHPTA3630B3:
- All-Aluminum Construction: Goodman 3 Ton 13.8 SEER2 ensures long-lasting durability and compatibility with R-32 refrigerant.
- Integrated R-32 Sensor: Moreover, it monitors refrigerant for system longevity and performance.
- Factory-Installed Expansion Valve: Optimized for cooling and heat pump applications.
- Compact Vertical Design: In addition, 21" depth allows easy installation in tight spaces.
- Foil-Faced Insulation: Also, it reduces condensation for cleaner and quieter operation.
- Durable Drain Pan: UV-resistant, rust-proof, and designed for low water retention.
- Certifications: AHRI Certified and ETL Listed for reliability and safety.
Gas Furnace - GR9S960603BN:
- High Efficiency: Additionally, 96% AFUE rating ensures maximum heating performance with minimal energy loss.
- Reliable and Quiet: Durable igniter and energy-efficient circulation provide dependable and quiet heating.
- Advanced Diagnostics: Self-diagnostic control board with memory for streamlined troubleshooting.
- Environmentally Friendly: Lower NOx emissions meet environmental standards.
- Flexible Thermostat Compatibility: Operates with two-stage or single-stage thermostats.
- Tax Credit Eligibility: Lastly, it meets efficiency requirements for potential federal rebates.
In summary, the Goodman 3 Ton Horizontal System offers a reliable and energy-efficient solution for homes in need of precise climate control. Therefore, with a focus on eco-friendly operation, advanced diagnostics, and flexible installation options, this system ensures long-term comfort, savings, and peace of mind.
-
AHRI Reference 215277438 AC Model Number GLXS3BN3610 SEER 2 13.4 Tonnage 3 Unit Height x Width x Depth 32.5 x 26 x 26 in Unit Weight 136 lb Cooling Capacity Nominal 36,000 Btu/H Max Overcurrent Protection 30A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Scroll Refrigerant Type R-32 Evaporator Coil Model Number CHPTA3630B3 Tonnage 2 - 2.5 Unit Height x Width x Depth 17.5 x 30 x 21 in Cased/Uncased Cased Coil Application Horizontal Refrigerant Type R-32 Gas Furnace Model Number GR9S960603BN Height x Width x Depth 34.5 x 17.5 x 28.75 in Weight 118 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 60,000 BtuH Output 58,200 Tons 1.5 - 3 CFM 1,200 Min. Circuit Amps 10.1 Motor Type ECM Stages Single LoNox No -
-
