Model: GLXS5BA3610 / CHPTA3630B3

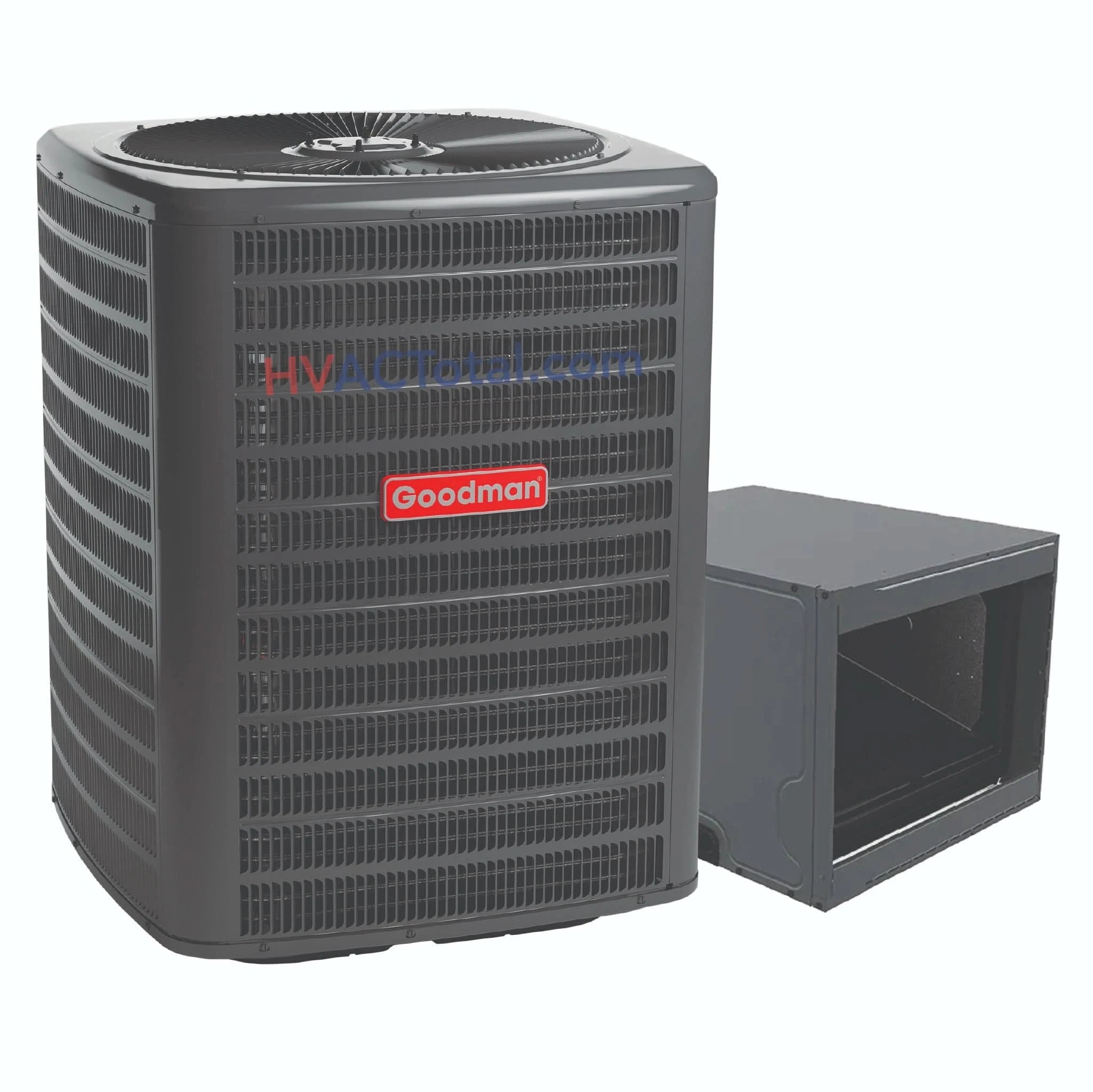

Goodman 3 Ton 14.3 SEER2 R32 Air Conditioner & 17.5" Horizontal Cased Coil
Goodman 3 Ton 14.3 SEER2 R32 Air Conditioner & 17.5" Horizontal Cased Coil

Couldn't load pickup availability
Got a question? Talk with our experts anytime
Call Us at 866-718-1799
Product Details
The 3 Ton AC Goodman 14.3 SEER2 & 17.5" Horizontal Cased Coil combines energy efficiency, advanced technology, and eco-friendly R-32 refrigerant compatibility for reliable and effective cooling.
3 Ton AC Goodman - GLXS5BA3610 Features:
- Firstly, the Energy-Efficient Compressor ensures cost-effective performance.
- Additionally, it comes Fully Charged for 15' of Tubing, simplifying installation.
- The Copper Tube/Enhanced Aluminum Fin Coil provides efficient heat transfer, while the Factory-Installed Filter Drier protects against contaminants.
- Moreover, the Sweat Connection Service Valves and Enclosed Contactor with Lug Connection streamline maintenance.
- Lastly, it is AHRI Certified and ETL Listed, ensuring reliability and safety.
Cabinet Highlights:
- The Removable Grille-Style Top Design enhances airflow and complies with UL standards.
- Furthermore, the Architectural Gray Powder-Paint Finish offers durability with 500-hour salt-spray resistance.
- Additionally, the Steel Louver Coil Guard protects internal components, while Top and Side Maintenance Access improves serviceability.
3 Ton Coil - CHPTA3630B3 Features:
- The All-Aluminum Coil resists corrosion and is optimized for R-32 refrigerant.
- Moreover, the Factory-Installed Thermal Expansion Valves enable versatile cooling and heat pump applications.
- Its Compact 21" Depth allows easier attic or tight-space installation.
- Lastly, the UV-Resistant, Low-Retention Drain Pan ensures durability and efficient water drainage.
In conclusion, the Goodman 3 Ton 14.3 SEER2 R32 Air Conditioner & 17.5" Horizontal Cased Coil delivers a reliable, efficient, and environmentally conscious cooling solution for modern homes.
Specifications
AHRI | 215380752 |
---|---|
AC Model Number | GLXS5BA3610 |
SEER2 | 15.2 |
Tons | 3 |
BTU | 36,000 |
Volts | 208/230 |
Phase | Single |
Motor Type | PSC |
Min. Circuit Amps | 17.8 |
Max Fuse Size | 30 |
Liquid Connection | 3/8" |
Suction Fitting | 7/8" |
Refrigerant | R-32 |
Width | 35.5" |
Height | 39.5" |
Depth | 35.5" |
Weight | 201 |
Evaporator Coil Model Number | CHPTA3630B3 |
Unit Depth | 21 in |
Unit Height | 17.5 in |
Unit Width | 30 in |
Cased/Uncased | Cased |
Warranty & Shipping
Warranty
Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a properly certified professional adhering to city, state and federal laws.
Processing Time
We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.
Equipment Arrival
Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.
Making Notes on the Delivery Receipt
If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as "Clear."
If items or boxes are missing, mark the receipt as " Short" and list the missing items. We will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."
How Do I Handle a Damaged Shipment?
If any items are damaged, mark the receipt as "Damaged," specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company’s claims department directly to file a claim.
Documents
- //hvactotal.com/cdn/shop/files/GLXS5 Spec Manual
- //hvactotal.com/cdn/shop/files/GLXS5 Installation Manual
- //hvactotal.com/cdn/shop/files/GLXS5 Warranty Guide
- //hvactotal.com/cdn/shop/files/Horizontal Coil Installation
- //hvactotal.com/cdn/shop/files/CHPTA Coils repair parts
- //hvactotal.com/cdn/shop/files/A2L Sensor Dragonfly Installation
Add Accessories
