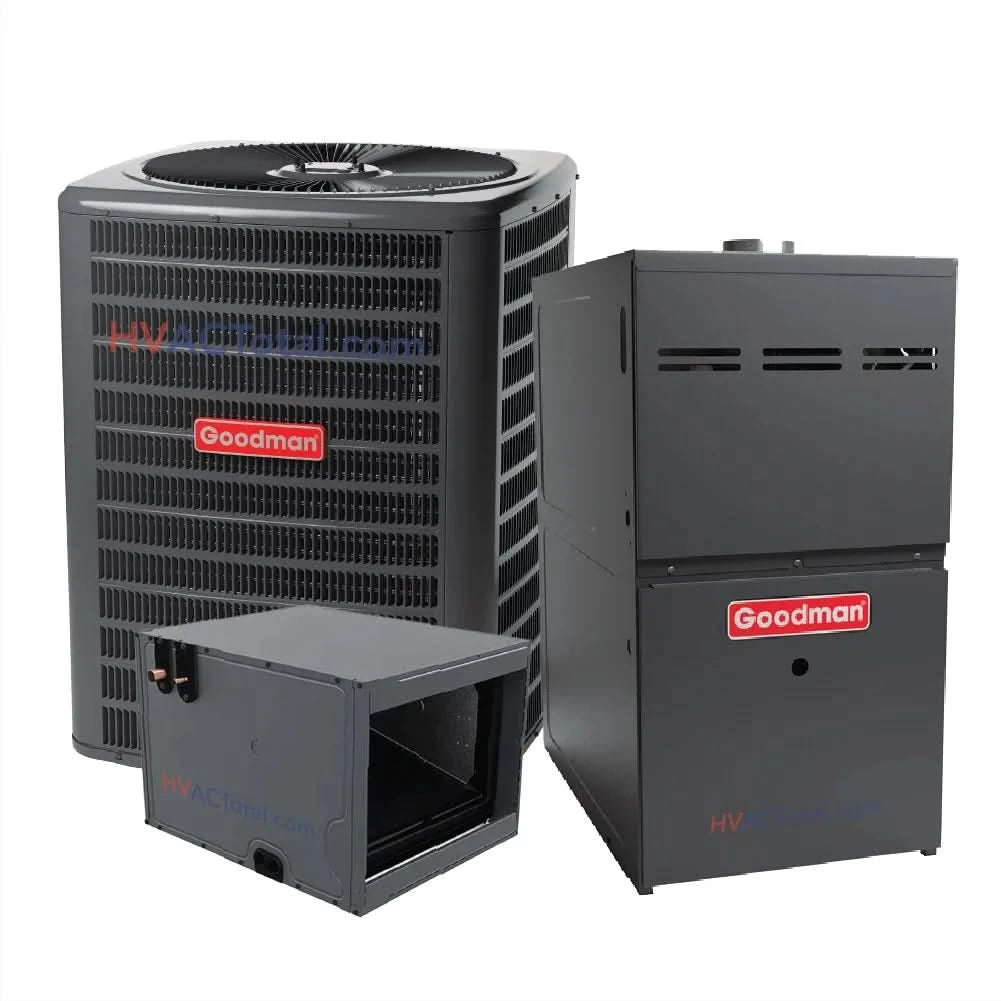

The Goodman 3 Ton 15.2 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System - Horizontal, R32 (Model: GLXS4BA3610) offers efficient year-round comfort with a combination of advanced air conditioning and heating technologies. This system is designed for horizontal installation and provides energy-efficient performance, ease of maintenance, and reliable operation for both cooling and heating needs.
Product Benefits of the Goodman 3 Ton 15.2 SEER2 AC:
- Energy-Efficient Compressor: Reduces energy consumption for cost savings.
- Fully Charged for 15’ of Tubing: Simplifies installation process.
- Copper Tube/Aluminum Fin Coil: Enhanced 5mm coil diameter for superior heat transfer.
- Factory-Installed Filter Drier: Goodman 3 Ton 15.2 SEER2 protects the system by maintaining clean refrigerant flow.
- Durable Components: Additionally, it includes enclosed contactor, high-pressure switch, and long-lasting capacitors.
- AHRI Certified & ETL Listed: Meets industry performance and safety standards.
Cabinet Features of the Goodman 3 Ton 15.2 SEER2:
- Removable Grille-Style Top Design: Compliant with UL 60335-2-40 for safety standards.
- Venturi Design: Improves airflow velocity for consistent cooling performance.
- Architectural Gray Finish: Durable, 500-hour salt-spray approved powder coat.
- Hurricane-Ready: Furthermore, it meets Florida Building Code for wind resistance (optional anchor kits).
- Easy Maintenance Access: Single-panel access to controls with space for additional accessories.
- Multi-Position Installation: Can be installed in upflow, horizontal left, or right configurations.
- Ventilation Flexibility: Supports both direct (2-pipe) and non-direct (1-pipe) venting.
- Low Air Leakage: Cabinet air leakage ≤2% for optimal performance.
- Durable Steel Cabinet: Heavy-gauge steel with a long-lasting finish.
- Fully Insulated: Moreover, it minimizes energy loss and noise.
Evaporator Coil - CHPTA3630B3:
- All-Aluminum Coil: Also, it offers corrosion resistance for a longer lifespan.
- Optimized for R-32 Refrigerant: Enhanced cooling performance with R-32 sensor and circuits.
- Factory-Installed Expansion Valves: Goodman 3 Ton 15.2 SEER2 supports cooling and heat pump applications.
- Compact Design: 21" depth for easier attic installation.
- UV-Resistant Drain Pan: Rust-resistant, low water-retention design with secondary connections.
- AHRI Certified & ETL Listed: Meets rigorous standards for quality and performance.
Gas Furnace - GR9S800603BN
- 80% AFUE Rating: Efficient, cost-effective heating.
- Long-Lasting Igniter: Reliable performance for years.
- Lower NOx Emissions: Quieter operation with environmentally friendly features.
- Self-Diagnostic Control Board: In addition, it facilitates troubleshooting with constant memory.
- Tax Credit Eligible: Qualifies for federal energy efficiency tax credits.
- Quiet & Energy-Efficient Heating: Lastly, it provides economical heating with minimal noise.
In conclusion, the Goodman 3 Ton 15.2 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System is ideal for homeowners seeking a reliable, energy-efficient solution for year-round climate control. With easy installation, durability, and industry-leading features, it provides excellent value and comfort.
-
AHRI Reference 214859841 AC Model Number GLXS4BA3610 SEER 2 14.3 Tonnage 3 Unit Height x Width x Depth 39.5 x 29 x 29 in Unit Weight 158 lb Cooling Capacity Nominal 36,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 17.75 Max Fuse Size 30 Liquid Connection 3/8" Suction Fitting 7/8" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA3630B3 Tonnage 3 Unit Height x Width x Depth 17.5 x 30 x 21 in Unit Weight 66 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9S800603BN Height x Width x Depth 33-3/8 x 17.5 x 28 in Weight 100 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 60,000 BtuH Output 48,000 Tons 3 CFM 1,200 Min. Circuit Amps 7.7 Motor Type ECM Stages Single LoNox No -
-
