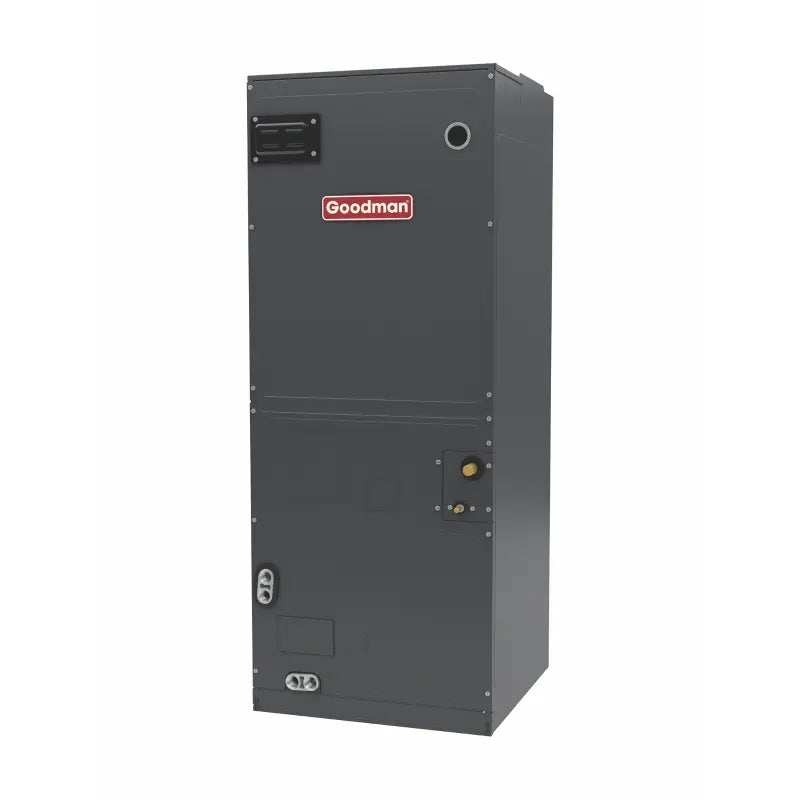

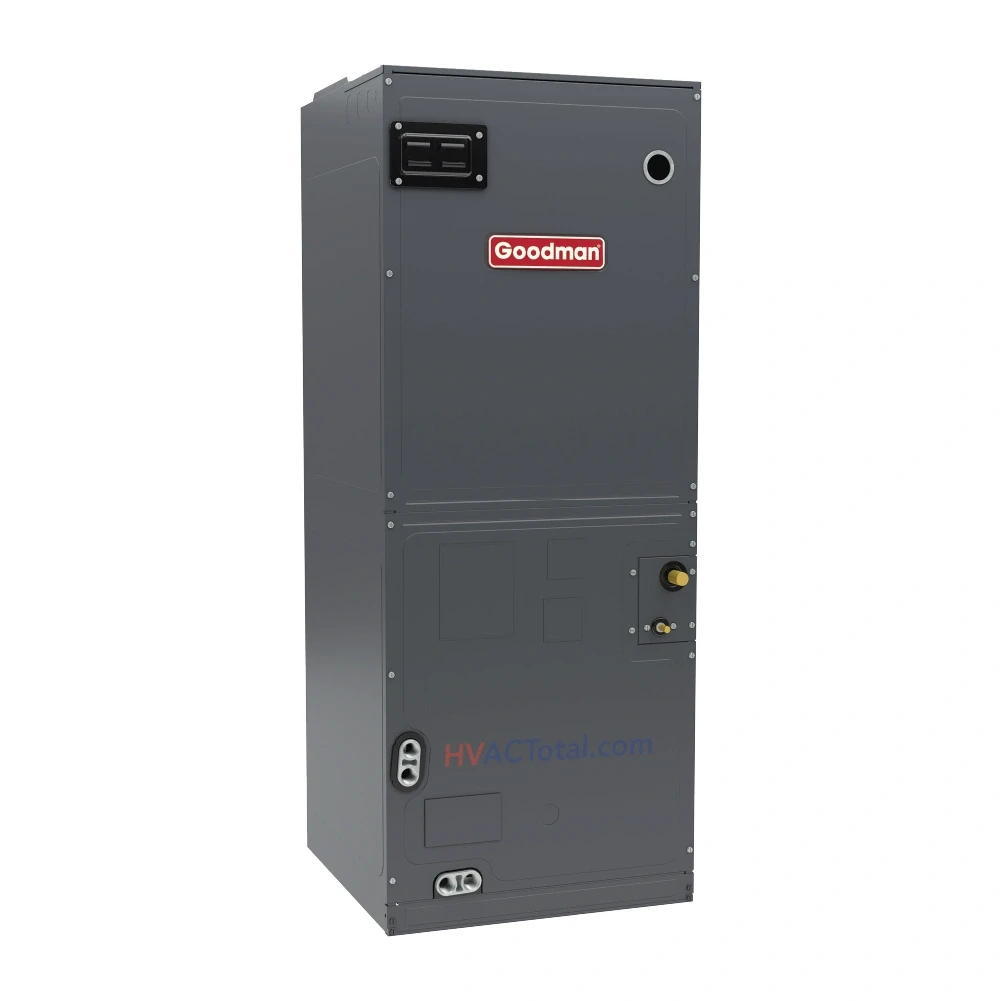

The Goodman 3 Ton Multi-Positional Air Handler (AMST36CU1300) is engineered to provide outstanding performance for your HVAC system. Perfect for both residential and light commercial use, providing excellent energy efficiency and a peaceful indoor atmosphere.
Key Features & Benefits of the 3 Ton Ducted Air Handler:
- All-Aluminum Coil Construction: Built with a strong all-aluminum tube/aluminum fin coil for excellent heat transfer and resistance to corrosion.
- High-Efficiency Motor: Equipped with a direct-drive, resilient-mount, 9-speed ECM motor for efficient and quiet operation.

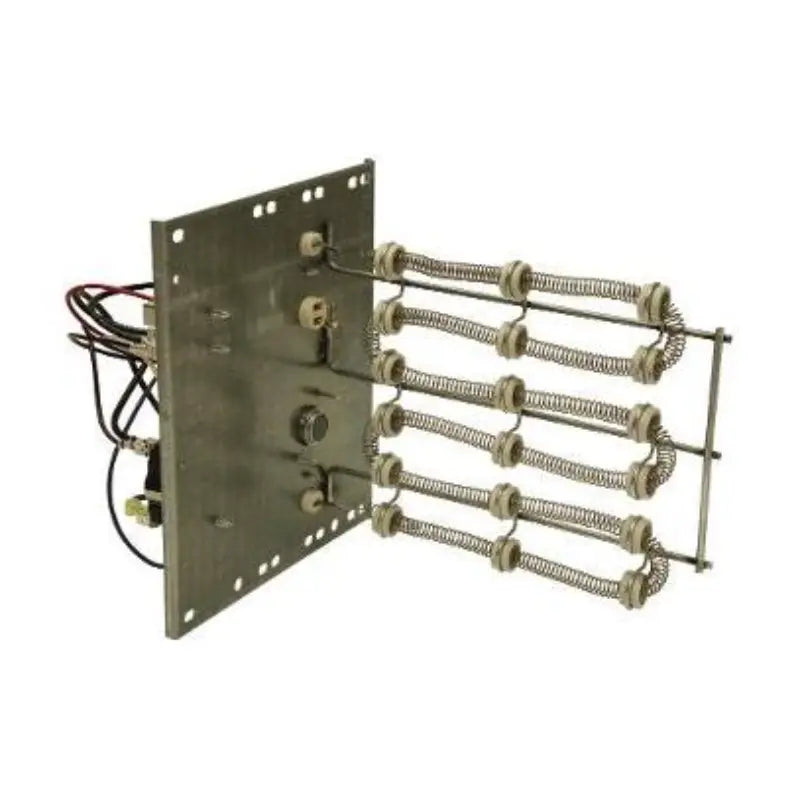

- Heating Options: Choose heated or non-heated options with reliable nickel chromium heating elements in 5, 6, 8, or 10 kW sizes.
- Quiet Operation: Designed for minimal noise, consequently ensuring a comfortable living environment.
- Dual Drain Connections: Enhanced reliability with primary and secondary drain connections in a high-temperature plastic pan.
- Flexible Installation: Ideal for free-return installation, hemce allowing non-ducted return air for more flexible setup in different spaces.
- Durable Construction: Constructed with galvanized steel for exceptional durability, hence ensuring your air handler remains reliable for years.
- Easy Maintenance: Factory-installed pull-type disconnect allows for simple service access, and tool-less filter access makes maintenance hassle-free.
- AHRI Certified & ETL Listed: AHRI Certified for performance and efficiency, and ETL Listed for safety.
Cabinet Features:
- Rigid SmartFrame Cabinet: The robust SmartFrame cabinet ensures a sturdy structure for easy installation and long-term reliability.
- Horizontal & Vertical Configurations: Flexible installation options in both horizontal or vertical configurations, hence offering more versatility for your specific needs.
- Space-Saving Design: A 21” depth allows for easier access, especially in tighter attic spaces or areas with limited room.
- DecaBDE-Free Thermoplastic Drain Pan: Thermoplastic drain pan is chemical-free and has secondary drain connections for added protection.
- Moisture Control: Screw-less sides and back reduce condensation, even in humid conditions, while foil-faced insulation helps to minimize cabinet condensation.
- Durable Finish: A galvanized, leather grain-embossed finish enhances the cabinet's durability, hence adding a sleek, modern touch.
- Efficient Insulation: Glue-less insulation retention ensures easy installation and long-lasting performance.
Upgrade to the Goodman 3 Ton Multi-Positional Air Handler (AMST36CU1300) for a dependable and noiseless heating and cooling solution constructed with durability in mind. Ideal for optimizing your HVAC system with advanced features.
-
Air Handler Model Number AMST36CU1300 Tons 3 Cooling Capacity Nominal 36,000 Btu/H Unit Depth 21 in Unit Height 49 in Unit Width 21.125 in Unit Weight 153 lb Max Overcurrent Protection 60/60 A Power Phase 1 Ph Power Voltage 208/230 V Cased/Uncased Cased Refrigerant Type R-32 Energy Source Electric Motor Speed Type Nine Speed ECM -
-
