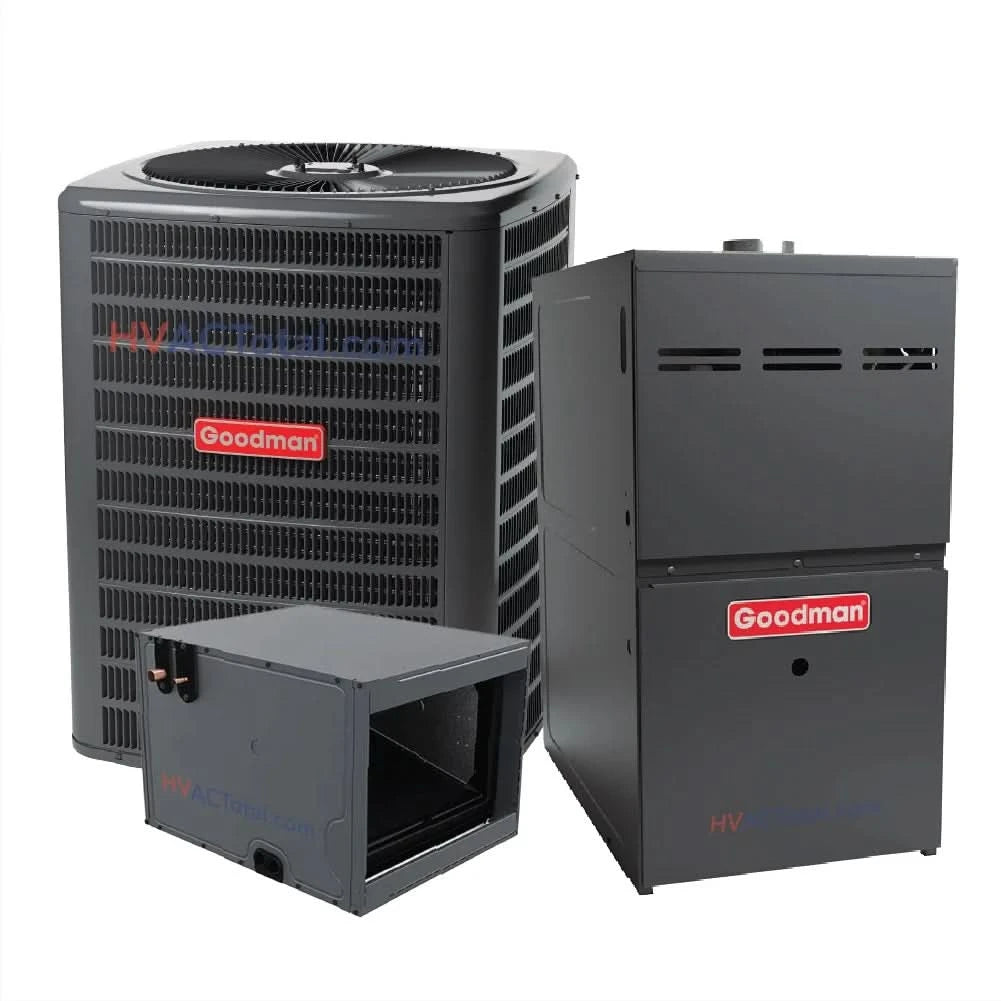

Designed for reliability and energy efficiency, the Goodman 4 Ton 13.4 SEER2 AC & 80% AFUE 120,000 BTU Gas Furnace System - Horizontal, R32 (GLXS3BN4810) provides exceptional year-round comfort for larger homes. Its horizontal configuration is ideal for installations in spaces like attics or crawl spaces.
Key Features of the Goodman 4 Ton 13.4 SEER2 AC:
- Energy-Efficient Compressor: Firstly, it enhances cooling performance while minimizing energy consumption.
- Refrigerant Pre-Charge: Also, it comes fully charged for 15 feet of tubing, simplifying installation.
- Enhanced Coils: Furthermore, it features copper tubing and aluminum fins for durability and efficient heat exchange.
- Factory-Installed Components: Additionally, it includes filter drier and high-pressure switch for improved safety.
- Extended Component Life: High-quality capacitors and enclosed contactors for long-term reliability.
- Certifications: AHRI Certified and ETL Listed, ensuring compliance with industry standards.
Cabinet Features of the Goodman 4 Ton 13.4 SEER2:
-
Weather-Resistant Finish: Architectural Gray powder paint withstands 500-hour salt-spray testing.
- Improved Airflow: Venturi design boosts airflow velocity for better cooling performance.
- Durability: Steel louver coil guard and hurricane-rated design for enhanced protection.
- Maintenance-Friendly: Single-panel access to controls simplifies service and upgrades.
Evaporator Coil - CHPTA6030D3:
- All-Aluminum Coil: Rust-resistant design optimized for R-32 refrigerant for superior performance.
- Horizontal Configuration: Compact 21-inch depth for easier attic and confined space installations.
- Thermal Efficiency: Foil-faced insulation reduces condensation and boosts energy efficiency.
- Advanced Drainage: Thermoplastic drain pan with UV resistance prevents rust and ensures durability.
- Service Accessibility: Single front access panel for easy maintenance and coil adjustments.
- Certifications: AHRI Certified and ETL Listed for guaranteed performance and safety.

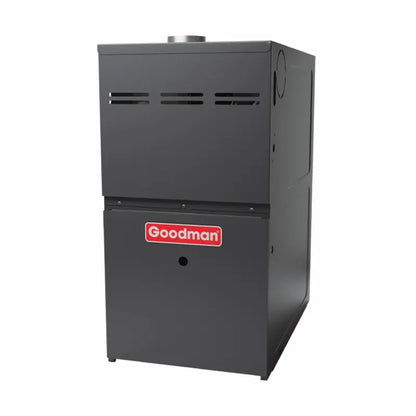

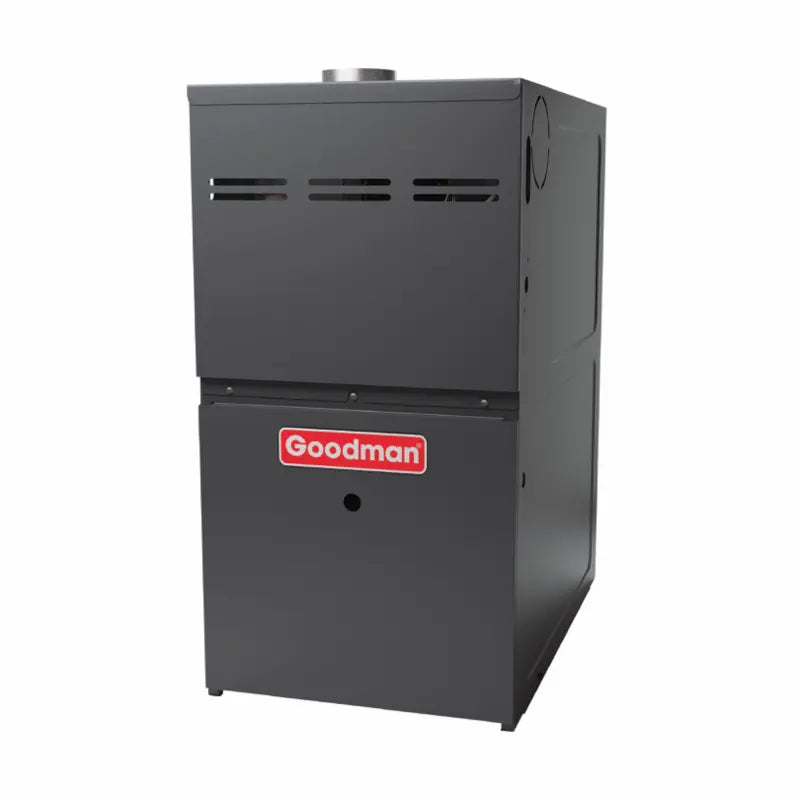

Gas Furnace - GM9S801205DN:
- 80% AFUE Efficiency: Moreover, Goodman 4 Ton 13.4 SEER2 delivers reliable heating with reduced operational costs.
- Durable Igniter: Designed for a long lifespan and dependable operation.
- Quiet and Efficient Circulation: In addition, it ensures even heating with minimal noise.
- Smart Diagnostics: Self-diagnostic control board simplifies troubleshooting and maintenance.
- Eco-Friendly Design: Compatible with electronic air cleaners and humidifiers for improved indoor air quality.
- Simple Installation: Lastly, multi-position configuration supports horizontal installations.
In conclusion, the Goodman 4 Ton 13.4 SEER2 AC & 80% AFUE 120,000 BTU Gas Furnace System offers a perfect balance of performance, reliability, and energy efficiency. Its horizontal configuration makes it a versatile solution for challenging installation spaces while delivering exceptional comfort year-round
-
AHRI Reference 215331621 AC Model Number GLXS3BN4810 SEER 2 13.4 Unit Height 39.5 in Unit Width 29 in Unit Depth 29 in Unit Weight 188 lb Cooling Capacity Nominal 48,000 Btu/H Max Overcurrent Protection 40A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Scroll Refrigerant Type R-32 Evaporator Coil Model Number CHPTA6030D3 Tonnage 5 Unit Height 24.5 in Unit Width 30 in Unit Depth 21 in Cased/Uncased Cased Coil Application Horizontal A Refrigerant Type R-32 Gas Furnace Model Number GM9S801205DN AFUE 80% Unit Height 33.375 in Unit Width 24.5 in Unit Depth 28 in Unit Weight 132 lb Cooling Capacity Nominal 60,000 Btu/H Max Overcurrent Protection 20 A Installation Configuration Upflow/Horizontal Power Voltage 115 V Motor Speed Type Nine Speed ECM -
-
