Goodman

SKU: Model: GLXS3BN4810 / CHPTA4830C3 / GR9S800804CN

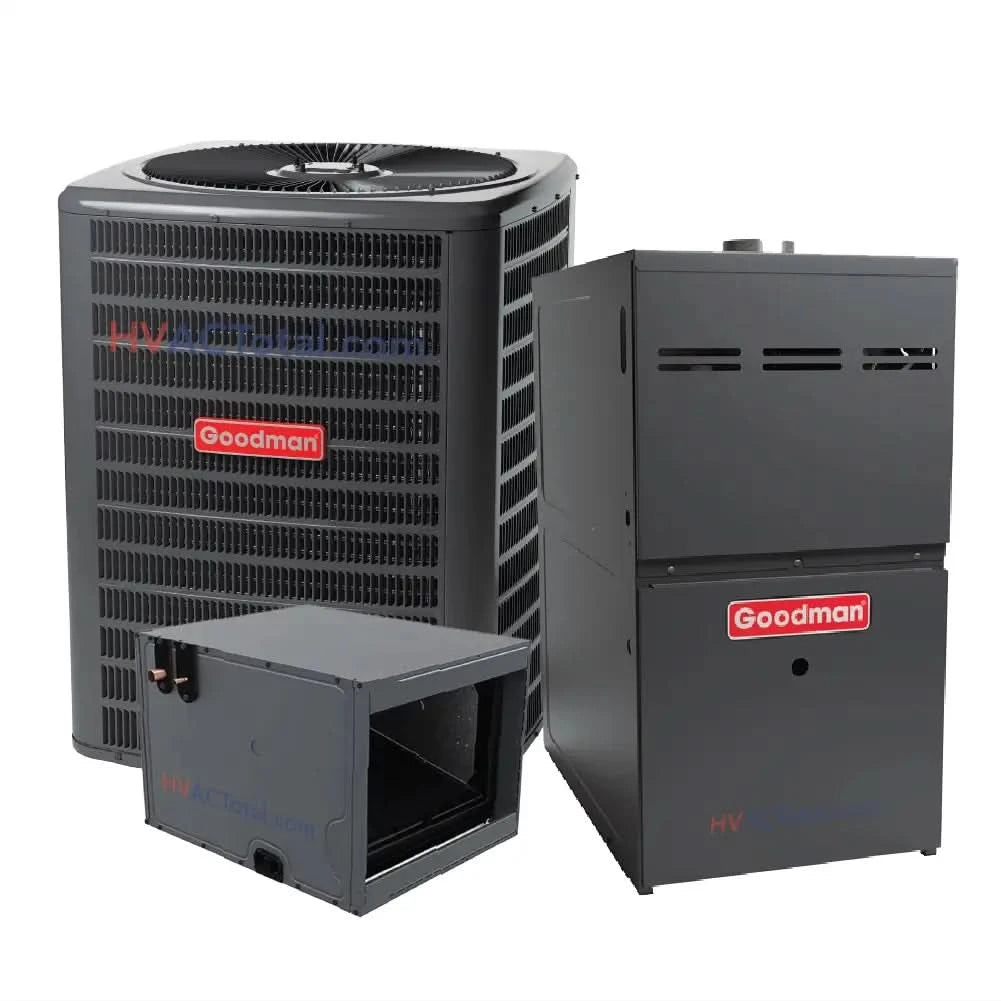

Goodman 4 Ton 13.4 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System - Horizontal, R32

Goodman 4 Ton 13.4 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System - Horizontal, R32

Benefits

  • 🚚 Fast & Free Shipping | 🔄 Easy Returns | ✔️Quality Guarantee | 🛡️ 10 Year Warranty with online registration
  • Complete Air conditioner & furnace system setup
  • Whisper-quiet comfort with fast, easy installation & maintenance
  • Furnace operates with natural gas and propane (Kit required)
  • ECM Blower system utilizing a 9-speed configuration
  • 21" cabinet width furnace, fits in compact spaces for easy installation
  • Metal vent provides safe & efficient air exhaust
Regular price $4,909.00
Regular price Sale price $4,909.00
Sale Sold out
Add to Cart for a Discount. 100% Privacy – We Do Not Share Your Personal Info.

Guaranteed Safe Checkout

Need Help?

Call, chat or email us anytime!
View full details
  • The Goodman 4 Ton 13.4 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System - Horizontal (GLXS3BN4810) combines robust heating and cooling performance, ideal for residential use. Designed for horizontal installations, it provides year-round comfort with energy-saving features.

    Key Features of the Goodman 4 Ton 13.4 SEER2 AC:

    • Energy Efficiency: Energy-efficient compressor ensures powerful cooling with reduced energy consumption.
    • Pre-Charged Refrigerant: Furthermore, it is fully charged for 15 feet of tubing, simplifying installation.
    • Advanced Coil Design: Copper tube and enhanced aluminum fin coil (5mm) optimize heat transfer for greater performance.
    • Durability: Factory-installed filter drier, high-pressure switch, and enclosed contactor extend system life.
    • Ease of Maintenance: Sweat connection service valves with accessible gauge ports for easy servicing.
    • Certifications: Additionally, AHRI Certified and ETL Listed for reliability and safety.

    Cabinet Features of the Goodman 4 Ton 13.4 SEER2:

    • Removable Grille-Style Top: Compliant with UL 60335-2-40 for safety and ease of access.
    • Optimized Airflow: Venturi design increases airflow velocity for enhanced cooling.
    • Durable Finish: Architectural Gray powder-paint with 500-hour salt-spray approval ensures long-lasting durability.
    • Protection: Steel louver coil guard and wire fan discharge grille protect internal components.
    • Convenient Access: Top and side access panels for easy maintenance and space for field-installed accessories.

    Evaporator Coil - CHPTA4830C3:

    • All-Aluminum Construction: Optimized for R-32 refrigerant, providing excellent thermal performance.
    • Factory-Installed Features: Moreover, it includes thermal expansion valves and check flowrator for improved cooling and heat pump functionality.
    • Compact and Accessible: Furthermore, 21" depth for easier attic installations with a front access panel for maintenance.
    • Energy Efficiency: Foil-faced insulation reduces cabinet condensation and energy loss.
    • Durability: In addition, UV-resistant thermoplastic drain pan with low water retention design ensures longer life.

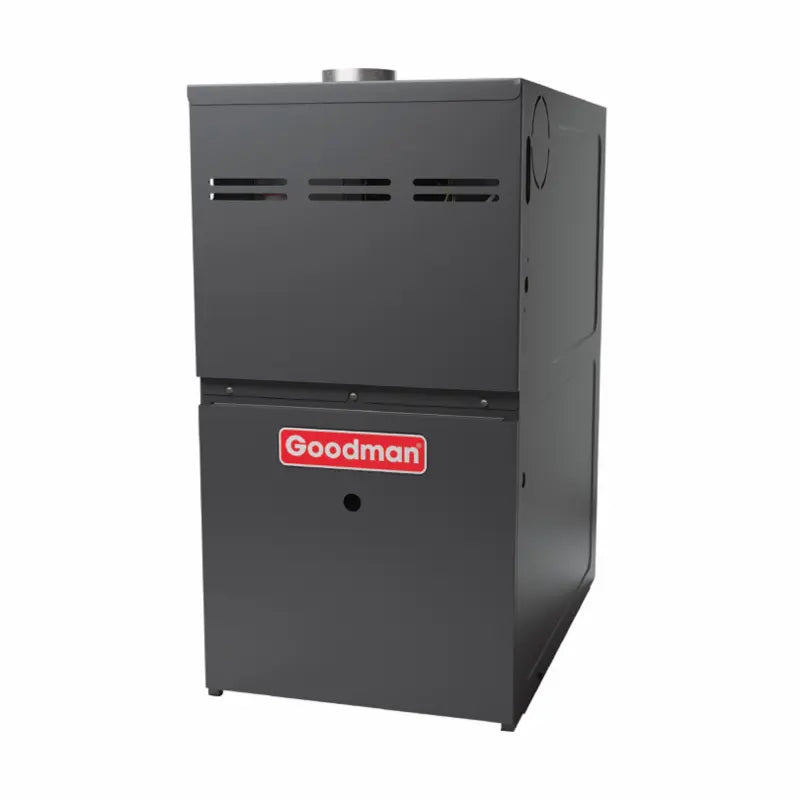

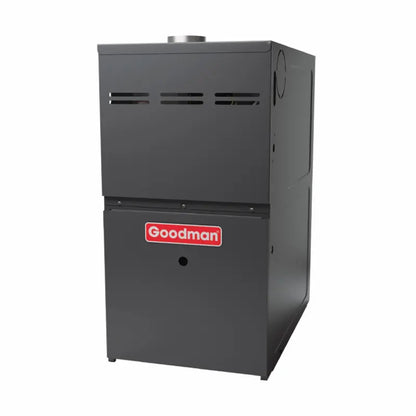

    Gas Furnace - GR9S800804CN:

    • High Efficiency: 80% AFUE rating for reduced heating costs while maintaining comfort.
    • Quiet Operation: Energy-efficient, quiet circulation system for improved indoor comfort.
    • Durability and Reliability: Also, it has long-lasting igniter life and faster condensate water drainage to prevent leaks.
    • Environmental Impact: Lower NOx emissions for cleaner air.
    • Flexibility: Lastly, it operates with two-stage or single-stage thermostats and includes provisions for electronic air cleaners and humidifiers.

    Overall, the Goodman 4 Ton 13.4 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System offers excellent energy efficiency, robust performance, and ease of maintenance, making it an ideal choice for efficient heating and cooling in residential settings

  • AHRI Reference 215277707
    AC Model Number GLXS3BN4810
    SEER 2 13.4
    Tonnage 4
    Unit Height x Width x Depth 39.5 x 29 x 29 in
    Unit Weight 188 lb
    Cooling Capacity Nominal 48,000 Btu/H
    Max Overcurrent Protection 40A
    Power Voltage 208/230 V
    Compressor Stages Single Stage
    Compressor Type Scroll
    Refrigerant Type R-32
    Evaporator Coil Model Number CHPTA4830C3
    Tonnage 3.5 - 4
    Unit Height x Width x Depth 21 x 30 x 21 in
    Cased/Uncased Cased
    Coil Application Horizontal
    Refrigerant Type R-32
    Gas Furnace Model Number GR9S800804CN
    Height x Width x Depth 33-3/8 x 21 x 28 in
    Weight 132 lb
    AFEU 80%
    Configuration Upflow/Horizontal
    BtuH Input 80,000
    BtuH Output 64,000
    Tons 4
    CFM 1,600
    Min. Circuit Amps 11.3
    Motor Type ECM
    Stages Single
    LoNox No
