The Goodman 4 Ton 13.4 SEER2 AC & 96% AFUE 120K BTU Gas Furnace System - Upflow (GLXS3BN4810) delivers superior heating and cooling efficiency. Designed for upflow installations, it combines energy-saving features with durable construction to provide long-term reliability and comfort.

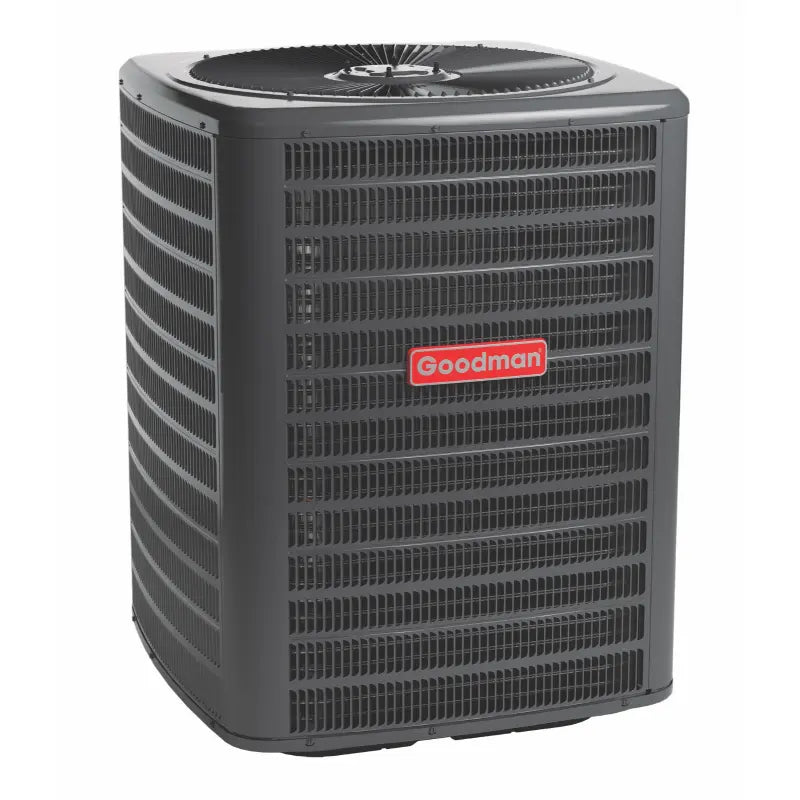

Key Features of the Goodman 4 Ton 13.4 SEER2 AC:
- Energy-Efficient Compressor: Minimizes energy usage while providing powerful cooling.
- Pre-Charged Refrigerant: Fully charged for 15 feet of tubing for easy installation.
- Advanced Coil Design: Copper tube and 5mm enhanced aluminum fin coil ensure optimal heat transfer.
- Durability: Includes factory-installed filter drier, high-pressure switch, enclosed contactor, and extended-life capacitors.
- Maintenance-Friendly: Sweat connection service valves with easy-to-access gauge ports for quick servicing.
- Certifications: In addition, AHRI Certified and ETL Listed for performance and safety.
Cabinet Features of the Goodman 4 Ton 13.4 SEER2:
- Removable Grille-Style Top: Compliant with UL 60335-2-40 for safety and maintenance convenience.
- Enhanced Airflow: Venturi design increases airflow velocity for better cooling efficiency.
- Durable Finish: Architectural Gray powder-paint finish with 500-hour salt-spray approval for extended durability.
- Protection: Steel louver coil guard and wire fan discharge grille protect internal components.
- Convenient Access: Top and side maintenance access with space for field-installed accessories.
- Multi-Position Installation: Moreover, it is suitable for upflow, horizontal left, or right configurations.
- Flexible Venting: Certified for both direct vent (2-pipe) and non-direct vent (1-pipe) setups.

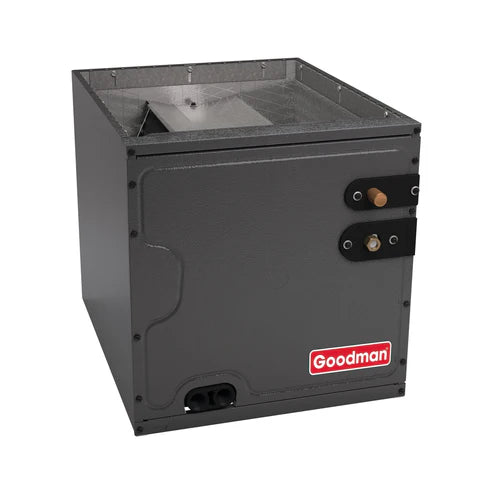

Evaporator Coil - CAPTA6030D3:
- All-Aluminum Design: Optimized for R-32 refrigerant for better thermal performance and longevity.
- Factory-Installed Features: Also, it includes thermal expansion valves and check flowrator for enhanced cooling and heat pump efficiency.
- Easy Access: Additionally, 21” depth for easy attic access, with a single front access panel for convenience.
- Energy Efficiency: Foil-faced insulation reduces cabinet condensation and energy loss.
- Durability: UV-resistant thermoplastic drain pan with low-water retention design for lasting reliability.

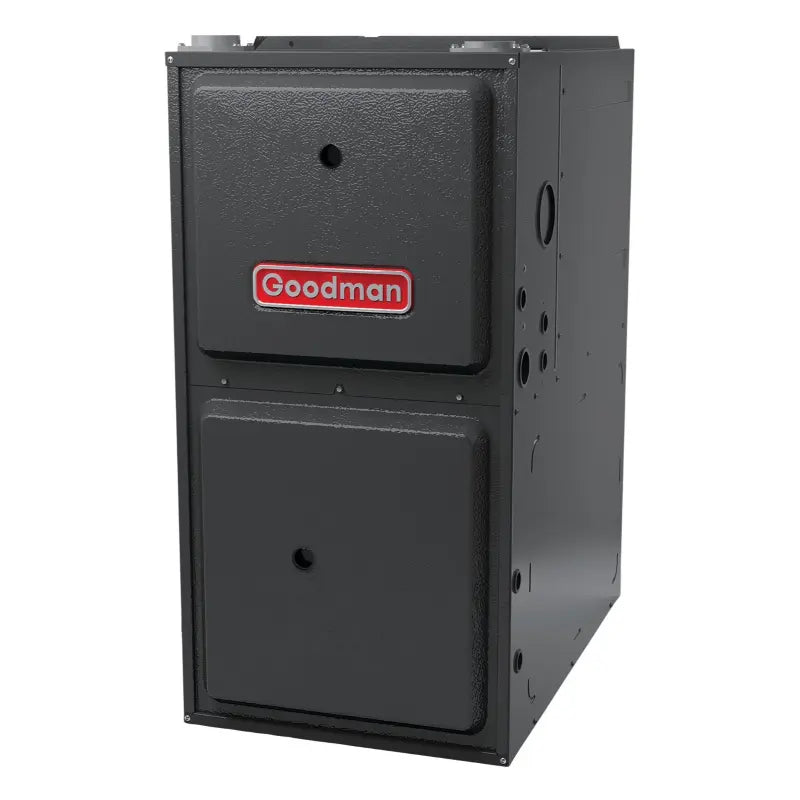

Gas Furnace - GR9S961205DN:
- High Efficiency: 96% AFUE rating ensures excellent heating performance while reducing energy costs.
- Quiet Operation: Energy-efficient blower circulates air quietly and efficiently.
- Reliability: Long-lasting igniter, faster condensate drainage, and leak prevention features.
- Flexibility: Compatible with electronic air cleaners and humidifiers for improved air quality.
- Ease of Use: Lastly, it is self-diagnostic control board and easy installation provide hassle-free setup.
In conclusion, the Goodman 4 Ton 13.4 SEER2 AC & 96% AFUE 120K BTU Gas Furnace System is a highly efficient, durable, and easy-to-maintain HVAC solution. Overall, with its energy-saving features, reliable performance, and flexible installation options, it’s an ideal choice for homeowners looking for efficient heating and cooling comfort
-
AHRI Reference 215277681 AC Model Number GLXS3BN4810 SEER 2 13.4 Tonnage 4 Unit Height x Width x Depth 39.5 x 29 x 29 in Unit Weight 188 lb Cooling Capacity Nominal 48,000 Btu/H Max Overcurrent Protection 40A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Scroll Refrigerant Type R-32 Evaporator Coil Model Number CAPTA6030D3 Tonnage 5 Unit Height x Width x Depth 30 x 24.5 x 21 in Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GR9S961205DN Height x Width x Depth 34.5 x 24.5 x 28.75 in Weight 156 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 120,000 BtuH Output 115,320 Tons 3 - 5 CFM 2,000 Min. Circuit Amps 16.7 Vent Size 3" Motor Type ECM Stages Single LoNox No -
-
