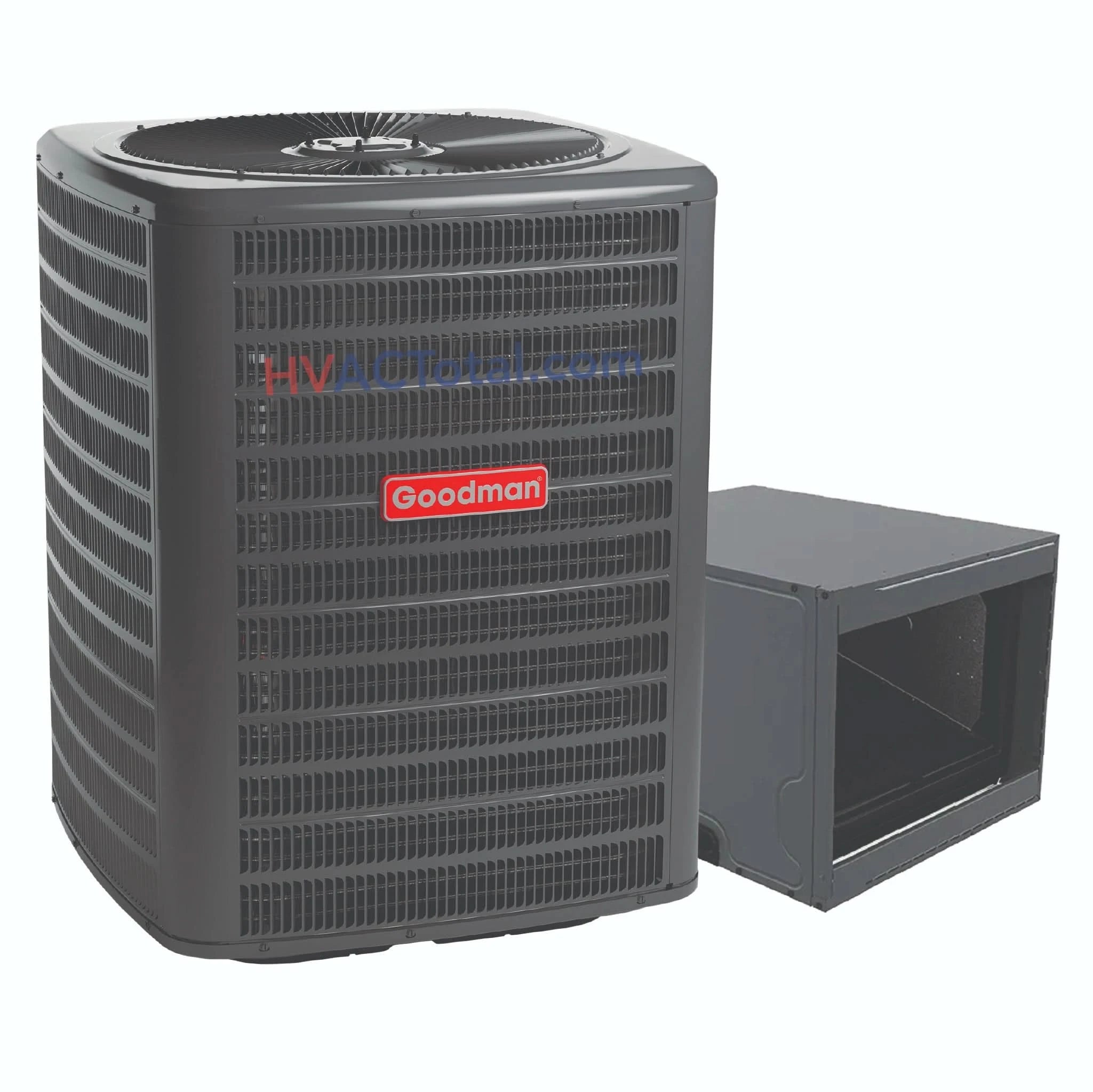

The 4 Ton AC Goodman 13.4 SEER2 & 21" Horizontal Cased Coil is engineered for energy efficiency and long-term reliability, featuring high-performance components for effective cooling.

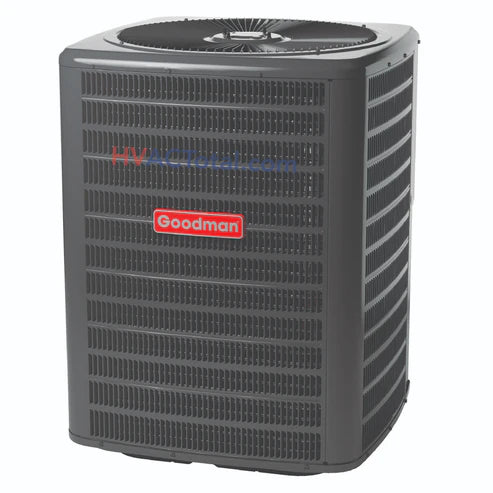

4 Ton AC Goodman - GLXS3BN4810 Benefits:
- Energy-Efficient Compressor: Designed to reduce energy consumption while providing reliable cooling.
- Fully Charged for 15' of Tubing Length: Simplifies the installation process.
- Copper Tube/Enhanced Aluminum Fin Coil (5mm diameter): Maximizes heat transfer for optimal cooling performance.
- Factory-Installed Filter Drier: Moreover, protects the system from moisture, ensuring longevity.
- Sweat Connection Service Valves: Easy access to gauge ports for simple maintenance.
- Enclosed Contactor with Lug Connection & High-Pressure Switch: Also, it provides safe and reliable operation.
- Capacitors with Extended Life: Durable design reduces maintenance costs.
- AHRI Certified & ETL Listed: Lastly, meets performance and safety standards.
Cabinet Features of the 4 Ton Coil:
- Removable Grille-Style Top Design: Compliant with UL 60335-2-40 for enhanced safety.
- Venturi Design for Increased Airflow Velocity: Boosts performance efficiency.
- Architectural Gray Powder-Paint Finish: 500-hour salt-spray approval for resistance to corrosion.
- Steel Louver Coil Guard: Protects the coil from external damage.
- Top and Side Maintenance Access: Provides easy service access.
- Single-Panel Access to Controls: Additionally, it allows for convenient field-installed accessories.
4 Ton Coil - CHPTA4830C3 Features:
- All-Aluminum Evaporator Coil: Offers durability and corrosion resistance.
- Optimized for R-32 Refrigerant: Efficient and environmentally friendly refrigerant.
- Factory-Installed Thermal Expansion Valves: Ideal for cooling and heat pump applications.
- Standardized Copper Suction Tube Stub Length: Simplifies installation.
- Check Flowrator for Cooling and Heat Pump Applications: Ensures proper system flow.
- Foil-Faced Insulation: Reduces cabinet condensation for better performance.
- UV-Resistant Thermoplastic Drain Pan: Durable and easy to maintain.
In summary, the 4 Ton AC Goodman 13.4 SEER2 & 21" Horizontal Cased Coil delivers high-efficiency performance, easy installation, and long-lasting durability, making it a solid choice for your cooling needs.
-
AHRI 215288001 AC Model Number GLXS3BN4810 SEER2 13.4 Tons 4 BTU 48,000 Volts 208/230 Phase Single Motor Type PSC Min. Circuit Amps 25.6 Max Fuse Size 40 Liquid Connection 3/8" Suction Fitting 1.125" Refrigerant R-32 Width 29" Height 39.5" Depth 29" Weight 188 Evaporator Coil Model Number CHPTA4830C3 Unit Depth 21 in Unit Height 21 in Unit Width 30 in Cased/Uncased Cased -
-
