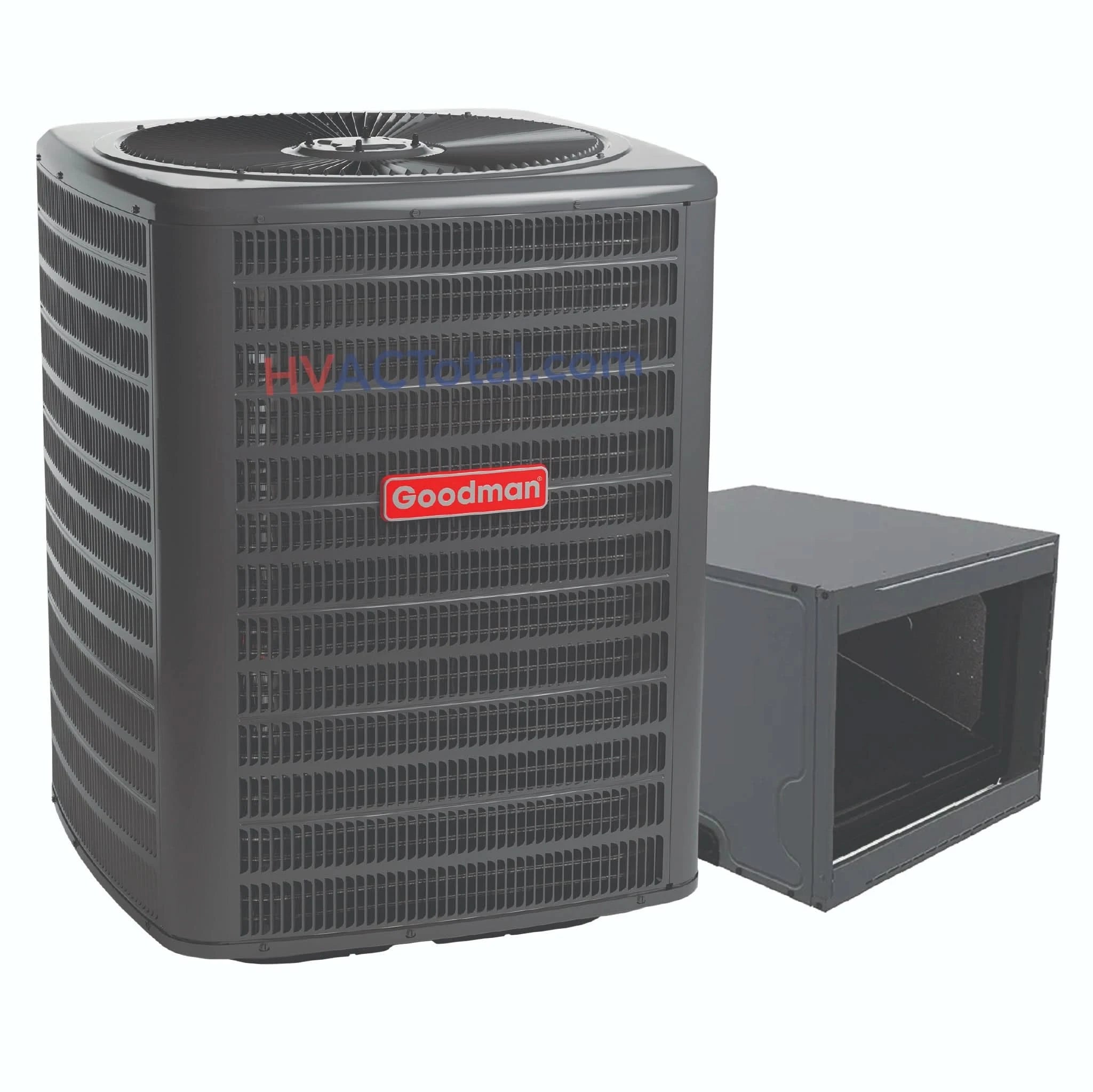

The 4 Ton AC Goodman 13.4 SEER2 & 24.5" Horizontal Cased Coil is engineered for high energy efficiency and lasting performance, with advanced features for optimal cooling and reliability.
4 Ton AC Goodman - GLXS3BN4810 Benefits:
- Energy-Efficient Compressor: To begin with, it lowers energy consumption while ensuring effective cooling.
- Fully Charged for 15' of Tubing Length: Simplifies installation and reduces setup time.
- Copper Tube/Enhanced Aluminum Fin Coil (5mm diameter): Moreover, Improves heat transfer for efficient cooling.
- Factory-Installed Filter Drier: Protects the system by removing moisture and contaminants.
- Sweat Connection Service Valves: Furthermore, Provides easy access for maintenance.
- Enclosed Contactor with Lug Connection & High-Pressure Switch: Ensures secure and safe operation.
- Capacitors with Extended Life: Minimizes maintenance and ensures long-term performance.
- AHRI Certified & ETL Listed: Lastly, Meets industry standards for performance and safety.
Cabinet Features of the 4 Ton Coil:
- Removable Grille-Style Top Design: Compliant with UL 60335-2-40, ensuring safety and ease of maintenance.
- Venturi for Increased Airflow Velocity: Enhances cooling efficiency by increasing airflow speed.
- Attractive Architectural Gray Powder-Paint Finish: Approved for 500-hour salt-spray resistance, ensuring durability.
- Steel Louver Coil Guard: Protects the coil, enhancing its longevity.
- Top and Side Maintenance Access: Facilitates easy servicing.
- Single-Panel Access to Controls: Provides space for additional field-installed accessories.
4 Ton Coil - CHPTA6030D3 Features:
- All-Aluminum Evaporator Coil: Resistant to corrosion for lasting performance.
- Optimized for R-32 Refrigerant: Designed to work efficiently with environmentally-friendly refrigerant.
- R-32 Sensor: Monitors performance for long-lasting coil lifespan.
- Factory-Installed Thermal Expansion Valves: Ideal for both cooling and heat pump systems.
- Check Flowrator: Ensures proper flow for cooling and heat pump applications.
- Horizontal Application: Designed for easier installation in various settings.
- 21" Depth for Easier Attic Access: Provides flexibility for installations in tight spaces.
- Foil-Faced Insulation: Reduces cabinet condensation, improving efficiency.
- Galvanized Leather Grain-Embossed Finish: Durable and corrosion-resistant.
- UV-Resistant Thermoplastic Drain Pan: Designed to withstand UV degradation for durability.
Therefore, the 4 Ton AC Goodman 13.4 SEER2 & 24.5" Horizontal Cased Coil offers exceptional cooling performance, energy efficiency, and reliability, with a focus on easy installation and maintenance.
-
AHRI 215288000 AC Model Number GLXS3BN4810 SEER2 13.4 Tons 4 BTU 48,000 Volts 208/230 Phase Single Motor Type PSC Min. Circuit Amps 25.6 Max Fuse Size 40 Liquid Connection 3/8" Suction Fitting 1.125" Refrigerant R-32 Width 29" Height 39.5" Depth 29" Weight 188 Evaporator Coil Model Number CHPTA6030D3 Unit Depth 21 in Unit Height 24.5 in Unit Width 30 in Cased/Uncased Cased -
-
