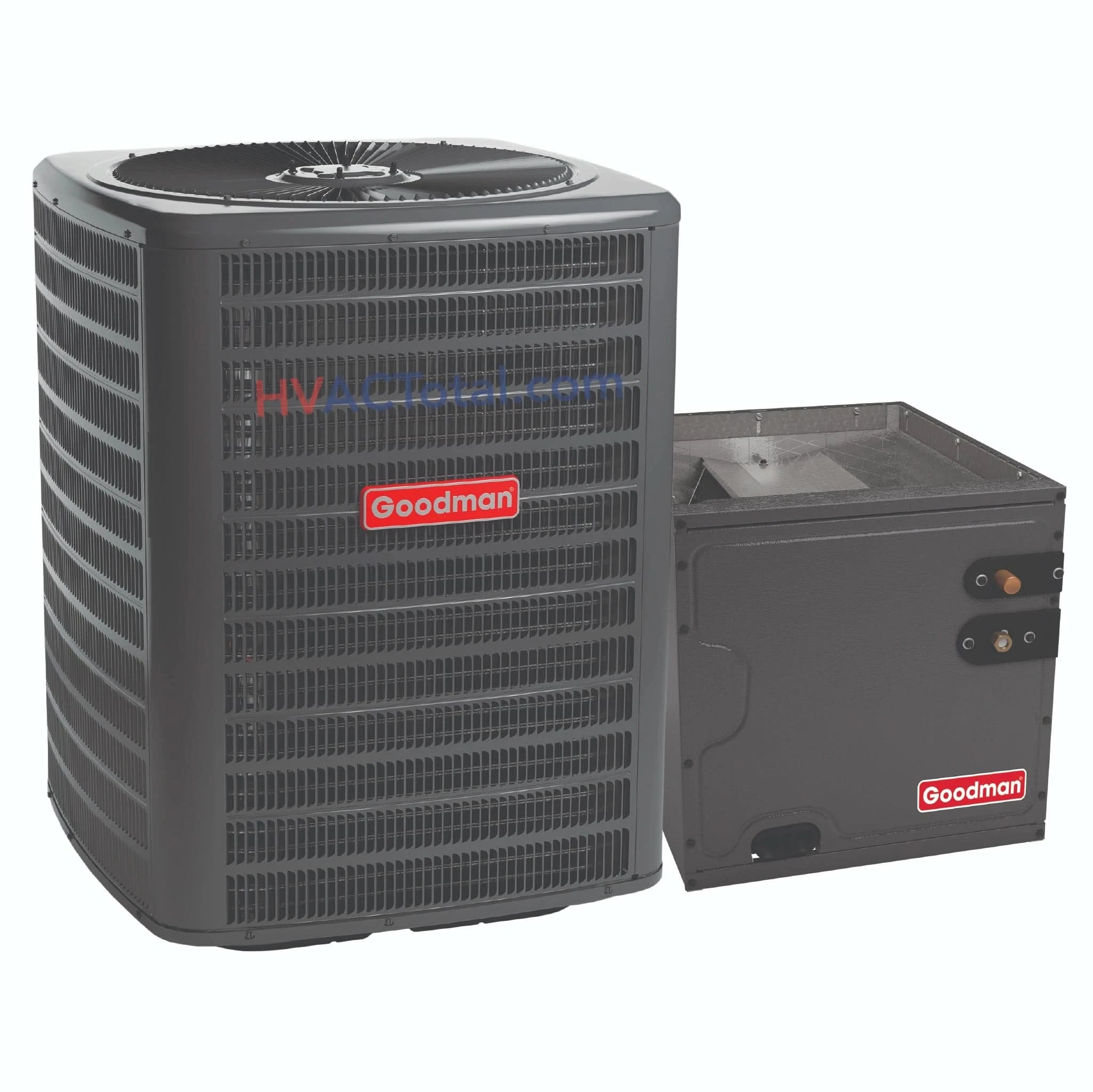

GLXS5BA4810
- Product Benefits:
- Energy-Efficient Compressor
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
- Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
CAPTA6030C3
- Product Benefits:
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifold including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valves for cooling and heat pump applications
- Standardized copper suction tube stub length
- Check flowrator for cooling and heat pump applications
- Horizontal application
- 21" depth for easier attic access
- Single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pan featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL Listed
- Product Benefits:
-
AHRI 215377721 AC Model Number GLXS5BA4810 SEER2 15.2 Tons 4 BTU 48,000 Volts 208/230 Phase Single Motor Type PSC Min. Circuit Amps 25.5 Max Fuse Size 40 Liquid Connection 3/8" Suction Fitting 1.125" Refrigerant R-32 Width 35.5" Height 36.5" Depth 35.5" Weight 257 Evaporator Coil Model Number CAPTA6030C3 Unit Depth 21 in Unit Height 30 in Unit Width 21 in Tonnage 5 in Cased/Uncased Cased -
-
