The Goodman 4 Ton 14.3 SEER2 AC & 96% AFUE 100K BTU Gas Furnace System - Upflow, R32 (GLXS4BA4810) offers energy-efficient cooling and heating solutions, ideal for residential and light commercial applications. This high-performance system combines durability, reliability, and environmentally friendly features to maximize comfort and efficiency.
Key Features of the Goodman 4 Ton 14.3 SEER2 AC:
- Energy-Efficient Compressor: Optimized for reducing energy usage while ensuring consistent cooling performance.
- Pre-Charged Refrigerant: System is pre-charged for 15 feet of tubing, allowing quick and hassle-free installation.
- Copper Tube with Enhanced Aluminum Fin Coil: Improves heat transfer and durability with 5mm tubing.
- Factory-Installed Filter Drier: Protects against moisture and contaminants in the system.
- Easy Maintenance Access: Sweat connection valves provide simple access to gauge ports.
- Extended Life Capacitors: Ensure durability and long-lasting performance.
- Certifications: AHRI Certified and ETL Listed for safety and efficiency.
Cabinet Design of the Goodman 4 Ton 14.3 SEER2:
- Removable Grille-Style Top: Designed for compliance with UL 60335-2-40 for airflow and safety.
- Venturi Design: Enhances airflow velocity for optimal performance.
- Architectural Gray Finish: Powder-painted for durability and 500-hour salt-spray resistance.
- Hurricane-Ready: Meets 2023 Florida Building Code for hurricane winds with anchor brackets.
- Flexible Installation: Supports upflow, horizontal left, and right configurations.
- Versatile Venting: Certified for both direct vent (2-pipe) and non-direct vent (1-pipe) setups.
- Heavy-Gauge Steel Cabinet: Corrosion-resistant finish ensures long-lasting durability.
- Fully Insulated Heat Exchanger: Reduces heat loss and noise, improving overall performance.
Evaporator Coil - CAPTA6030C3:
- All-Aluminum Construction: Provides superior corrosion resistance and extended durability.
- R-32 Refrigerant Optimization: Equipped with sensors and circuits designed for use with R-32 refrigerant.
- Factory-Installed Thermal Expansion Valves: Ensures reliable performance in cooling and heat pump applications.
- Compact Design: 21-inch depth facilitates easier attic and tight space installations.
- UV-Resistant Drain Pan: Goodman 4 Ton 14.3 SEER2 minimizes water retention and reduces the risk of leaks or damage.
- Single Front Access Panel: Simplifies maintenance and servicing.
- Certifications: AHRI Certified and ETL Listed.

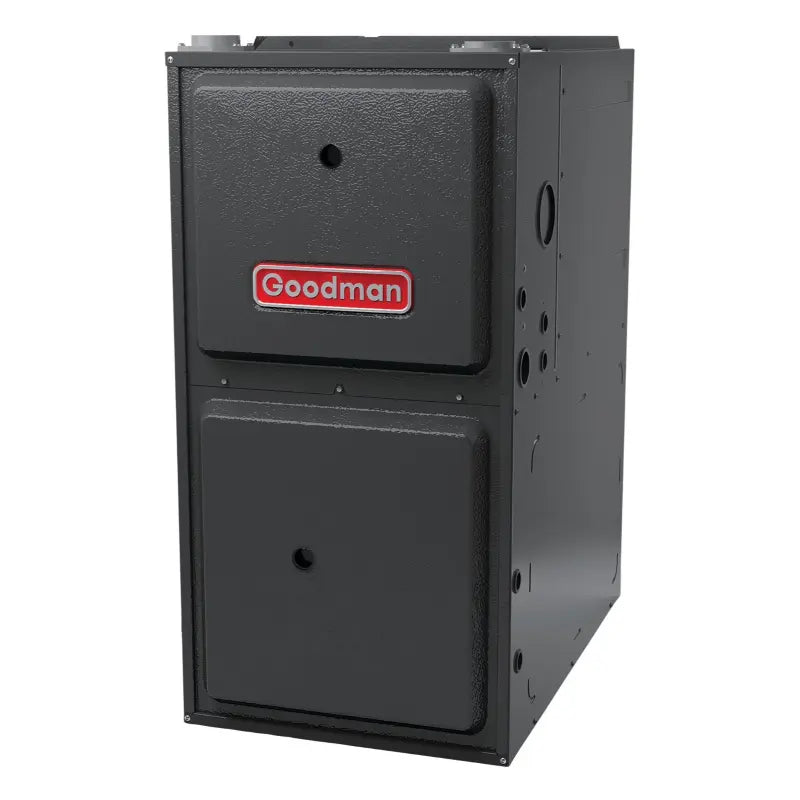

Gas Furnace - GR9T961004CN:
- 96% AFUE Efficiency: Also, it converts 96% of fuel into usable heat, offering significant energy savings.
- Two-Stage Heating: Furthermore, it allows precise control for improved comfort and energy efficiency.
- Quiet Operation: Designed to reduce noise levels for a comfortable home environment.
- Self-Diagnostic Control Board: Additionally, it simplifies troubleshooting and improves system reliability.
- Environmentally Friendly Design: Low NOx emissions help meet stringent environmental standards.
- Tax Credit Eligible: Meets federal energy-efficiency requirements for potential savings.
The Goodman 4 Ton 14.3 SEER2 AC & 96% AFUE 100K BTU Gas Furnace System provides a perfect blend of innovation, efficiency, and durability, making it an excellent choice for homeowners looking to enhance comfort while lowering energy costs
-
AHRI Reference 214860073 AC Model Number GLXS4BA4810 SEER 2 13.8 Tonnage 4 Unit Height x Width x Depth 35.75 x 35.5 x 35.5 in Unit Weight 211 lb Cooling Capacity Nominal 48,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 25.19 Max Fuse Size 40 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CAPTA6030C3 Tonnage 5 Unit Height x Width x Depth 30 x 21 x 21 in Unit Weight 66 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Upflow/Downflow Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9T961004CN Height x Width x Depth 34.5 x 21 x 28.75 in Weight 140 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 100,000 BtuH Output 96,000 Tons 1.5 - 4 CFM 1,600 Min. Circuit Amps 14.4 Vent Size 2" - 3" Motor Type ECM Stages Two LoNox No -
-
