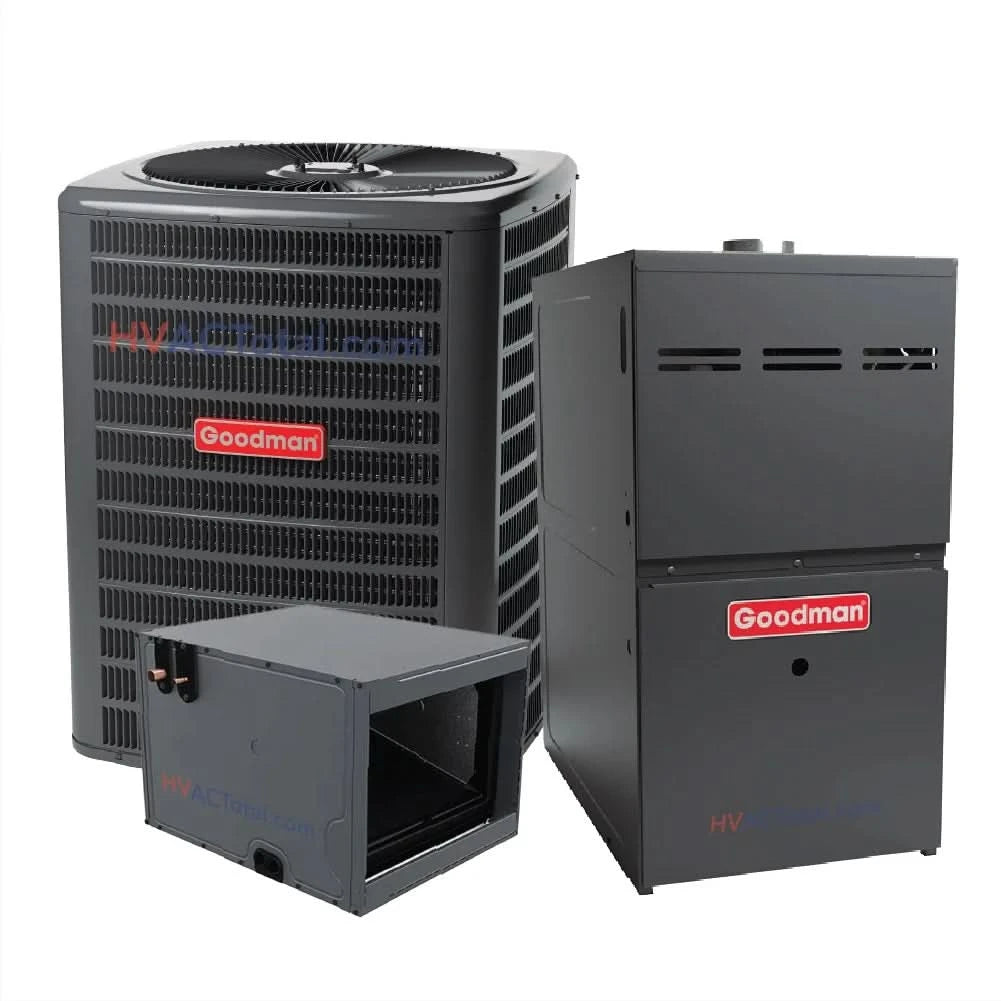

The Goodman 4 Ton 14.5 SEER2 AC & 80% AFUE 100K BTU Gas Furnace System (GLXS4BA4810) in the horizontal configuration is designed to provide reliable and efficient cooling and heating in residential spaces. Here's a breakdown of its features and benefits:
Key Features of the Goodman 4 Ton 14.5 SEER2 AC:
- Energy-Efficient Compressor: Optimizes energy use without sacrificing performance.
- Fully Pre-Charged for Installation: Ready for up to 15 feet of tubing length to simplify installation.
- Copper Tube & Enhanced Aluminum Fin Coil (5mm diameter): Improves heat transfer and durability.
- Factory-Installed Filter Drier: Helps protect the system from contaminants.
- High-Performance Components: Includes sweat connection service valves, an enclosed contactor with lug connection, and a high-pressure switch for added durability.
- Capacitors with Extended Life: Ensures long-term reliability.
- Certifications: AHRI Certified and ETL Listed for performance and safety.
System Highlights of the Goodman 4 Ton 14.5 SEER2:
- Energy Efficiency: The system offers 14.5 SEER2 for cooling and 80% AFUE for heating, ensuring effective performance while keeping energy costs low.
- Environmentally Friendly: Uses R-32 refrigerant, reducing the system’s environmental impact compared to traditional refrigerants.
- Durability and Reliability: Built with corrosion-resistant materials and designed for long-term performance, this system is ideal for residential applications in varied climates.
- Convenient Installation: Pre-charged refrigerant and easy access to components streamline installation.
Evaporator Coil - CHPTA4830C3:
- All-Aluminum Construction: Corrosion-resistant and built to last.
- Optimized for R-32 Refrigerant: Designed for improved efficiency and eco-friendliness.
- R-32 Sensor for Extended Coil Life: Ensures the longevity of the coil and refrigerant system.
- Factory-Installed Thermal Expansion Valves: Supports both cooling and heat pump applications.
- User-Friendly Design: 21" depth for easier attic access and a single front access panel for maintenance.
- Rust-Resistant Drain Pan: Thermoplastic, UV-resistant, and featuring low water retention and secondary drain connections for improved drainage.
Gas Furnace - GR9S801005CN:
- High Reliability and Durability: Built for dependable operation.
- Faster Condensate Drainage: Prevents water leakage issues for long-term reliability.
- Quiet and Energy-Efficient Heating: Operates with lower NOx emissions for both efficiency and comfort.
- Dual-Stage Heating: Provides precise temperature control and energy savings with compatibility for two-stage or single-stage thermostats.
- Self-Diagnostic Control Board: Goodman 4 Ton 14.5 SEER2 simplifies troubleshooting with constant memory.
- Provisions for Electronic Air Cleaner & Humidifier: Easy integration for additional comfort features.
- Tax Credit Eligibility: Meets performance standards for energy efficiency rebates.
Overall, the Goodman 4 Ton 14.5 SEER2 AC & 80% AFUE 100K BTU Gas Furnace System is perfect for homes with limited vertical space or where horizontal installation is preferred. It offers an efficient, reliable solution for both heating and cooling with advanced features to ensure long-lasting performance and environmental responsibility
-
AHRI Reference 214860121 AC Model Number GLXS4BA4810 SEER 2 13.8 Tonnage 4 Unit Height x Width x Depth 35.75 x 35.5 x 35.5 in Unit Weight 211 lb Cooling Capacity Nominal 48,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 25.19 Max Fuse Size 40 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA4830C3 Tonnage 4 Unit Height x Width x Depth 21 x 30 x 21 in Unit Weight 78 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9S801005CN Height x Width x Depth 33-3/8 x 21 x 28 in Weight 132 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 100,000 BtuH Output 80,000 Tons 5 CFM 2,000 Min. Circuit Amps 11.3 Motor Type ECM Stages Single LoNox No -
-
