Model: GLXS4BA4810 / CHPTA4830C3 / GR9S801205DN

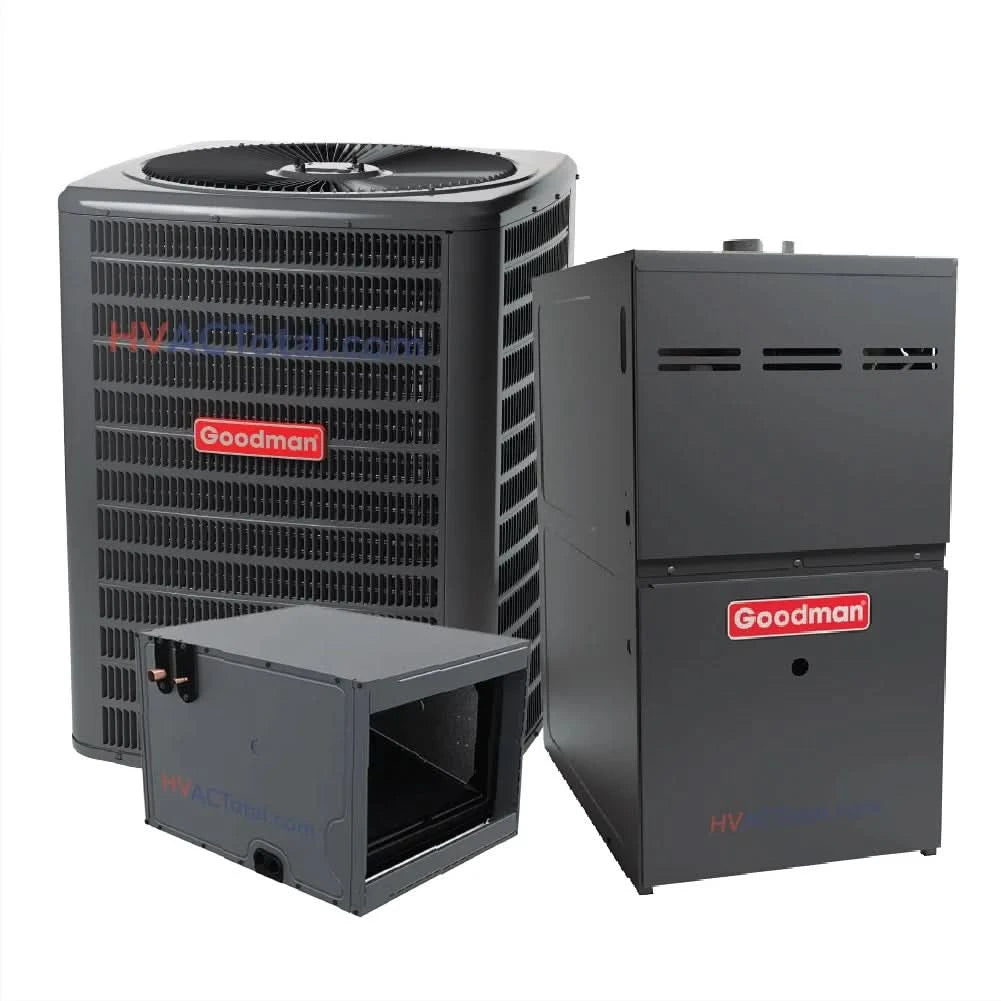

Goodman 4 Ton 14.5 SEER2 AC & 80% AFUE 120K BTU Gas Furnace System - Horizontal, R32
Goodman 4 Ton 14.5 SEER2 AC & 80% AFUE 120K BTU Gas Furnace System - Horizontal, R32

Couldn't load pickup availability
Got a question? Talk with our experts anytime
Call Us at 866-718-1799
Product Details
The Goodman 4 Ton 14.5 SEER2 AC & 80% AFUE 120K BTU Gas Furnace System - Horizontal, R32 (GLXS4BA4810) is a reliable and energy-efficient solution for homeowners seeking effective cooling and heating. This system combines robust construction, advanced features, and eco-friendly technology to provide long-lasting comfort.
Key Features of the Goodman 4 Ton 14.5 SEER2 AC:
- Energy-Efficient Compressor: Optimizes energy use while maintaining performance.
- Fully Charged for 15' Tubing: Ready for installation.
- Copper Tube & Enhanced Aluminum Coil: Moreover, it maximizes heat transfer and durability.
- Factory-Installed Filter Drier: Also, it protects system components
- Certifications: AHRI Certified, ETL Listed.
Cabinet Features of the Goodman 4 Ton 14.5 SEER2:
- Removable Grille Top: Compliant with UL 60335-2-40.
- Venturi for Increased Airflow: Improves cooling efficiency.
- Architectural Gray Powder-Coat Finish: Salt-spray resistant.
- Hurricane-Ready: Meets 2023 Florida Building Code when anchored (anchor kits available).
- Multi-Position Installation: Upflow or horizontal left/right configurations.
- Flexible Venting Options: Direct (2-pipe) or non-direct (1-pipe).
- Fully Insulated: Reduces noise and heat loss.
- Durable Steel Cabinet: Heavy-gauge construction with long-lasting finish.
Evaporator Coil - CHPTA4830C3:
- All-Aluminum Construction: Durable and corrosion-resistant.
- Optimized for R-32 Refrigerant: Eco-friendly with longer coil lifespan.
- Easy Installation: Goodman 4 Ton 14.5 SEER2 is 21" depth for attic access, with front access panel.
- Foil-Faced Insulation: Reduces condensation.
Gas Furnace - GR9S801205DN:
- Energy-Efficient & Quiet: Designed for minimal noise and energy savings.
- High Reliability: Durable igniter, self-diagnostic control, and long lifespan.
- Tax Credit Eligible: In addition, it meets energy efficiency standards.
- Provisions for Air Cleaner & Humidifier: Easy connections for added comfort.
In summary, the Goodman 4 Ton 14.5 SEER2 AC & 80% AFUE 120K BTU Gas Furnace System provides dependable climate control with energy savings and durability, making it a great investment for maintaining a comfortable home environment year-round
Specifications
AHRI Reference | 214860118 |
---|---|
AC Model Number | GLXS4BA4810 |
SEER 2 | 13.8 |
Tonnage | 4 |
Unit Height x Width x Depth | 35.75 x 35.5 x 35.5 in |
Unit Weight | 211 lb |
Cooling Capacity Nominal | 48,000 Btu/H |
Power Voltage | 208/230 V |
Phase | Single |
Motor Type | PSC |
Min Circuit Amps | 25.19 |
Max Fuse Size | 40 |
Liquid Connection | 3/8" |
Suction Fitting | 1-1/8" |
Refrigerant Type | R-32 |
Evaporator Coil Model Number | CHPTA4830C3 |
Tonnage | 4 |
Unit Height x Width x Depth | 21 x 30 x 21 in |
Unit Weight | 78 lb |
Liquid Connection | 3/8" |
Suction Fitting | 7/8" |
Coil Type | Cased |
Configuration | Horizontal |
Metering Device | TXV |
Refrigerant Type | R-32 |
Gas Furnace Model Number | GR9S801205DN |
Height x Width x Depth | 33-3/8 x 24.5 x 28 in |
Weight | 132 lb |
AFEU | 80% |
Configuration | Upflow/Horizontal |
BtuH Input | 120,000 |
BtuH Output | 96,000 |
Tons | 5 |
CFM | 2,000 |
Min. Circuit Amps | 11.3 |
Vent Size | 4" |
Motor Type | ECM |
Stages | Single |
LoNox | No |
Warranty & Shipping
Warranty
Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a properly certified professional adhering to city, state and federal laws.
Processing Time
We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.
Equipment Arrival
Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.
Making Notes on the Delivery Receipt
If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as "Clear."
If items or boxes are missing, mark the receipt as " Short" and list the missing items. We will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."
How Do I Handle a Damaged Shipment?
If any items are damaged, mark the receipt as "Damaged," specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company’s claims department directly to file a claim.
Documents
- //hvactotal.com/cdn/shop/files/GLXS4 Spec Manual
- //hvactotal.com/cdn/shop/files/GLXS4 Installation Manual
- //hvactotal.com/cdn/shop/files/GLXS4 Warranty Guide
- //hvactotal.com/cdn/shop/files/Horizontal Coil Installation
- //hvactotal.com/cdn/shop/files/CHPTA Coils repair parts
- //hvactotal.com/cdn/shop/files/A2L Sensor Dragonfly Installation
- //hvactotal.com/cdn/shop/files/GR9S80 Spec Sheet
- //hvactotal.com/cdn/shop/files/GR9S80 Installation Instructions
- //hvactotal.com/cdn/shop/files/GR9S80 Warranty
