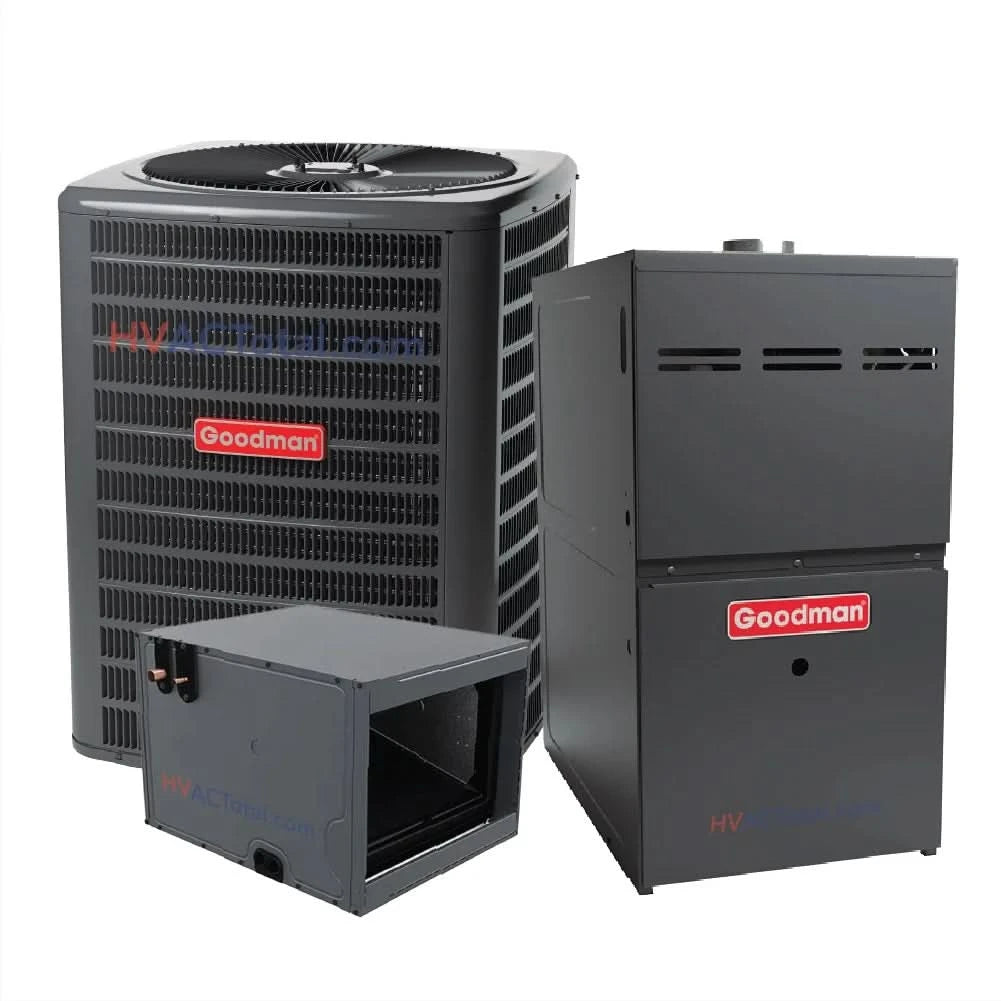

Goodman 4 Ton 14.5 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System - Horizontal, R32

$5,169.00

Found a better price?

From $430.75/mo with 🛒shopPay

Check your purchasing power

Works with natural gas or propane (conversion kit required).

High reliability & quality.

Designed, engineered, and assembled in the USA.

Product Details

The Goodman 4 Ton 14.5 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System - Horizontal, R32 (GLXS4BA4810) offers an excellent combination of energy efficiency, durability, and performance for year-round comfort. Designed with advanced features and robust construction, it meets rigorous standards for safety, reliability, and environmental sustainability.

Key Features of the Goodman 4 Ton 14.5 SEER2 AC:

Efficient Cooling: To begin with, energy-efficient compressor pre-charged for up to 15 feet of tubing.
Durable Coils: Furthermore, 5mm copper tube with enhanced aluminum fins for reliable heat exchange.
Reliable Design: High-pressure switch, enclosed contactor, and extended-life capacitors.
Certifications: AHRI Certified and ETL Listed for safety and performance.

Cabinet Features of the Goodman 4 Ton 14.5 SEER2:

Sturdy Build: Powder-coated finish with 500-hour salt-spray approval.
Improved Airflow: Venturi design for enhanced efficiency.
Easy Access: Single-panel controls and maintenance access.
Hurricane-Ready: Compliant with 2023 Florida Building Code.
Flexible Installation: Also, Goodman 4 Ton 14.5 SEER2 supports upflow, horizontal left, or horizontal right configurations.
Vent Options: Certified for both direct (2-pipe) and non-direct (1-pipe) venting.
Sturdy Construction: Heavy-gauge steel cabinet with minimal air leakage and fully insulated sections.

Evaporator Coil - CHPTA4830C3:

All-Aluminum Design: Corrosion-resistant and durable.
Optimized for R-32 Refrigerant: In addition, it includes a long-life R-32 sensor.
Efficient Cooling: Factory-installed thermal expansion valves and standardized copper stub.
Compact: Additionally, 21” depth for attic-friendly installation.
Low-Maintenance Features: Moreover, UV-resistant, rust-resistant drain pan with low water retention.

Gas Furnace - GR9S800804CN:

Reliable Heating: Durable igniter, quiet operation, and efficient heat circulation.
Energy Efficient: Low NOx emissions and compatibility with single or two-stage thermostats.
Self-Diagnostics: Control board with constant memory for easy troubleshooting.
Tax Credit Eligible: Lastly, it meets energy-efficiency standards.

Therefore, the Goodman 4 Ton 14.5 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System is engineered for reliability, ease of installation, and long-lasting comfort in any home

Specifications

AHRI Reference	214860130

AC Model Number	GLXS4BA4810
SEER 2	13.8
Tonnage	4
Unit Height x Width x Depth	35.75 x 35.5 x 35.5 in
Unit Weight	211 lb
Cooling Capacity Nominal	48,000 Btu/H
Power Voltage	208/230 V
Phase	Single
Motor Type	PSC
Min Circuit Amps	25.19
Max Fuse Size	40
Liquid Connection	3/8"
Suction Fitting	1-1/8"
Refrigerant Type	R-32

Evaporator Coil Model Number	CHPTA4830C3
Tonnage	4
Unit Height x Width x Depth	21 x 30 x 21 in
Unit Weight	78 lb
Liquid Connection	3/8"
Suction Fitting	7/8"
Coil Type	Cased
Configuration	Horizontal
Metering Device	TXV
Refrigerant Type	R-32

Gas Furnace Model Number	GR9S800804CN
Height x Width x Depth	33-3/8 x 21 x 28 in
Weight	132 lb
AFUE	80%
Configuration	Upflow/Horizontal
BtuH Input	80,000
BtuH Output	64,000
Tons	4
CFM	1,600
Min. Circuit Amps	11.3
Motor Type	ECM
Stages	Single
LoNox	No
