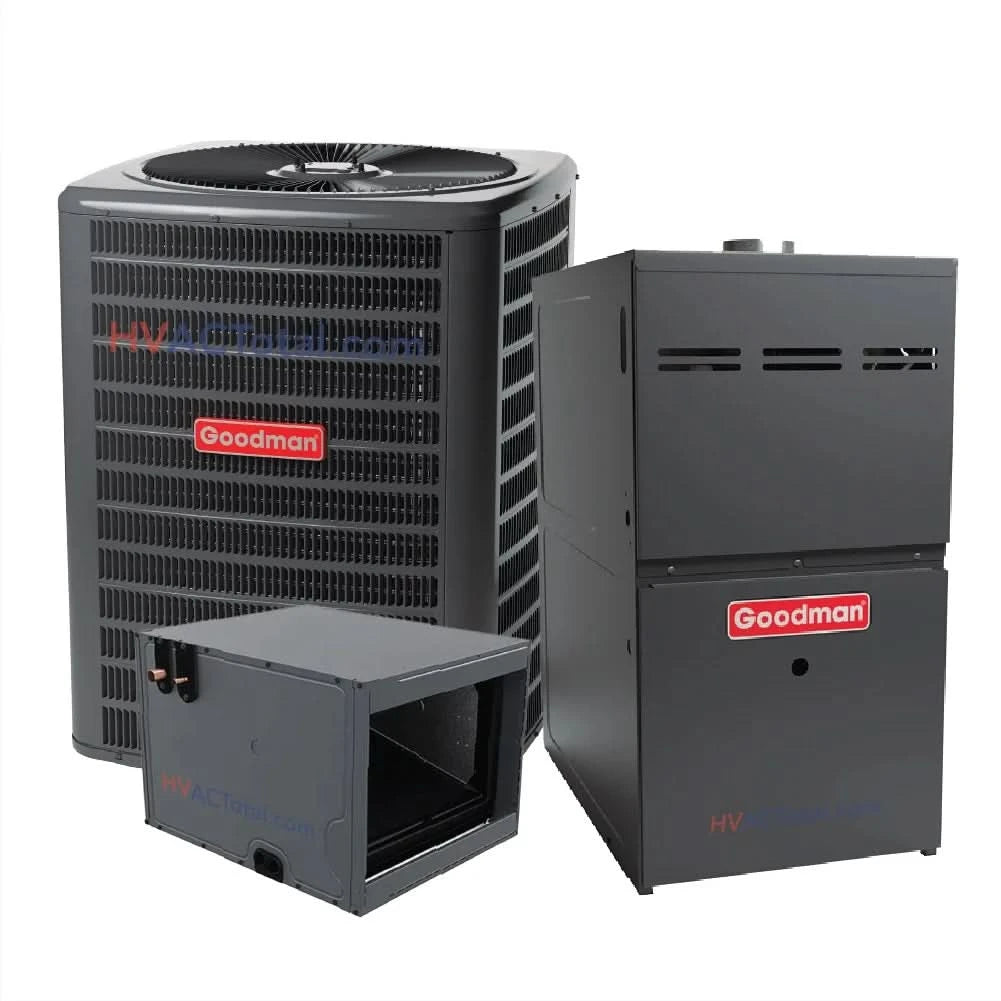

The Goodman 4 Ton 14.5 SEER AC & 80% AFUE 80K BTU Gas Furnace System - Horizontal, R32 (GLXS4BA4810) provides reliable performance, energy efficiency, and advanced features, offering year-round comfort and long-term savings. Designed for horizontal configurations, this system is perfect for homes requiring space-saving and robust HVAC solutions.
Product Benefits of the Goodman 4 Ton 14.5 SEER AC:
- Energy Efficiency: Equipped with an energy-efficient compressor, factory-charged for 15 feet of tubing.
- Advanced Coils: Copper tube with enhanced aluminum fins (5mm diameter) for optimal cooling performance.
- Built to Last: Factory-installed filter drier and extended-life capacitors ensure durability.
- Certifications: In addition, AHRI Certified and ETL Listed for assured quality and safety.
Cabinet Features of the Goodman 4 Ton 14.5 SEER:
- Weather-Resistant: Architectural Gray powder-coat finish rated for 500-hour salt spray resistance.
- Enhanced Airflow: Moreover, venturi design increases velocity for better cooling efficiency.
- Ease of Maintenance: Single-panel access with provisions for field-installed accessories.
- Storm-Ready: Compliant with the 2023 Florida Building Code for hurricane integrity (anchor kits available).
- Multi-Position Installation: In addition, it is configurable for upflow or horizontal left/right setups.
- Flexible Venting: Also, Goodman 4 Ton 14.5 SEER supports direct vent (2-pipe) or non-direct vent (1-pipe) configurations.
- Robust Construction: Heavy-gauge steel cabinet with insulated sections and minimal air leakage (Qleak ≤ 2%).
Evaporator Coil - CHPTA4830C3:
- All-Aluminum Design: Rust-resistant construction ensures longevity.
- R-32 Optimization: Integrated R-32 sensor and components for eco-friendly refrigerant compatibility.
- Factory Installed: Thermal expansion valves for cooling and heat pump applications.
- Compact Size: Additionally, 21" depth allows for easier attic access and vertical applications.
- Low-Maintenance: Furthermore, UV-resistant thermoplastic drain pan with secondary drain connections.

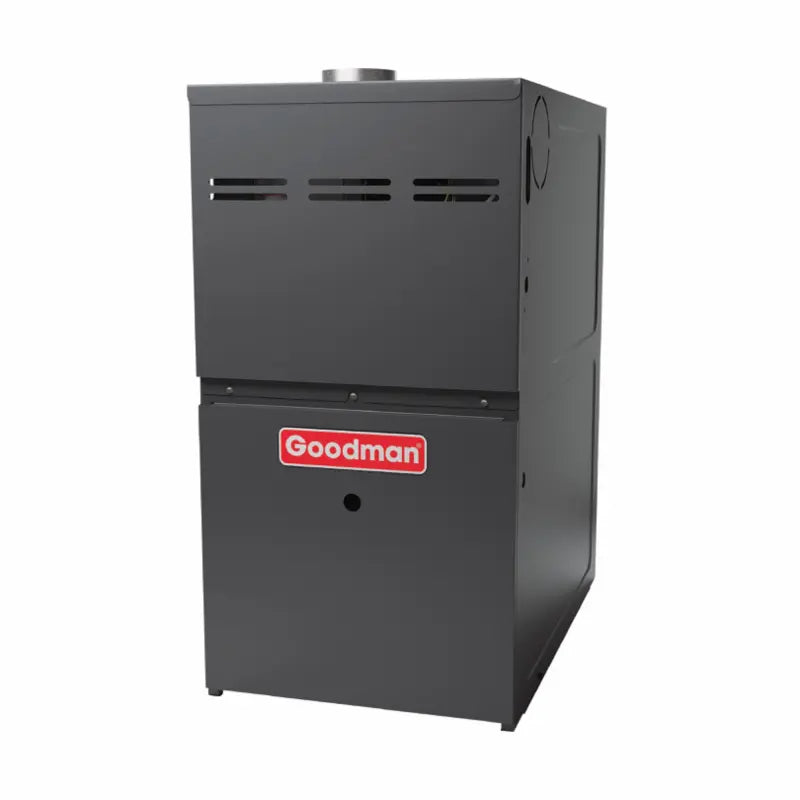

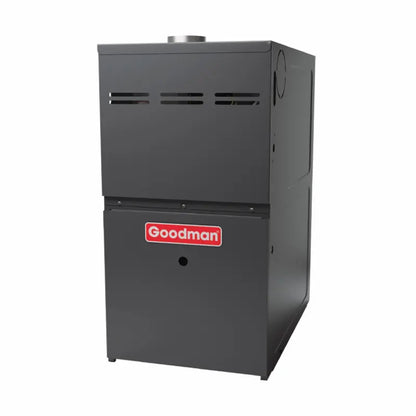

Gas Furnace - GR9T800804CN:
- Reliable Heating: Durable igniter and fast condensate drainage prevent leaks.
- Energy Efficiency: Quiet operation with lower NOx emissions and support for electronic air cleaner and humidifier.
- Smart Diagnostics: Self-diagnostic control board ensures efficient troubleshooting.
- Tax Credit Eligible: Lastly, it meets energy-efficiency criteria for added savings.
Overall, the Goodman 4 Ton 14.5 SEER AC & 80% AFUE 80K BTU Gas Furnace System is a top-tier choice for homeowners seeking a balance of performance, efficiency, and durability.
-
AHRI Reference 214860088 AC Model Number GLXS4BA4810 SEER 2 13.8 Tonnage 4 Unit Height x Width x Depth 35.75 x 35.5 x 35.5 in Unit Weight 211 lb Cooling Capacity Nominal 48,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 25.19 Max Fuse Size 40 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA4830C3 Tonnage 4 Unit Height x Width x Depth 21 x 30 x 21 in Unit Weight 78 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9T800804CN Height x Width x Depth 33-3/8 x 21 x 28 in Weight 129 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 80,000 BtuH Output 64,000 Tons 2.5 - 5 CFM 1,600 Min. Circuit Amps 11.3 Motor Type ECM Stages Two LoNox No -
-
