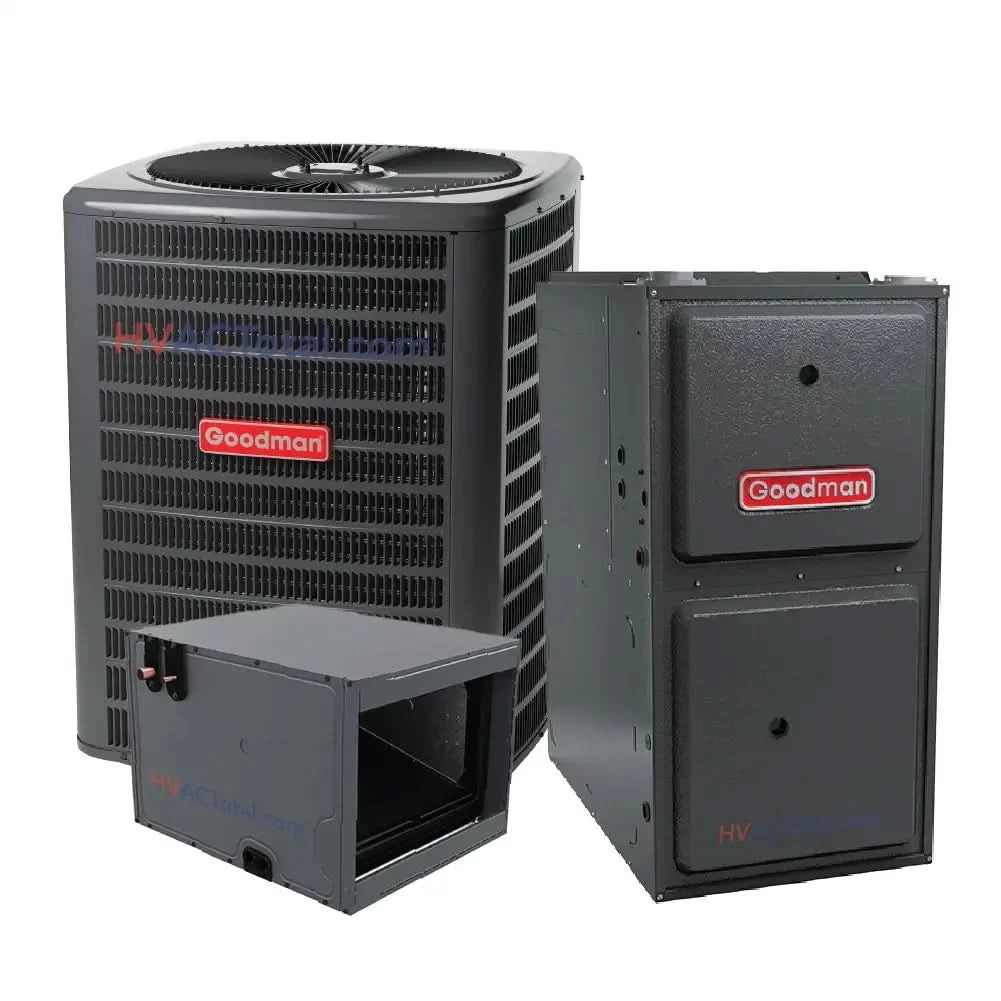

The Goodman 4 Ton 14 SEER2 AC & 96% AFUE 100K BTU Gas Furnace System - Horizontal, R32 (GLXS4BA4810) combines advanced cooling and heating technologies to deliver superior comfort and energy savings for your home or business. With a 96% AFUE gas furnace and a 14 SEER2 air conditioner, it provides excellent performance while reducing energy consumption.
Key Features of the Goodman 4 Ton 14 SEER2 AC:
- Energy-Efficient Compressor: The AC is designed to use less energy while providing maximum cooling output.
- Pre-Charged for Convenience: The system comes fully charged for up to 15 feet of tubing, ensuring a quick and easy installation.
- Copper and Aluminum Coil: Features a copper tube and enhanced aluminum fin coil construction (5mm diameter) for improved heat exchange and system performance.
- Extended-Life Capacitors: Ensures the system operates reliably with minimal maintenance.
- Certified for Safety and Performance: AHRI Certified and ETL Listed, guaranteeing the unit meets safety and efficiency standards.
Cabinet Features of the Goodman 4 Ton 14 SEER2:
- Versatile Installation: Supports multiple installation positions: upflow, horizontal left, or right for a range of setup options.
- Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) systems for versatile venting.
- Easy Venting Setup: Top venting is easy to install, with an optional side vent for added flexibility.
- Air Leakage Control: Goodman 4 Ton 14 SEER2 has low air leakage (Qleak ≤ 2%), ensuring maximum efficiency.
- Durable Construction: The heavy-gauge steel cabinet ensures the system is built to last, with a durable finish that resists wear and tear.
Evaporator Coil - CHPTA4830C3:
- All-Aluminum Coil: Designed to be used with R-32 refrigerant, which is both efficient and environmentally friendly.
- Longer Lifespan: The R-32 sensor helps ensure the coil lasts for the system's entire lifespan.
- Thermal Expansion Valves: Factory-installed valves for both cooling and heat pump applications for optimized performance.
- Easy Access for Installation: Features a front access panel and a 21" depth for easier installation, especially in attics.
- Durable and Moisture-Resistant: The rust-resistant thermoplastic drain pan features a low water-retention design, preventing potential damage from water buildup.

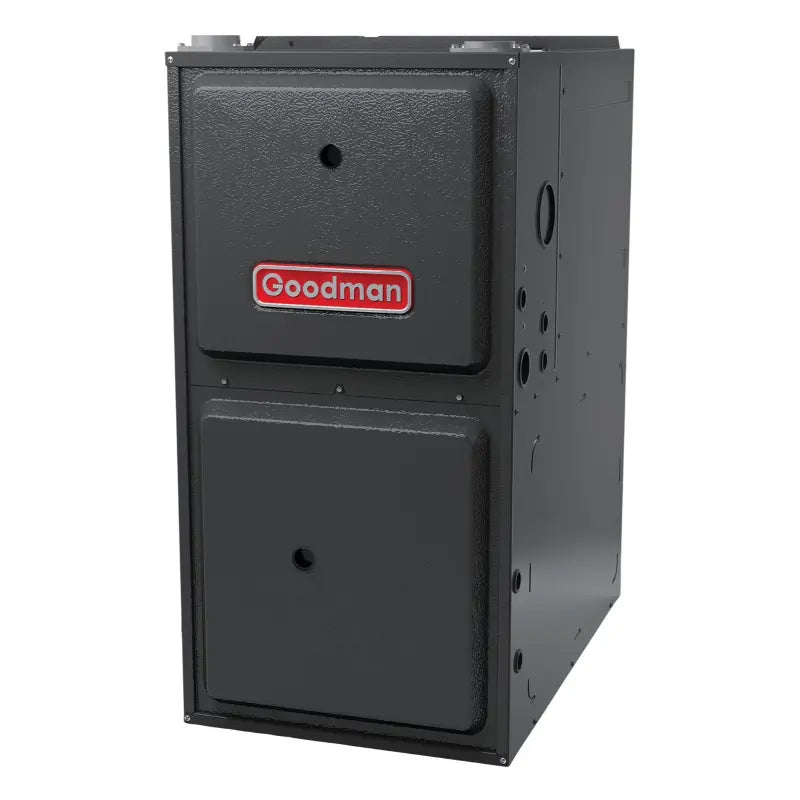

Gas Furnace - GR9S961005CN:
- 96% AFUE Efficiency: This high-efficiency furnace provides excellent heating with minimal energy loss, ensuring comfort during cold months.
- Quiet and Reliable Operation: Designed to be both quiet and economical, providing peace of mind while maintaining energy efficiency.
- Self-Diagnostic Control Board: The control board stores data for easy troubleshooting and ensures that the system operates at its best.
- Low NOx Emission: Designed to reduce harmful emissions, promoting a cleaner, more eco-friendly operation.
- Tax Credit Eligible: Meets the requirements for a tax credit, providing potential savings for the homeowner.
- Flexible Thermostat Compatibility: The furnace works with both two-stage and single-stage thermostats, allowing flexibility in your control options.
The Goodman 4 Ton 14 SEER2 AC & 96% AFUE 100K BTU Gas Furnace System is an excellent choice for homeowners seeking efficient, reliable, and eco-friendly heating and cooling solutions. With its high AFUE rating, R-32 refrigerant, and superior construction, this system is designed to deliver outstanding performance and durability.
-
AHRI Reference 214860093 AC Model Number GLXS4BA4810 SEER 2 13.8 Tonnage 4 Unit Height x Width x Depth 35.75 x 35.5 x 35.5 in Unit Weight 211 lb Cooling Capacity Nominal 48,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 25.19 Max Fuse Size 40 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA4830C3 Tonnage 4 Unit Height x Width x Depth 21 x 30 x 21 in Unit Weight 78 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9S961005CN Height x Width x Depth 34.5 x 21 x 28.75 in Weight 144 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 100,000 BtuH Output 96,100 Tons 3 - 5 CFM 2,000 Min. Circuit Amps 16.7 Vent Size 2" - 3" Motor Type ECM Stages Single LoNox No -
-
