- Description
The Goodman 4 Ton 14 SEER2 AC & 96% AFUE 120K BTU Gas Furnace System - Horizontal, R32 (GLXS4BA4810) provides optimal comfort year-round, featuring energy-efficient performance for both heating and cooling.
Key Product Benefits of the Goodman 4 Ton 14 SEER2 AC:
- Energy-Efficient Compressor: Enhances cooling performance while minimizing energy consumption.
- Fully Charged for Installation: Pre-charged for 15 feet of tubing length, simplifying setup.
- Durable Coil Design: Copper tube with enhanced aluminum fin coil (5mm diameter) for excellent heat transfer.
- Factory-Installed Filter Drier: Ensures system cleanliness and prevents contaminants.
- Extended Life Capacitors & High-Pressure Switch: Designed for long-lasting reliability.
- AHRI Certified & ETL Listed: Meets industry performance and safety standards.
Cabinet Features of the Goodman 4 Ton 14 SEER2:
- Versatile Installation: Additionally, it supports multi-position installation (upflow, horizontal left or right).
- Vent Options: Compatible with both direct and non-direct venting configurations.
- Durable Construction: Heavy-gauge steel cabinet with minimal air leakage for improved efficiency.
- Hurricane-Resistant: Meets the 2023 Florida Building Code integrity standards when properly anchored.
Evaporator Coil - CHPTA4830C3:
- R-32 Refrigerant Optimized: Ensures efficient cooling and system longevity.
- All-Aluminum Coil Construction: Durable and resistant to corrosion.
- Factory-Installed Thermal Expansion Valves: For cooling and heat pump applications.
- Easy Access for Maintenance: Single access panel for simplified servicing.

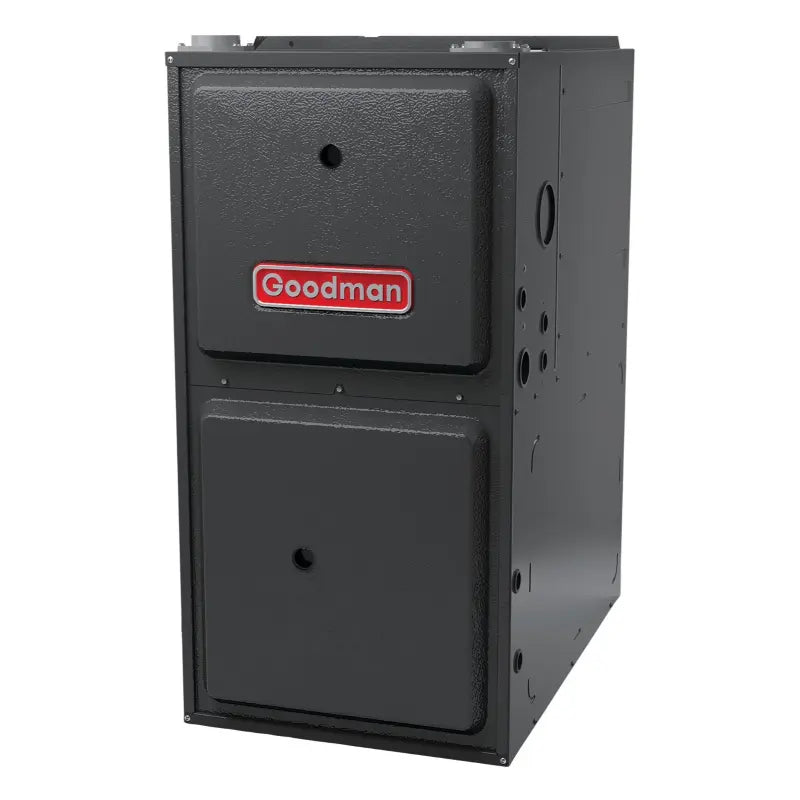

Gas Furnace -GR9T961205DN:
- 96% AFUE Efficiency: Reduces fuel consumption while delivering effective heating.
- Self-Diagnostic Control Board: Provides easy troubleshooting and reliable performance.
- Quiet, Efficient Heating: Operates quietly with lower NOx emissions, ensuring energy-efficient and comfortable warmth.
The Goodman 4 Ton 14 SEER2 AC & 96% AFUE 120K BTU Gas Furnace System is designed for homes and light commercial spaces, offering efficient, reliable, and quiet year-round comfort. With its durable components and low-maintenance design, it ensures long-term performance and satisfaction.
- Specs
AHRI Reference 214860066 AC Model Number GLXS4BA4810 SEER 2 13.8 Tonnage 4 Unit Height x Width x Depth 35.75 x 35.5 x 35.5 in Unit Weight 211 lb Cooling Capacity Nominal 48,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 25.19 Max Fuse Size 40 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA4830C3 Tonnage 4 Unit Height x Width x Depth 21 x 30 x 21 in Unit Weight 78 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9T961205DN Height x Width x Depth 34.5 x 24.5 x 28.75 in Weight 154 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 120,000 BtuH Output 115,200 Tons 3 - 5 CFM 2,000 Min. Circuit Amps 14.4 Vent Size 2" - 3" Motor Type ECM Stages Two LoNox No - Accessories
