The Goodman 5 Ton 13.4 SEER2 AC & 96% AFUE 100,000 BTU Gas Furnace - Upflow, R32 (GLXS3BN6010) is a high-efficiency solution for reliable year-round comfort. Featuring an energy-efficient compressor, 96% AFUE gas furnace, and eco-friendly R-32 refrigerant, it ensures optimal performance, energy savings, and environmental responsibility.
Product Benefits of the Goodman 5 Ton 13.4 SEER2 AC:
- Energy-Efficient Compressor: Delivers reliable cooling with reduced energy consumption.
- Pre-Charged for 15' Tubing: Simplifies and speeds up installation.
- Durable Coil Design: Copper tubes with enhanced aluminum fins (5mm diameter).
- Factory-Installed Filter Drier & Service Valves: Ensure easy access and maintenance.
- High-Pressure Switch & Long-Life Capacitors: Extends system durability.
- Certifications: AHRI Certified and ETL Listed for quality and safety.
Cabinet Features of the Goodman 5 Ton 13.4 SEER2:
- Grille-Style Top Design: Compliant with UL 60335-2-40 safety standards.
- Venturi-Enhanced Airflow: Boosts efficiency and cooling performance.
- Architectural Gray Finish: Corrosion-resistant with 500-hour salt-spray approval.
- Maintenance-Friendly Design: Accessible controls and easy service access.
Evaporator Coil - CAPTA6030C3:
- All-Aluminum Build: Optimized for use with R-32 refrigerant.
- Factory-Installed Expansion Valves: Ideal for cooling and heat pump systems.
- Compact Design: 21" depth for easier installation in tight spaces.
- Rust-Resistant Drain Pan: UV-resistant with a low water-retention design.
- Foil-Faced Insulation: Goodman 5 Ton 13.4 SEER2 reduces condensation and enhances efficiency.

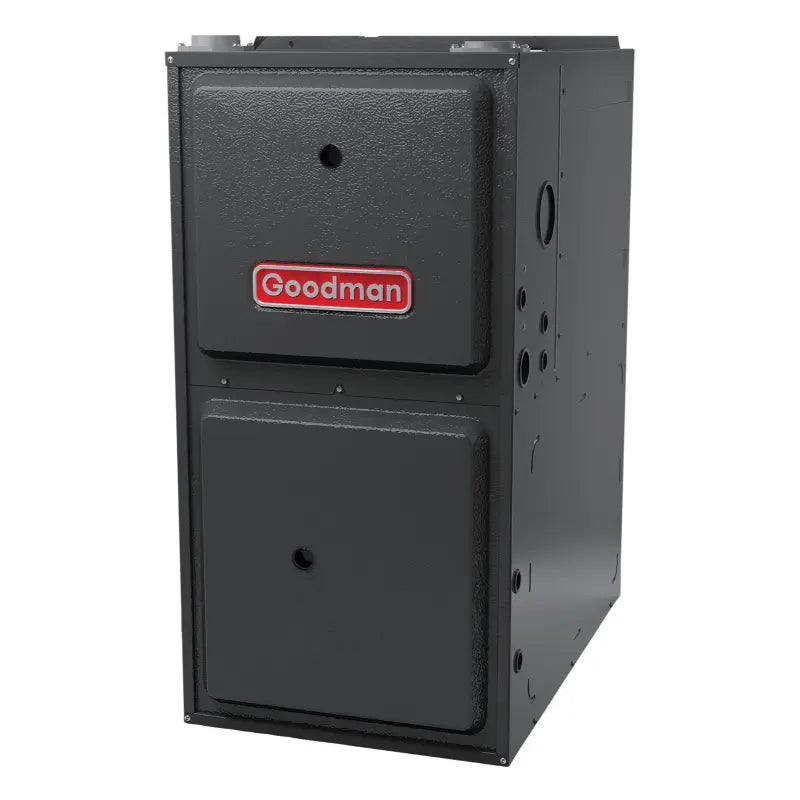

Gas Furnace - GM9S961005CN:
- 96% AFUE Efficiency: Also, it provides maximum heating savings.
- Durable Igniter: Long-lasting for reliable operation.
- Quiet and Efficient Circulation: Furthermore, it ensures consistent comfort with minimal noise.
- Self-Diagnostic Control Board: Moreover, it implifies maintenance and troubleshooting.
- Flexible Setup: Lastly, it includes provisions for electronic air cleaners and humidifiers.
Overall, the Goodman 5 Ton 13.4 SEER2 AC & 96% AFUE 100,000 BTU Gas Furnace combines superior performance, energy efficiency, and environmental friendliness. Therefore, it's a smart investment for homeowners seeking comfort, reliability, and long-term savings.
-
AHRI Reference 215331656 AC Model Number GLXS3BN6010 SEER 2 13.4 Unit Height 39.5 in Unit Width 35.5 in Unit Depth 35.5 in Unit Weight 229 lb Cooling Capacity Nominal 60,000 Btu/H Max Overcurrent Protection 50A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Scroll Refrigerant Type R-32 Evaporator Coil Model Number CAPTA6030C3 Tonnage 4-5 Unit Height 30 in Unit Width 21 in Unit Depth 21 in Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GM9S961005CN AFUE 96% Unit Height 33.375 in Unit Width 21 in Unit Depth 28 in Unit Weight 140 lb Cooling Capacity Nominal 60,000 Btu/H Max Overcurrent Protection 25 A Installation Configuration Upflow/Horizontal Power Voltage 115 V Motor Speed Type Multi Speed ECM -
-
