Model: GLXS3BN6010 / CAPTA6030C3

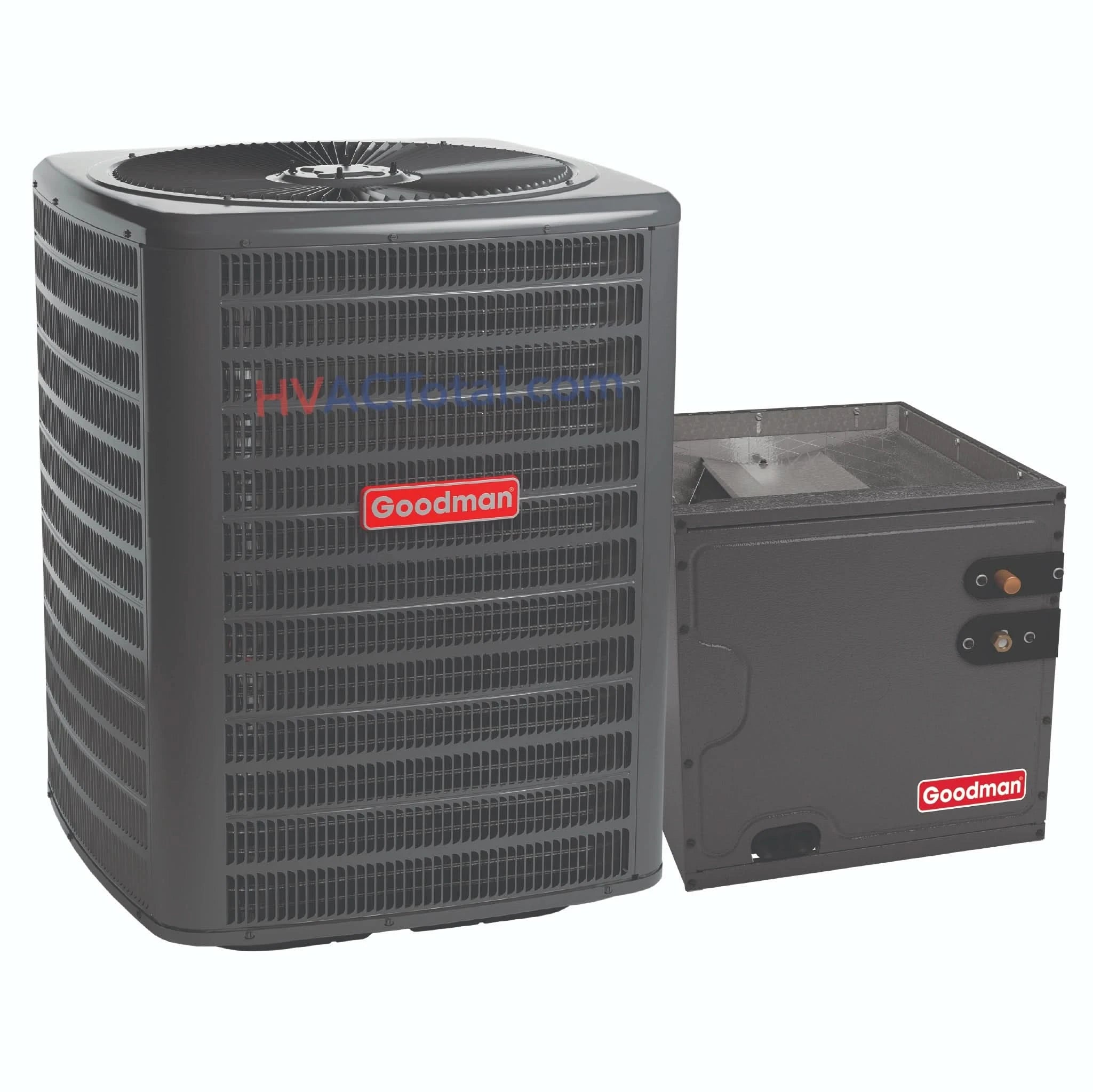

Goodman 5 Ton 13.4 SEER2 R32 Air Conditioner & 21" Vertical Cased Coil
Goodman 5 Ton 13.4 SEER2 R32 Air Conditioner & 21" Vertical Cased Coil

Couldn't load pickup availability
Product Details
The 5 Ton AC Goodman 13.4 SEER2 & 21" Vertical Cased Coil delivers efficient cooling performance with durable construction and user-friendly maintenance.

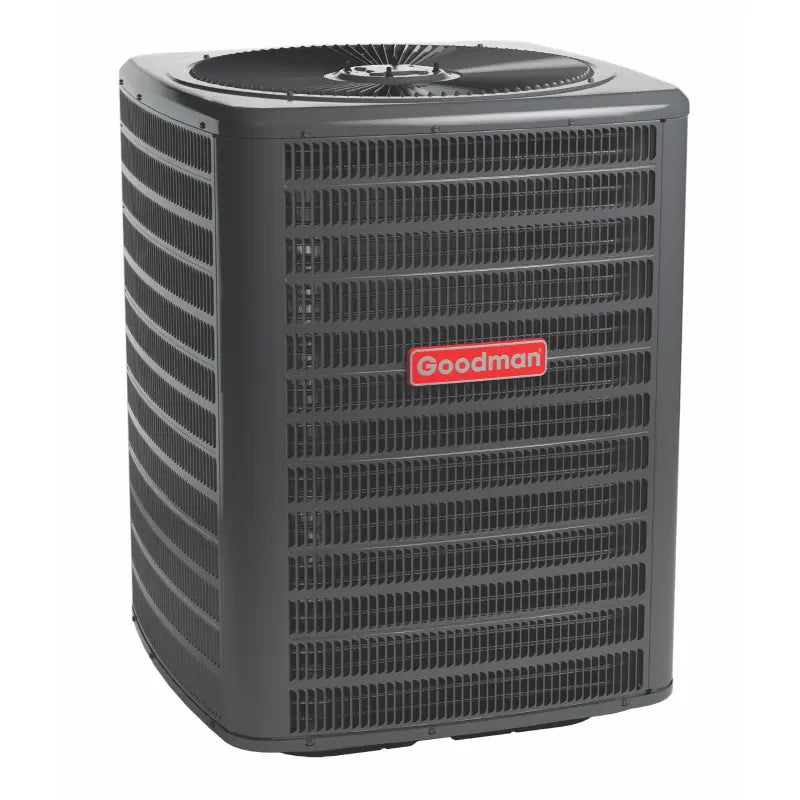

5 Ton AC Goodman - GLXS3BN6010 Features:
- Energy-Efficient Compressor: Reliable operation with reduced energy use.
- Pre-Charged Convenience: Fully charged for up to 15' of tubing for faster installation.
- Durable Coil Construction: Includes a factory-installed filter drier and extended-life capacitors for long-lasting operation.
- Factory-Installed Features: Also, Includes filter drier and extended-life capacitors.
- Certified Quality: AHRI Certified and ETL Listed for reliability and safety.
Cabinet Features of the 5 Ton Coil:
- Streamlined Design: The removable grille-style top complies with UL 60335-2-40, while providing easy access for servicing.
- Efficient Airflow: Venturi design enhances airflow velocity.
- Weather-Resistant Build: Architectural Gray powder-coated finish withstands 500-hour salt-spray tests.
- Easy Maintenance: Side and top access for routine service.
5 Ton Coil - CAPTA6030C3 Features:
- All-Aluminum Coil:Optimized for R-32 refrigerant for long-lasting efficiency.
- Compact Vertical Design: 21" depth for easier installation in tight spaces.
- Rust-Resistant Drain Pan: UV-resistant thermoplastic pan with low water retention and secondary drain connections.
- Foil-Faced Insulation: Additionally, Reduces internal cabinet condensation.
- Simplified Maintenance: Single front access panel and easy-to-remove coil rails.
- Certified for Quality: Lastly, AHRI Certified and ETL Listed for safety and performance.
In conclusion, the 5 Ton AC Goodman 13.4 SEER2 & 21" Vertical Cased Coil are designed to provide reliable cooling and long-lasting performance. With its innovative features, robust construction, and ease of maintenance, it’s an excellent solution for efficient cooling needs. Therefore, this system is a valuable investment for those seeking energy-efficient and durable cooling.
Specifications
AHRI | 215271993 |
---|---|
AC Model Number | GLXS3BN6010 |
SEER2 | 13.4 |
Tons | 5 |
BTU | 60,000 |
Volts | 208/230 |
Phase | Single |
Motor Type | PSC |
Min. Circuit Amps | 31.1 |
Max Fuse Size | 50 |
Liquid Connection | 3/8" |
Suction Fitting | 1.125" |
Refrigerant | R-32 |
Width | 35.5" |
Height | 39.5" |
Depth | 35.5" |
Weight | 229 |
Evaporator Coil Model Number | CAPTA6030C3 |
Unit Depth | 21 in |
Unit Height | 30 in |
Unit Width | 21 in |
Cased/Uncased | Cased |
Warranty & Shipping
Warranty
Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a properly certified professional adhering to city, state and federal laws.
Processing Time
We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.
Equipment Arrival
Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.
Making Notes on the Delivery Receipt
If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as "Clear."
If items or boxes are missing, mark the receipt as " Short" and list the missing items. We will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."
How Do I Handle a Damaged Shipment?
If any items are damaged, mark the receipt as "Damaged," specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company’s claims department directly to file a claim.
Documents
- //hvactotal.com/cdn/shop/files/GLXS3 Spec Sheet
- //hvactotal.com/cdn/shop/files/GLXS3 Installation Manual
- //hvactotal.com/cdn/shop/files/GLXS3 Warranty Guide
- //hvactotal.com/cdn/shop/files/Vertical Coil Installation
- //hvactotal.com/cdn/shop/files/CAPTA Coils repair parts
- //hvactotal.com/cdn/shop/files/A2L Sensor Dragonfly Installation
