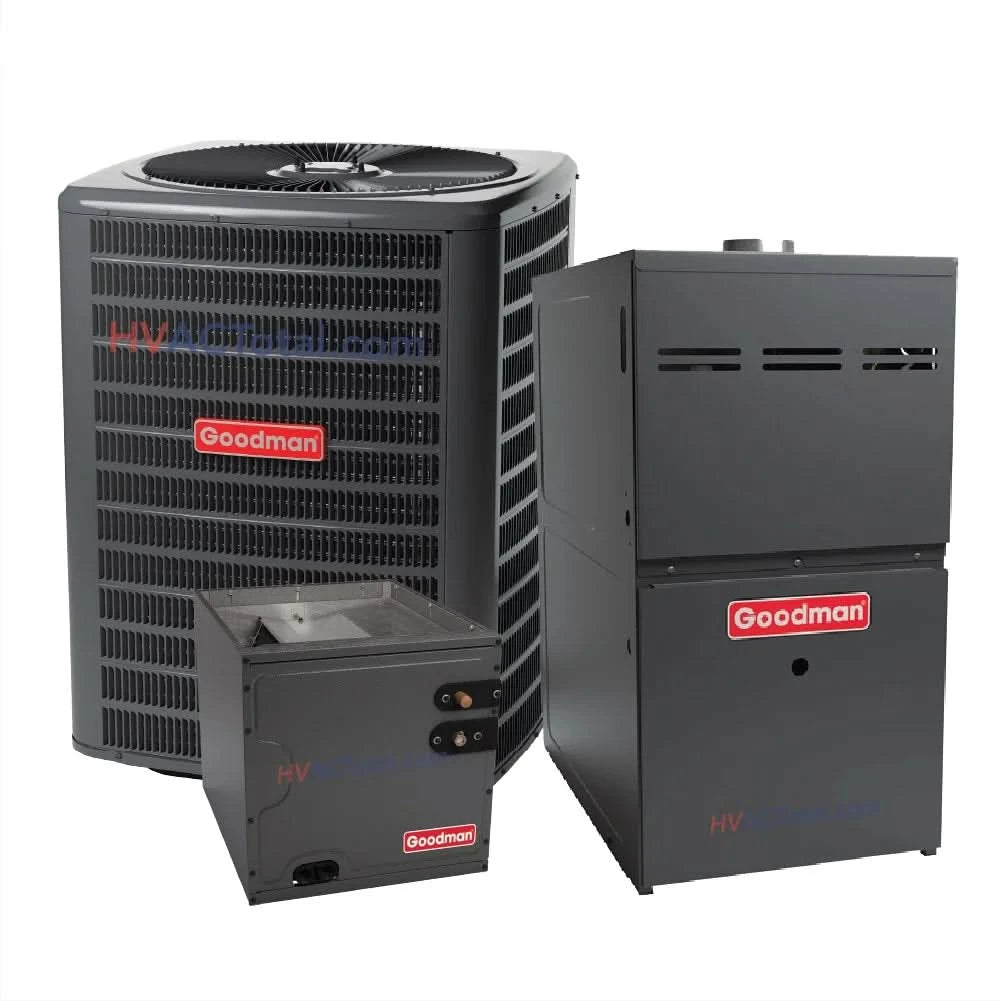

The Goodman 5 Ton 13.6 SEER2 AC & 80% AFUE 120,000 BTU Gas Furnace - Upflow, R32 (GLXS3BN6010) is designed to provide powerful, efficient heating and cooling for larger spaces. With advanced features such as R-32 refrigerant, an energy-efficient compressor, and durable construction, it ensures comfort and reliability throughout the year.
Key Features of the Goodman 5 Ton 13.6 SEER2 AC:
- Energy-Efficient Compressor: Reduces energy consumption while delivering consistent cooling.
- Pre-Charged for 15' Tubing: Simplifies installation.
- Copper/Aluminum Coil Design: 5mm copper tubes and enhanced aluminum fins for optimal heat transfer and durability.
- Factory-Installed Filter Drier: Protects the system from moisture and contaminants to extend its lifespan.
- Enclosed Contactor with Lug Connection: Ensures safe and easy installation.
- High-Pressure Switch & Long-Life Capacitors: Enhances reliability and system performance.
- Certifications: AHRI Certified and ETL Listed, meeting the highest industry standards.
Cabinet Features of the Goodman 5 Ton 13.6 SEER2:
- Removable Grille-Style Top: UL 60335-2-40 compliant for easy maintenance access.
- Architectural Gray Powder Coating: 500-hour salt-spray resistance for long-lasting durability.
- Venturi Design: Increases airflow velocity for efficient cooling.
- Service Accessibility: Top and side panels allow for hassle-free maintenance.
- Upflow Configuration: Ideal for various installation setups, including basement or closet.
- Heavy-Gauge Steel Construction: Fully insulated for quieter operation and improved energy efficiency.
- Service Flexibility: Left or right connection for gas and electrical service.
- Multi-Position Installation: Accommodates bottom or side return air applications.
Evaporator Coil - CAPTA6030D3:
- All-Aluminum Coil: Engineered for compatibility with R-32 refrigerant for improved energy efficiency and longevity.
- Thermal Expansion Valves: Factory-installed for both cooling and heat pump applications.
- Compact Horizontal Design: Additionally, 21" depth for easy attic installation and maintenance.
- Foil-Faced Insulation: Reduces condensation within the cabinet.
- Rust-Resistant Drain Pan: UV-resistant design minimizes water retention and offers secondary drain connections.
- AHRI Certified & ETL Listed: Ensures optimal performance and safety.
Gas Furnace - GM9S801205DN:
- 80% AFUE Efficiency: Goodman 5 Ton 13.6 SEER2 delivers reliable heating while conserving energy.
- High Durability Igniter: Ensures extended operational life.
- Self-Diagnostic Control Board: Simplifies troubleshooting with constant memory.
- Quiet and Efficient Circulation: Operates with minimal noise for a comfortable indoor environment.
- EAC & Humidifier Compatibility: Easily integrates with electronic air cleaners and humidifiers to enhance air quality.
Therefore, the Goodman 5 Ton 13.6 SEER2 AC and 120,000 BTU gas furnace system is designed for reliable, year-round comfort. It combines energy efficiency, robust construction, and advanced features, making it a perfect choice for homeowners seeking a cost-effective and environmentally friendly heating and cooling solution
-
AHRI Reference 215331662 AC Model Number GLXS3BN6010 SEER 2 13.4 Unit Height 39.5 in Unit Width 35.5 in Unit Depth 35.5 in Unit Weight 229 lb Cooling Capacity Nominal 60,000 Btu/H Max Overcurrent Protection 50A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Scroll Refrigerant Type R-32 Evaporator Coil Model Number CAPTA6030D3 Tonnage 4-5 Unit Height 30 in Unit Width 24.5 in Unit Depth 21 in Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GM9S801205DN AFUE 80% Unit Height 33.375 in Unit Width 24.5 in Unit Depth 28 in Unit Weight 132 lb Cooling Capacity Nominal 60,000 Btu/H Max Overcurrent Protection 20 A Installation Configuration Upflow/Horizontal Power Voltage 115 V Motor Speed Type Nine Speed ECM -
-
