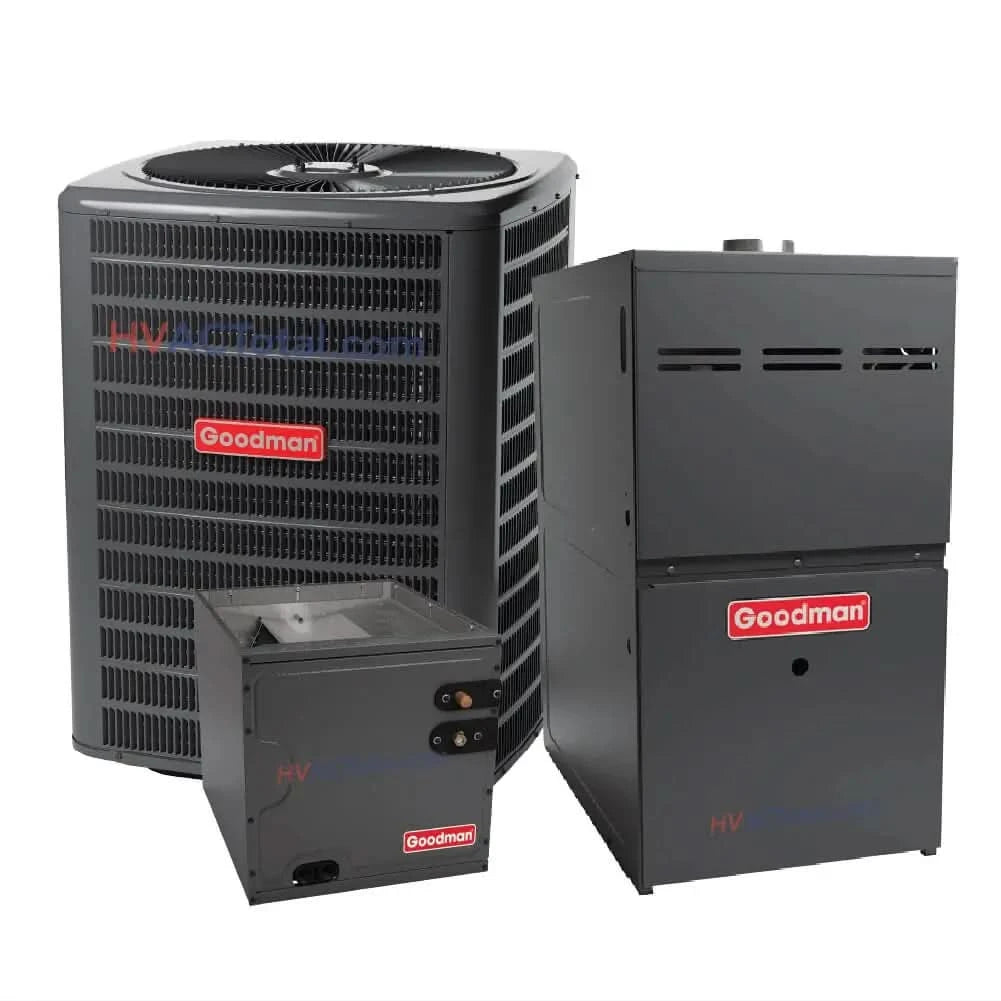

The Goodman 5 Ton 13.6 SEER2 AC & 80% AFUE 120K BTU Gas Furnace System - Upflow, R32 (GLXS3BN6010) delivers efficient, reliable heating and cooling with a durable upflow configuration, suitable for residential or light commercial applications.
Key Features of the Goodman 5 Ton 13.6 SEER2 AC:
- Energy-Efficient Compressor: Provides powerful cooling while minimizing energy use.
- Pre-Charged for 15' Tubing: Simplifies and speeds up installation.
- Copper Tube with Aluminum Fin Coil (5mm): Ensures superior heat transfer and corrosion resistance.
- Factory-Installed Filter Drier: Protects the system from contaminants to enhance durability.
- Certifications: AHRI Certified and ETL Listed for performance and safety compliance.
Cabinet Features of the Goodman 5 Ton 13.6 SEER2:
- Removable Grille-Style Top: UL 60335-2-40 compliant for easy maintenance.
- Venturi Design: Boosts airflow velocity for enhanced cooling efficiency.
- Durable Finish: Architectural gray powder coating, tested for corrosion resistance.
- Service Access: Single-panel access to controls for convenience.
- Upflow Configuration: Ideal for vertical installations in basements or utility spaces.
Evaporator Coil - CAPTA6030D3:
- All-Aluminum Construction: Enhances efficiency and resists corrosion.
- Optimized for R-32 Refrigerant: Ensures environmental sustainability and energy efficiency.
- Compact Vertical Design: Goodman 5 Ton 13.6 SEER2 is 21" depth for improved installation flexibility.
- Foil-Faced Insulation: Reduces condensation and maintains cabinet cleanliness.
-
Rust-Resistant Drain Pan: UV-resistant with low water retention for reliable drainage.
Gas Furnace - GR9S801205DN:
- 80% AFUE Efficiency: Moreover, it delivers cost-effective heating performance.
- Quiet and Reliable Operation: Also, it maintains a comfortable indoor environment with minimal noise.
- Self-Diagnostic Control Board: Furthermore, it simplifies troubleshooting and maintenance.
- Flexible Installation: Goodman 5 Ton 13.6 SEER2 supports upflow and horizontal configurations with venting options.
- Heavy-Gauge Steel Cabinet: Fully insulated for thermal efficiency and noise reduction.
- Provisions for EAC & Humidifier: Lastly, it supports add-ons for improved air quality.
Therefore, the Goodman 5 Ton 13.6 SEER2 AC & 80% AFUE 120K BTU Gas Furnace System offers high-performance heating and cooling with energy efficiency and durability. Its upflow design and advanced features make it ideal for vertical installations in a range of settings, providing year-round comfort and reliability
-
AHRI Reference 215277750 AC Model Number GLXS3BN6010 SEER 2 13.4 Tonnage 5 Unit Height x Width x Depth 39.5 x 35.5 x 35.5 in Unit Weight 229 lb Cooling Capacity Nominal 60,000 Btu/H Max Overcurrent Protection 50A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Scroll Refrigerant Type R-32 Evaporator Coil Model Number CAPTA6030D3 Tonnage 5 Unit Height x Width x Depth 30 x 24.5 x 21 in Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GR9S801205DN Height x Width x Depth 33-3/8 x 24.5 x 28 in Weight 132 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 120,000 BtuH Output 96,000 Tons 5 CFM 2,000 Min. Circuit Amps 11.3 Vent Size 4" Motor Type ECM Stages Single LoNox No -
-
