The Goodman 5 Ton 13.6 SEER2 AC & 96% AFUE 120K BTU Gas Furnace System - Downflow, R32 (GLXS3BN6010) is designed to provide maximum comfort and efficiency, with reliable performance for residential or light commercial applications. The downflow configuration ensures optimal airflow and installation flexibility.
Key Features of the Goodman 5 Ton 13.6 SEER2 AC:
- Energy-Efficient Compressor: Delivers powerful cooling while reducing energy consumption.
- Pre-Charged for 15' Tubing: Furthermore, it simplifies installation with pre-charged refrigerant.
- Copper Tube with Aluminum Fin Coil (5mm): Improves heat transfer and corrosion resistance for lasting performance.
- Factory-Installed Filter Drier: Moreover, it protects the system from contaminants and ensures extended lifespan.
- Certifications: AHRI Certified and ETL Listed for industry-standard quality and safety.
Cabinet Features of the Goodman 5 Ton 13.6 SEER2:
- Removable Grille-Style Top: UL 60335-2-40 compliant for easy cleaning and maintenance.
- Venturi Design: In addition, it increases airflow velocity for efficient cooling.
- Durable Finish: Architectural gray powder coating with 500-hour salt-spray approval for corrosion resistance.
- Service Access: Features single-panel access for easy maintenance and field-installed accessories.
- Downflow Configuration: Ideal for installations in basements or utility closets.
Evaporator Coil - CAPTA6030D3:
- All-Aluminum Construction: Enhances durability and efficiency while reducing the risk of corrosion.
- Optimized for R-32 Refrigerant: Designed for maximum energy efficiency and environmental sustainability.
- Factory-Installed Thermal Expansion Valves: Improve system performance for cooling and heat pump applications.
- Compact Vertical Design: Goodman 5 Ton 13.6 SEER2 is 21" depth for better installation flexibility in confined spaces.
- Rust-Resistant Drain Pan: UV-resistant with low water retention for reliable drainage and enhanced system lifespan.

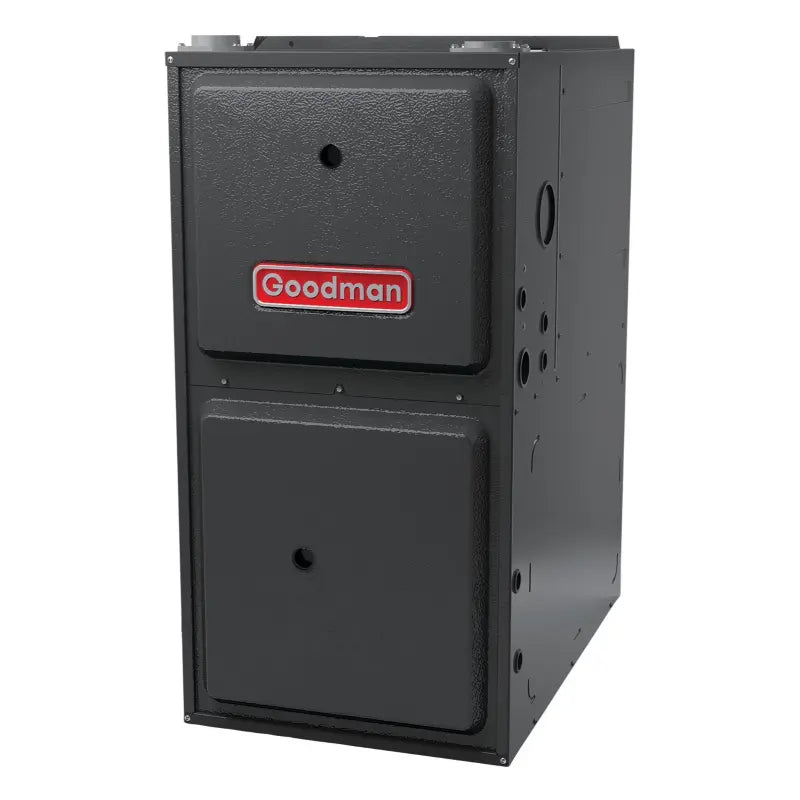

Gas Furnace - GD9S961205DN:
- 96% AFUE Efficiency: Provides high-efficiency heating, cutting energy costs while maintaining comfort.
- Quiet and Reliable Operation: Designed for minimal noise during operation, ensuring a peaceful environment.
- Self-Diagnostic Control Board: Makes troubleshooting quick and accurate.
- Flexible Thermostat Compatibility: Goodman 5 Ton 13.6 SEER2 operates with two-stage or single-stage thermostats for optimized control.
- Lower NOx Emission: Designed to meet strict emission standards for cleaner indoor air.
- Provisions for EAC & Humidifier: Lastly, it supports add-ons for improved air quality.
Overall, the Goodman 5 Ton 13.6 SEER2 AC & 96% AFUE 120K BTU Gas Furnace System offers high-performance heating and cooling with efficient, durable, and environmentally conscious design. Its downflow configuration, combined with advanced features, provides a versatile solution for a variety of applications, ensuring long-term comfort and energy savings
-
AHRI Reference 215277758 AC Model Number GLXS3BN6010 SEER 2 13.4 Tonnage 5 Unit Height x Width x Depth 39.5 x 35.5 x 35.5 in Unit Weight 229 lb Cooling Capacity Nominal 60,000 Btu/H Max Overcurrent Protection 50A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Scroll Refrigerant Type R-32 Evaporator Coil Model Number CAPTA6030D3 Tonnage 5 Unit Height x Width x Depth 30 x 24.5 x 21 in Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GD9S961205DN Height x Width x Depth 34.5 x 24.5 x 28.75 in Weight 156 lb AFEU 96% Configuration Downflow/Horizontal BtuH Input 120,000 BtuH Output 115,320 Tons 3 - 5 CFM 2,000 Min. Circuit Amps 16.7 Vent Size 3" Motor Type ECM Stages Single LoNox No -
-
