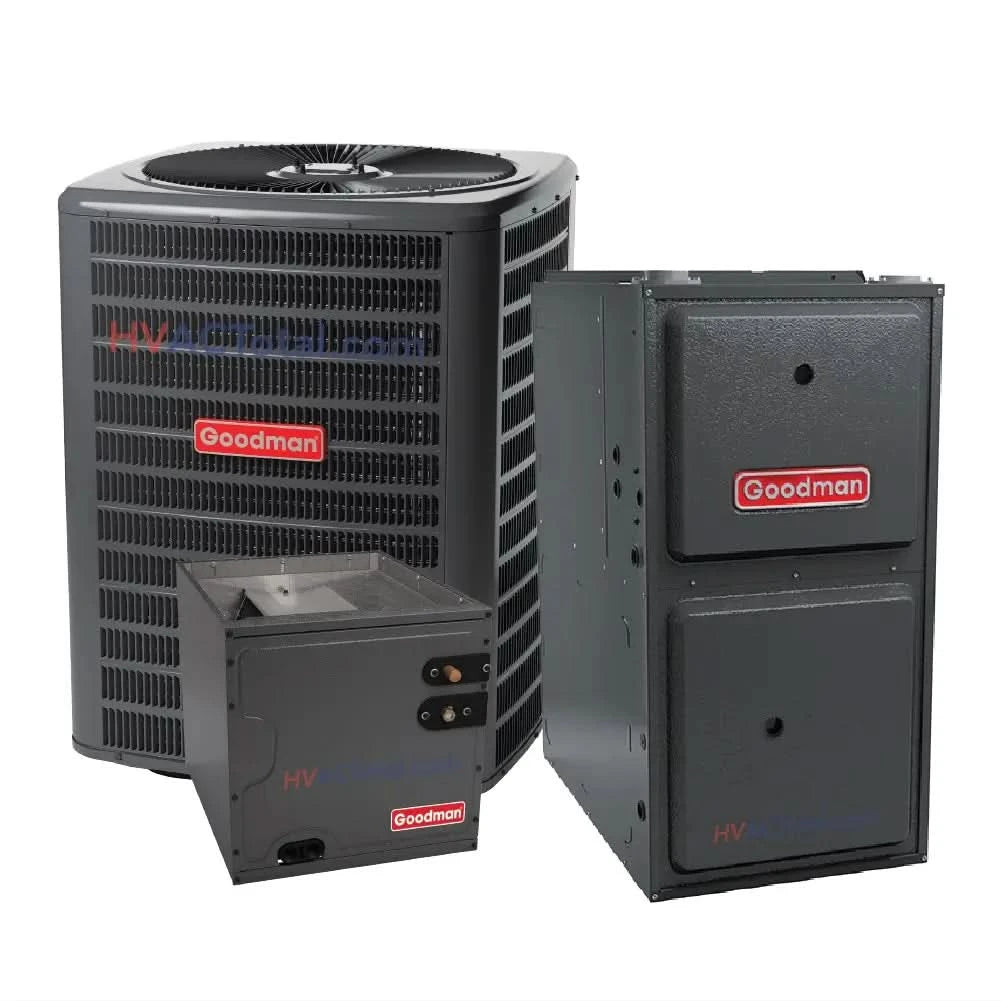

The Goodman 5 Ton 13.6 SEER2 AC & 96% AFUE 120K BTU Gas Furnace System - Upflow, R32 (GLXS3BN6010) combines advanced features and exceptional energy efficiency, making it an ideal solution for both heating and cooling in residential and light commercial applications. The upflow configuration maximizes airflow and offers flexibility in installation.
Key Features of the Goodman 5 Ton 13.6 SEER2 AC:
- Energy-Efficient Compressor: Offers strong cooling power while minimizing energy use.
- Pre-Charged for 15' of Tubing: Simplifies installation by reducing setup time.
- Copper Tube & Enhanced Aluminum Fin Coil (5mm): Improves heat transfer and provides corrosion resistance.
- Factory-Installed Filter Drier: Ensures protection from contaminants, extending system life.
- Certifications: AHRI Certified and ETL Listed for superior quality and compliance.
Cabinet Features of the Goodman 5 Ton 13.6 SEER2:
- Removable Grille-Style Top: Complies with UL 60335-2-40 for easy maintenance.
- Venturi Design: Increases airflow velocity for more efficient cooling.
- Durable Finish: Architectural Gray powder coating with 500-hour salt-spray approval for corrosion resistance.
- Easy Access: Features top and side maintenance access, as well as single-panel control access for easy installation and servicing.
- Upflow Configuration: Suitable for vertical installations in basements or utility spaces.
Evaporator Coil - CAPTA6030D3:
- All-Aluminum Construction: Reduces risk of corrosion while maximizing efficiency.
- Optimized for R-32 Refrigerant: Ensures energy savings and is environmentally friendly.
- Factory-Installed Thermal Expansion Valves: Improves system performance in both cooling and heat pump applications.
- 21" Depth: Ideal for easier attic access and installations in confined spaces.
- Rust-Resistant Drain Pan: Low water retention and UV-resistant, preventing leakage and enhancing reliability.
Gas Furnace - GR9S961205DN:
- 96% AFUE Efficiency: Provides high-efficiency heating, lowering energy costs while ensuring comfort.
- Self-Diagnostic Control Board: Simplifies troubleshooting with built-in memory for easy repairs.
- Quiet Operation: Goodman 5 Ton 13.6 SEER2 ensures minimal noise during operation, keeping your environment comfortable.
- Lower NOx Emission: Meets strict emission standards for cleaner indoor air quality.
- Flexible Thermostat Compatibility: Supports both two-stage and single-stage thermostats for precise temperature control.
- Provisions for EAC & Humidifier: Easily integrates with electronic air cleaners and humidifiers to enhance air quality.
The Goodman 5 Ton 13.6 SEER2 AC & 96% AFUE 120K BTU Gas Furnace System provides an ideal solution for homeowners seeking an efficient, durable, and flexible heating and cooling system. Its advanced features, combined with its upflow configuration, offer a comfortable, energy-efficient solution for year-round climate control.
-
AHRI Reference 215277742 AC Model Number GLXS3BN6010 SEER 2 13.4 Tonnage 5 Unit Height x Width x Depth 39.5 x 35.5 x 35.5 in Unit Weight 229 lb Cooling Capacity Nominal 60,000 Btu/H Max Overcurrent Protection 50A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Scroll Refrigerant Type R-32 Evaporator Coil Model Number CAPTA6030D3 Tonnage 5 Unit Height x Width x Depth 30 x 24.5 x 21 in Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GR9S961205DN Height x Width x Depth 34.5 x 24.5 x 28.75 in Weight 156 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 120,000 BtuH Output 115,320 Tons 3 - 5 CFM 2,000 Min. Circuit Amps 16.7 Vent Size 3" Motor Type ECM Stages Single LoNox No -
-
