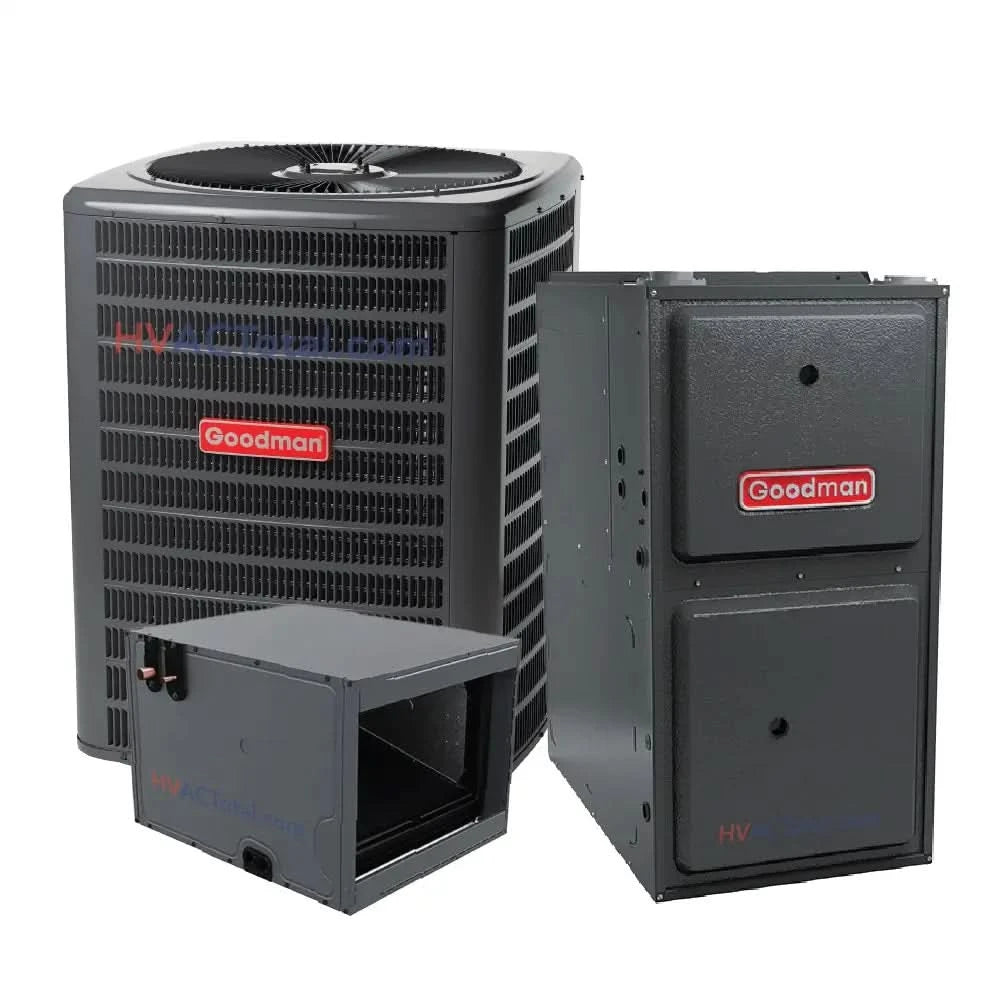

The Goodman 5 Ton 13.8 SEER2 AC & 92% AFUE 100K BTU Gas Furnace System - Horizontal, R32 (GLXS4BA6010) offers energy-efficient cooling and heating, designed for horizontal installations. With advanced features, it ensures comfort and savings year-round.
Key Features of the Goodman 5 Ton 13.8 SEER2 AC:
- Energy-Efficient Compressor: Reduces energy consumption.
- Fully Charged for 15' of Tubing Length: Reduces installation time.
- Copper Tube & Enhanced Aluminum Fin Coil: Improves heat transfer and durability.
- Factory-Installed Filter Drier: Protects system components.
- AHRI Certified & ETL Listed: Meets safety and efficiency standards.
Cabinet Features of the Goodman 5 Ton 13.8 SEER2:
- Grille-Style Top: Easy to maintain, UL-compliant.
- Venturi Design: In addition, it increases airflow velocity for better efficiency.
- Attractive Finish: Corrosion-resistant gray powder coating.
- Top & Side Access: Easy maintenance and control access.
- Hurricane-Ready: Goodman 5 Ton 13.8 SEER2 meets Florida Building Code for hurricane-type winds when anchored.
- Multi-Position Installation: Upflow, horizontal left or right.
- Certified for Direct Venting: Flexible venting options.
- Low Air Leakage: Additionally, ≤2% for maximum energy efficiency.
- Durable Steel Cabinet: Long-lasting and resistant to corrosion.
Evaporator Coil - CHPTA6030D3:
- All-Aluminum Coil: Reduces corrosion and increases efficiency.
- Optimized for R-32 Refrigerant: Environmentally friendly.
- Thermal Expansion Valves: Also, it ensures efficiency in cooling and heat pump applications.
- UV-Resistant Drain Pan: Fast drainage with no leaks.

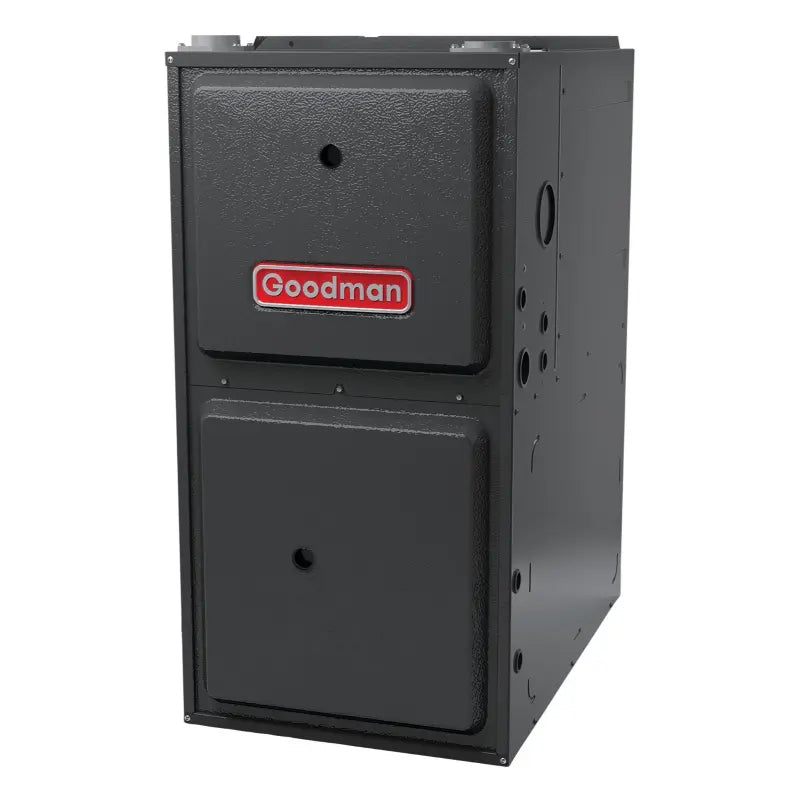

Gas Furnace - GR9S921005CN:
- 92% AFUE Efficiency: High energy savings.
- Self-Diagnostic Control Board: Simplifies troubleshooting.
- Lower NOx Emissions: Environmentally friendly.
- Quiet Heating: Energy-efficient, low-noise operation.
- EAC & Humidifier Provisions: Lastly, it improves air quality.
Overall, the Goodman 5 Ton 13.8 SEER2 AC & 92% AFUE 100K BTU Gas Furnace System offers a highly efficient and reliable HVAC solution for cooling and heating needs. Therefore, its advanced features and certifications ensure excellent performance, energy savings, and durability.
-
AHRI Reference 214860176 AC Model Number GLXS4BA6010 SEER 2 13.8 Tonnage 5 Unit Height x Width x Depth 39.5 x 35.5 x 35.5 in Unit Weight 224 lb Cooling Capacity Nominal 60,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 32.44 Max Fuse Size 50 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA6030D3 Tonnage 5 Unit Height x Width x Depth 24.5 x 30 x 21 in Unit Weight 82 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9S921005CN Height x Width x Depth 34.5 x 21 x 28.75 in Weight 141 lb AFEU 92% Configuration Upflow/Horizontal BtuH Input 100,000 BtuH Output 92,100 Tons 3 - 5 CFM 2,000 Min. Circuit Amps 16.7 Vent Size 2" - 3" Motor Type ECM Stages Single LoNox No -
-
