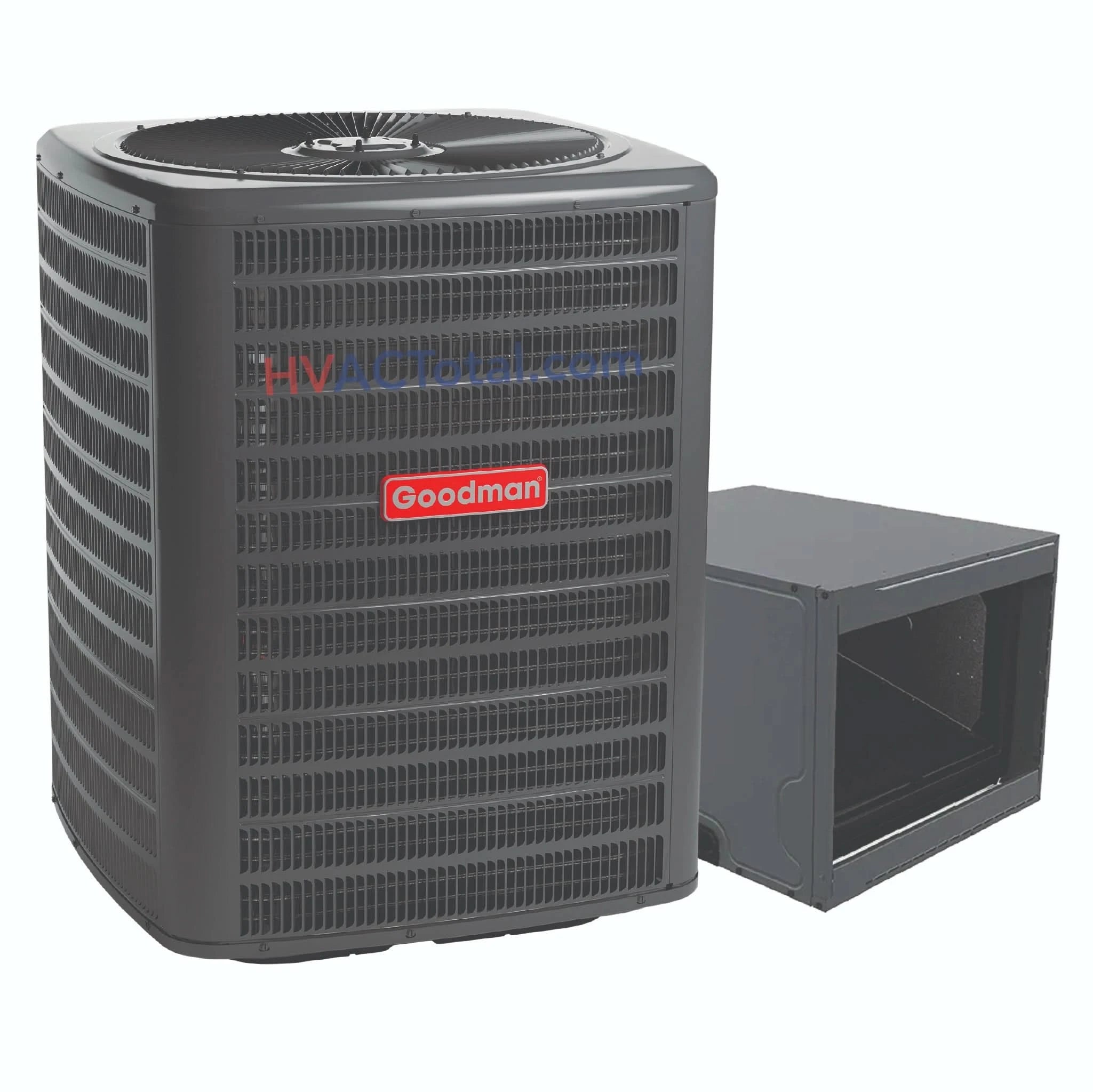

The 5 Ton AC Goodman 14.5 SEER2 & 24.5" Horizontal Cased Coil combines high efficiency and durable construction for a superior cooling experience. With advanced technology and user-friendly features, this system is designed to deliver reliable and energy-efficient performance.
5 Ton AC Goodman - GLXS5BA6010 Features:
- Energy Efficient: High-efficiency compressor and R-32 refrigerant for eco-friendly operation.
- Pre-Charged: Ready for installation with 15' of tubing length fully charged.
- Durable Design: Copper tube and enhanced aluminum fin coil for reliable cooling.
- Easy Maintenance: Factory-installed filter drier and sweat connection service valves.
- Certified Quality: AHRI Certified and ETL Listed for compliance and performance.
Cabinet Features of the 5 Ton Coil Goodman:
- Efficient Airflow: Venturi design boosts airflow velocity for optimal cooling.
- Corrosion-Resistant: Architectural Gray powder-paint finish with 500-hour salt-spray approval.
- Convenient Access: Top and side maintenance access for easy servicing.
- Wind-Resistant: Additionally, Meets Florida Building Code requirements for hurricane-type winds.
5 Ton Coil - CHPTA6030D3 Features:
- All-Aluminum Coil: Optimized for use with R-32 refrigerant, with long-lasting performance.
- Efficient Performance: Moreover, Factory-installed thermal expansion valves for cooling and heat pump applications.
- Space-Saving: Horizontal design and 21" depth for easy attic access.
- Durable and UV-Resistant: Lastly, Rust-resistant thermoplastic drain pan and galvanized finish.
In summary, the 5 Ton AC Goodman 14.5 SEER2 & 24.5" Horizontal Cased Coil ensures superior performance, energy efficiency, and long-lasting reliability, making it a great choice for both residential and commercial applications.
-
AHRI 215381121 AC Model Number GLXS5BA6010 SEER2 15.2 Tons 5 BTU 60,000 Volts 208/230 Phase Single Motor Type ECM Min. Circuit Amps 36.4 Max Fuse Size 60 Liquid Connection 3/8" Suction Fitting 1.125" Refrigerant R-32 Width 35.5" Height 41.625" Depth 35.5" Weight 280 Evaporator Coil Model Number CHPTA6030D3 Unit Depth 21 in Unit Height 24.5 in Unit Width 30 in Cased/Uncased Cased -
-
