The Goodman 5 Ton 14 SEER2 AC & 80% AFUE 100K BTU Gas Furnace System - Upflow, R32 (GLXS4BA6010) provides excellent cooling and heating capabilities while ensuring efficiency and ease of installation.
Key Features of the Goodman 5 Ton 14 SEER2 AC
- Energy-Efficient Compressor: Reduces energy consumption.
- Pre-Charged for 15' of Tubing: Simplifies installation.
- Copper Tube & Enhanced Aluminum Fin Coil: Better heat transfer.
- Factory-Installed Filter Drier: Protects against contaminants.
- High-Pressure Switch: Provides additional safety.
- Capacitors with Extended Life: Ensures longevity.
- AHRI Certified & ETL Listed: Moreover, it meets quality standards.
Cabinet Features of the Goodman 5 Ton 14 SEER2:
- Removable Grille-Style Top Design: Also, it is easy access and maintenance.
- Venturi Design for Improved Airflow: Optimizes cooling efficiency.
- Salt-Spray Resistant Powder Coating: Durable finish.
- Maintenance Access: Top and side panels for easy servicing.
- Hurricane-Ready: Meets Florida Building Code when anchored.
Evaporator Coil - CAPTA6030C3:
- All-Aluminum Coil: Durable, corrosion-resistant.
- Optimized for R-32 Refrigerant: Eco-friendly refrigerant for better efficiency.
- Factory-Installed Thermal Expansion Valves: Enhanced cooling performance.
- Rust-Resistant Drain Pan: Low water retention design.

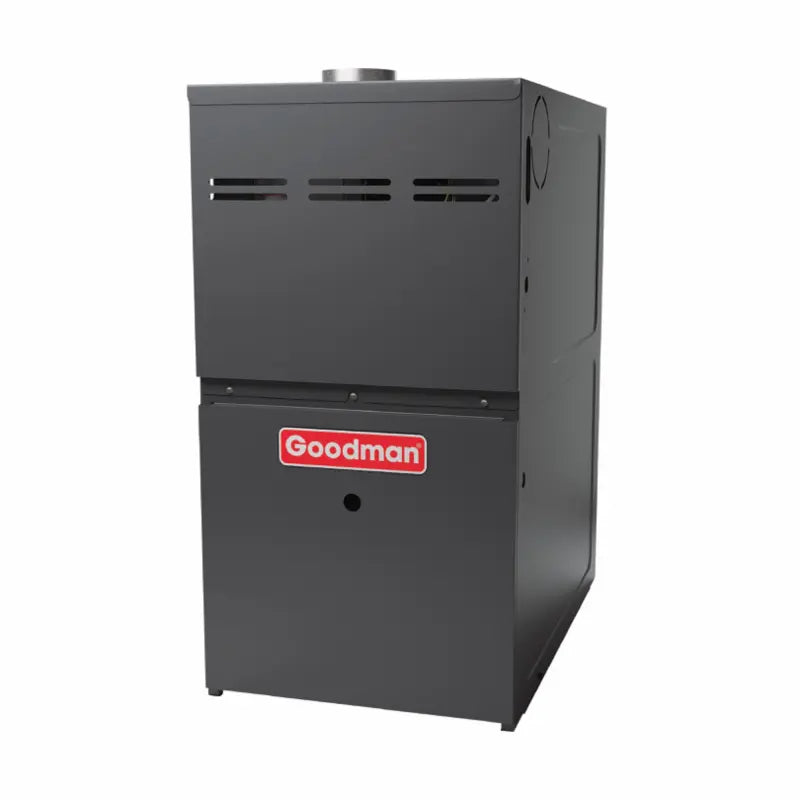

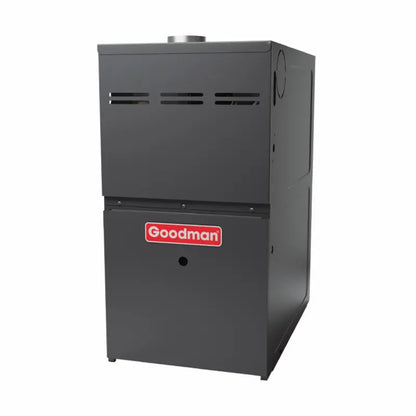

Gas Furnace - GR9T801005CN:
-
80% AFUE Efficiency: Goodman 5 Ton 14 SEER2 provides reliable heating with energy savings.
- Quiet and Efficient Operation: Ensures comfort without noise.
- Self-Diagnostic Control Board: Simplifies troubleshooting and maintenance.
- Lower NOx Emissions: Eco-friendly operation.
- Flexible Thermostat Compatibility: Lastly, it works with two-stage or single-stage thermostats.
The Goodman 5 Ton 14 SEER2 AC & 80% AFUE 100K BTU Gas Furnace System delivers exceptional cooling and heating performance, durability, and easy installation, while adhering to industry standards for energy efficiency and safety.
-
AHRI Reference 214860169 AC Model Number GLXS4BA6010 SEER 2 13.8 Tonnage 5 Unit Height x Width x Depth 39.5 x 35.5 x 35.5 in Unit Weight 224 lb Cooling Capacity Nominal 60,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 32.44 Max Fuse Size 50 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CAPTA6030C3 Tonnage 5 Unit Height x Width x Depth 30 x 21 x 21 in Unit Weight 66 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Upflow/Downflow Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9T801005CN Height x Width x Depth 33-3/8 x 21 x 28 in Weight 124 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 100,000 BtuH Output 80,000 Tons 2 - 5 CFM 2,000 Min. Circuit Amps 14.3 Motor Type ECM Stages Two LoNox No -
-
