The Goodman 5 Ton 14 SEER2 AC & 80% AFUE 120K BTU Gas Furnace System - Upflow, R32 (GLXS4BA6010) provides a balanced solution for both efficient cooling and heating with long-lasting, reliable components. It’s built for homeowners looking for performance, durability, and energy savings.
Key Features of th Goodman 5 Ton 14 SEER2 AC:
- Energy-Efficient Compressor: To begin with, it helps lower utility costs by reducing energy consumption.
- Fully Charged for 15' of Tubing: Also, it simplifies installation by providing an optimal charge length.
- Copper Tube/Enhanced Aluminum Fin Coil: 5mm diameter coil for better heat transfer and efficiency.
- Factory-Installed Filter Drier: Protects the system from contaminants, ensuring longer system life.
- Sweat Connection Service Valves: Easy access to gauge ports for convenient maintenance and service.
- High-Pressure Switch & Extended Life Capacitors: In addition, it enhances durability and protects the system from potential damage.
- AHRI Certified & ETL Listed: Furthermore, it meets industry standards for performance and safety.
Cabinet Features of the Goodman 5 Ton 14 SEER2:
- Removable Grille-Style Top Design: Compliant with UL 60335-2-40 for safety and ease of maintenance.
- Venturi Design for Airflow: Boosts airflow velocity for enhanced cooling efficiency.
- Attractive Architectural Gray Finish: Durable powder-coated finish with 500-hour salt-spray approval for corrosion resistance.
- Steel Louver Coil Guard & Wire Fan Discharge Grille: Provides added protection for the coil and fan components.
- Top and Side Maintenance Access: Easy access to internal components for service and maintenance.
- Hurricane-Ready Design: Goodman 5 Ton 14 SEER2 meets 2023 Florida Building Code integrity requirements for hurricane-force winds when properly anchored.
Evaporator Coil - CAPTA6030D3:
- All-Aluminum Coil: Provides corrosion resistance and durability for long-term use.
- Optimized for R-32 Refrigerant: Designed for use with environmentally-friendly R-32 refrigerant.
- Thermal Expansion Valves: Factory-installed for cooling and heat pump applications for optimal performance.
- Single Front Access Panel: For easy installation and maintenance.
- UV-Resistant, Rust-Resistant Drain Pan: Minimizes water retention and helps prevent leaks.

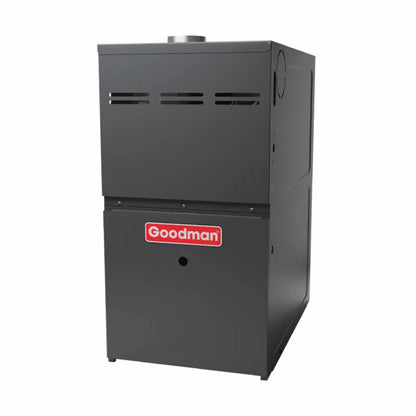

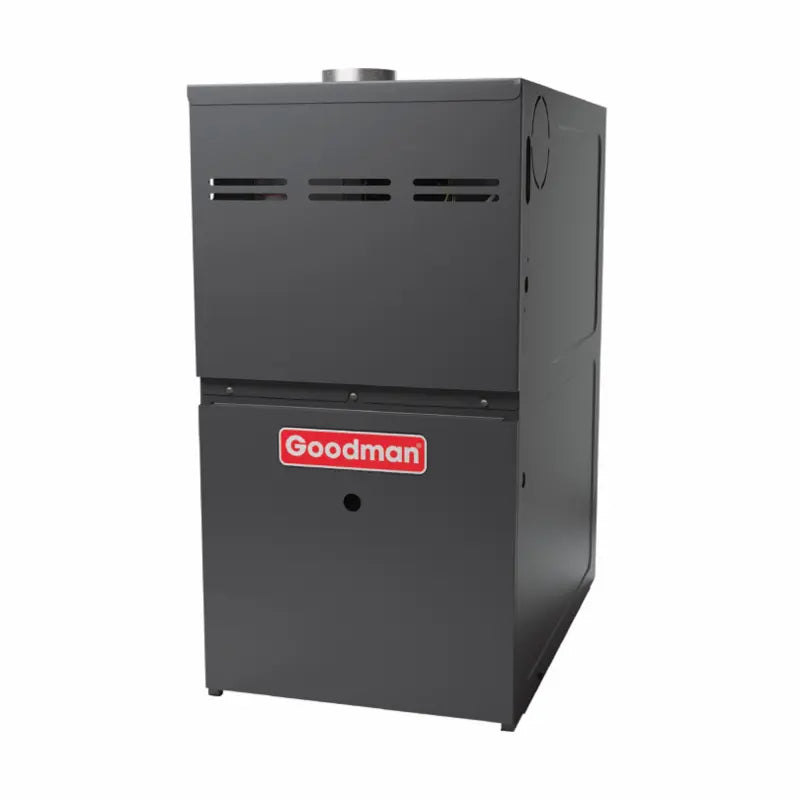

Gas Furnace - GR9T801205DN:
- 80% AFUE Efficiency: High-efficiency heating with lower fuel consumption.
- Durable Igniter Life: Long-lasting igniter for consistent operation.
- Quiet & Efficient Heating: Energy-efficient heating with quieter operation.
- Lower NOx Emissions: Complies with environmental standards for reduced emissions.
- Self-Diagnostic Control Board: Lastly, it simplifies troubleshooting with constant memory and easy diagnostics.
The Goodman 5 Ton 14 SEER2 AC & 80% AFUE 120K BTU Gas Furnace System delivers both efficiency and reliability for year-round comfort. The system includes cutting-edge technology, environmentally friendly refrigerants, and versatile installation options, making it a top choice for homeowners seeking a dependable and energy-efficient HVAC solution.
-
AHRI Reference 214860167 AC Model Number GLXS4BA6010 SEER 2 13.8 Tonnage 5 Unit Height x Width x Depth 39.5 x 35.5 x 35.5 in Unit Weight 224 lb Cooling Capacity Nominal 60,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 32.44 Max Fuse Size 50 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CAPTA6030D3 Tonnage 5 Unit Height x Width x Depth 30 x 21 x 21 in Unit Weight 70 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Upflow/Downflow Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9T801205DN Height x Width x Depth 33-3/8 x 24.5 x 28 in Weight 124 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 120,000 BtuH Output 96,000 Tons 2 - 5 CFM 2,000 Min. Circuit Amps 14.3 Motor Type ECM Stages Two LoNox No -
-
