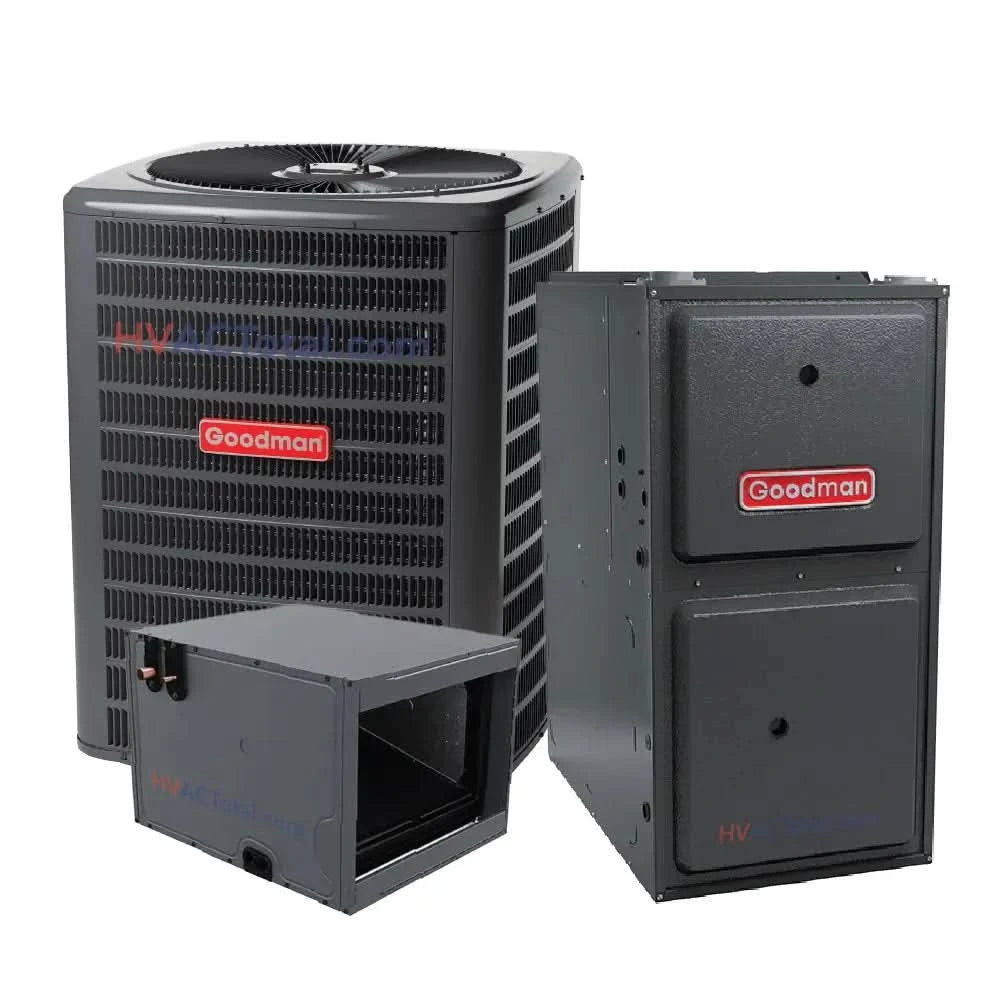

The Goodman 5 Ton 14 SEER2 AC & 92% AFUE 120K BTU Gas Furnace System - Horizontal, R32 is a high-performance, energy-efficient HVAC solution that combines reliable cooling and heating for year-round comfort.
Key Features of the Goodman 5 Ton 14 SEER2 AC:
- Energy-Efficient Compressor: Ensures effective cooling while reducing power consumption.
- Pre-Charged for 15' of Tubing: Simplifies the installation process.
- Copper Tube/Aluminum Coil (5mm Diameter): Enhances durability and heat exchange efficiency.
- Factory-Installed Filter Drier: Protects against contaminants for longer system life.
- High-Pressure Switch & Long-Life Capacitors: Improves performance and system reliability.
- Certified Safety and Performance: AHRI Certified and ETL Listed.
Cabinet Features of the Goodman 5 Ton 14 SEER2:
- Removable Grille-Style Top: Meets UL 60335-2-40 standards for safety and easy servicing.
- Venturi Design: Enhances airflow for improved cooling efficiency.
- Durable Powder-Coated Finish: Resists corrosion, meeting 500-hour salt-spray approval.
- Hurricane-Ready Design: Goodman 5 Ton 14 SEER2 meets 2023 Florida Building Code requirements for wind integrity.
Evaporator Coil - CHPTA6030D3:
- All-Aluminum Construction: Corrosion-resistant and long-lasting.
- Optimized for R-32 Refrigerant: Environmentally friendly with efficient operation.
- Thermal Expansion Valves: Factory-installed for precise refrigerant flow.
- Compact Design: Vertical application with a 21" depth for easier attic installation.
- UV-Resistant, Rust-Proof Drain Pan: Effectively manages condensation.
- Certified Performance: AHRI Certified and ETL Listed.

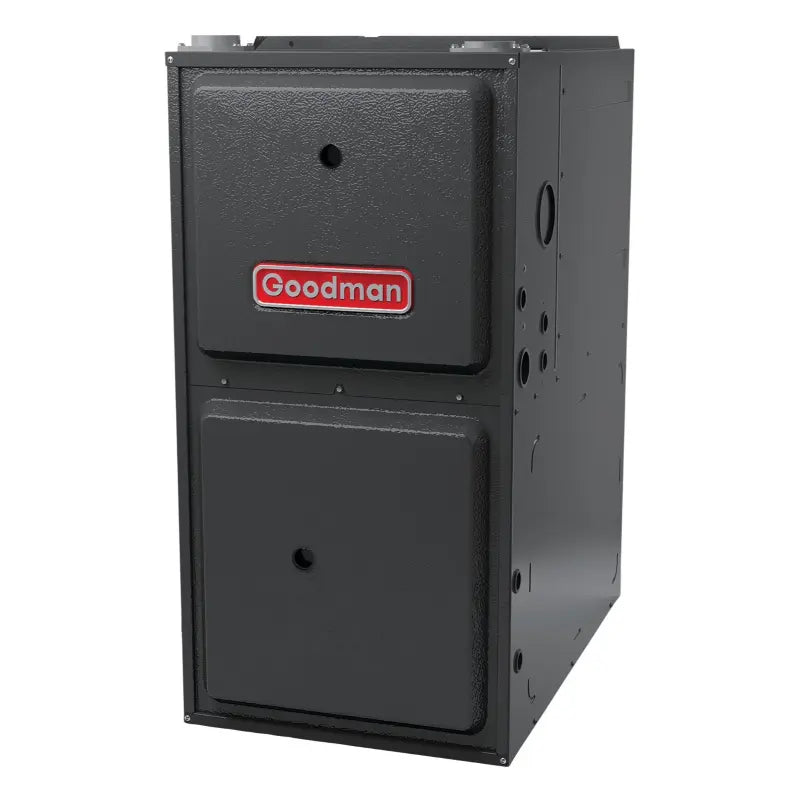

Gas Furnace - GR9S921205DN:
-
92% AFUE Efficiency: In addition, it provides reliable, energy-efficient heating.
- Durable Igniter: Long-lasting component for consistent performance.
- Quiet Operation: Also, it offers comfortable, low-noise heating.
- Self-Diagnostic Control Board: Simplifies troubleshooting and maintenance.
- Dual Thermostat Compatibility: Moreover, it works with single-stage or two-stage thermostats.
- Provisions for EAC & Humidifiers: Additionally, it supports additional air quality enhancements.
- Tax Credit Eligible: Qualifies for energy efficiency tax incentives.
The Goodman 5 Ton 14 SEER2 AC & 92% AFUE 120K BTU Gas Furnace System provides a reliable and efficient heating and cooling solution, ideal for horizontal installations. With its advanced features, durable components, and energy-saving design, this system ensures year-round comfort while helping reduce energy costs
-
AHRI Reference 214860174 AC Model Number GLXS4BA6010 SEER 2 13.8 Tonnage 5 Unit Height x Width x Depth 39.5 x 35.5 x 35.5 in Unit Weight 224 lb Cooling Capacity Nominal 60,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 32.44 Max Fuse Size 50 Liquid Connection 3/8" Suction Fitting 1-1/8" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA6030D3 Tonnage 5 Unit Height x Width x Depth 24.5 x 30 x 21 in Unit Weight 82 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9S921205DN Height x Width x Depth 34.5 x 24.5 x 28.75 in Weight 154 lb AFEU 92% Configuration Upflow/Horizontal BtuH Input 120,000 BtuH Output 110,520 Tons 3 - 5 CFM 2,000 Min. Circuit Amps 16.7 Vent Size 3" Motor Type ECM Stages Single LoNox No -
-
