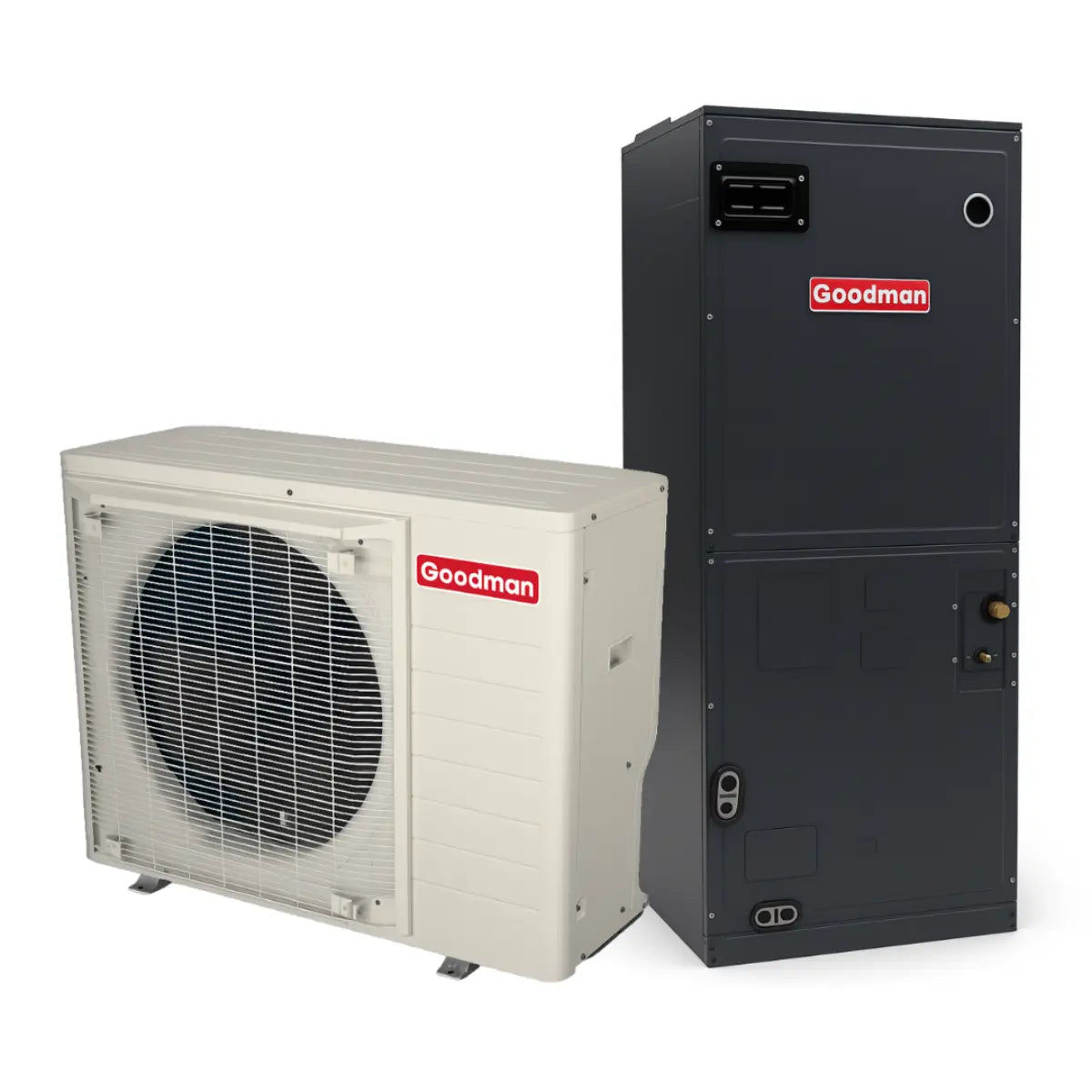

Goodman 5 Ton 17.2 SEER2 115V Multi-positional Inverter R32 Heat Pump Split System - 24.5" Wide

Bring powerful efficiency into your home with this Goodman 5 Ton 17.2 24K BTU SEER2, 115V inverter heat pump system, designed to fit effortlessly into tight spaces with its 24.5-inch-wide, multi-positional design. Using the cleaner, modern R32 refrigerant and advanced inverter technology, it delivers smooth, quiet, and reliable comfort all year long, while keeping energy use in check.

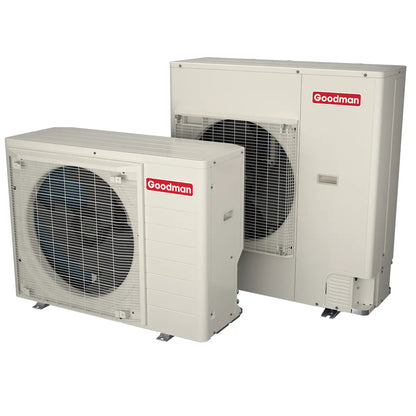

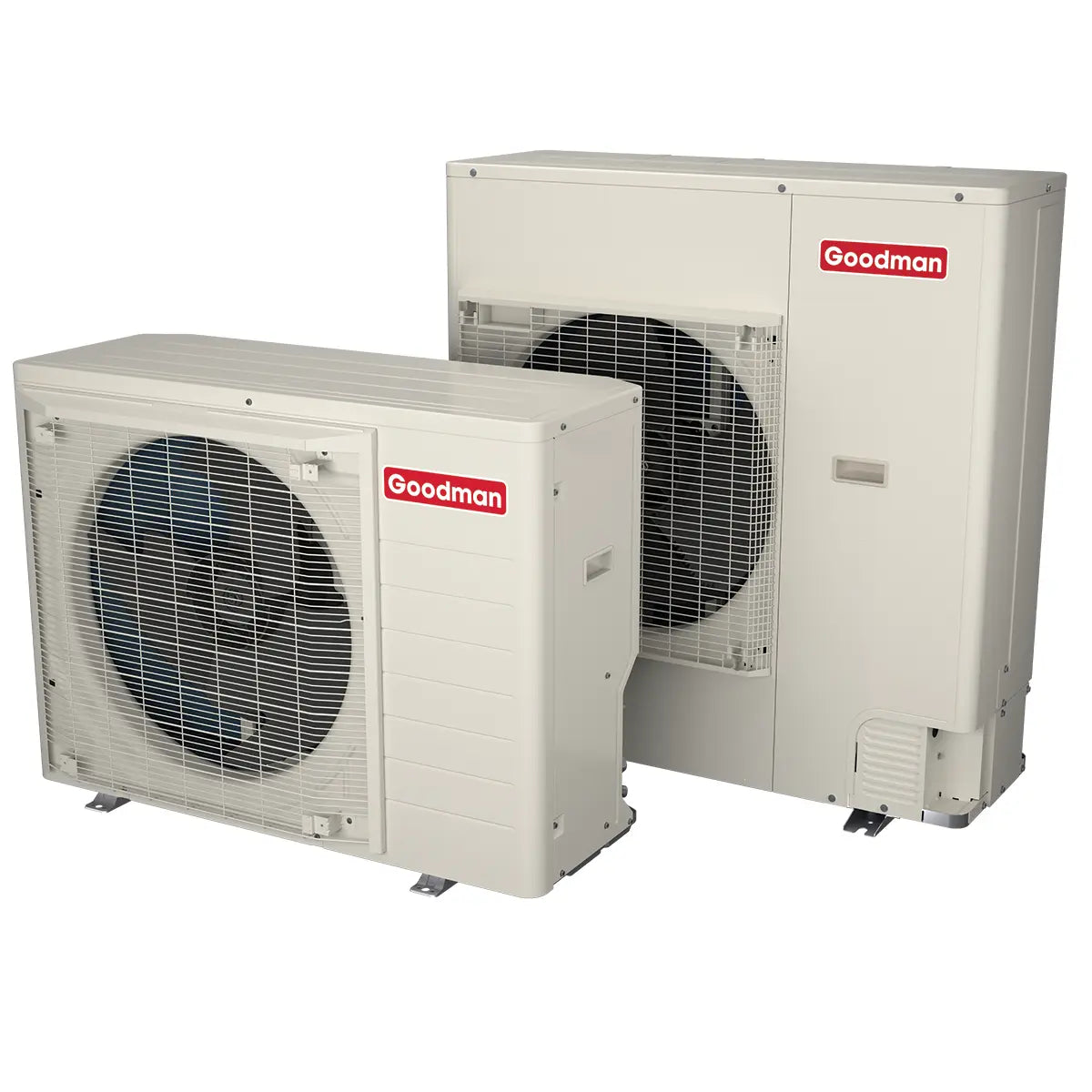

GZV7SA6010 Inverter Heat Pump

Premium Performance & Whisper-Quiet Operation

• Variable-speed swing compressor for smooth, energy-saving performance
• Strong heating output even in demanding conditions
• Quiet digitally commutated fan motor with a high-density sound blanket
• Ultra-low noise levels — as low as 45 dBA
• Works with Goodman GTST smart thermostat and communicating equipment
• Two-wire communicating setup for easier installation
• LED diagnostics, fault code storage, and built-in intelligent controls
• Boost Mode for extra power during high load days
• AHRI Certified; ETL Listed

Durable Cabinet Design

• Heavy-gauge galvanized steel with sound-control grille sides
• Ivory white powder-coated finish
• High-corrosion ZAM® steel base, 500-hour salt-spray tested
• Top and side access for fast service
• Meets 2023 Florida Building Code for hurricane-rated installation (with brackets)

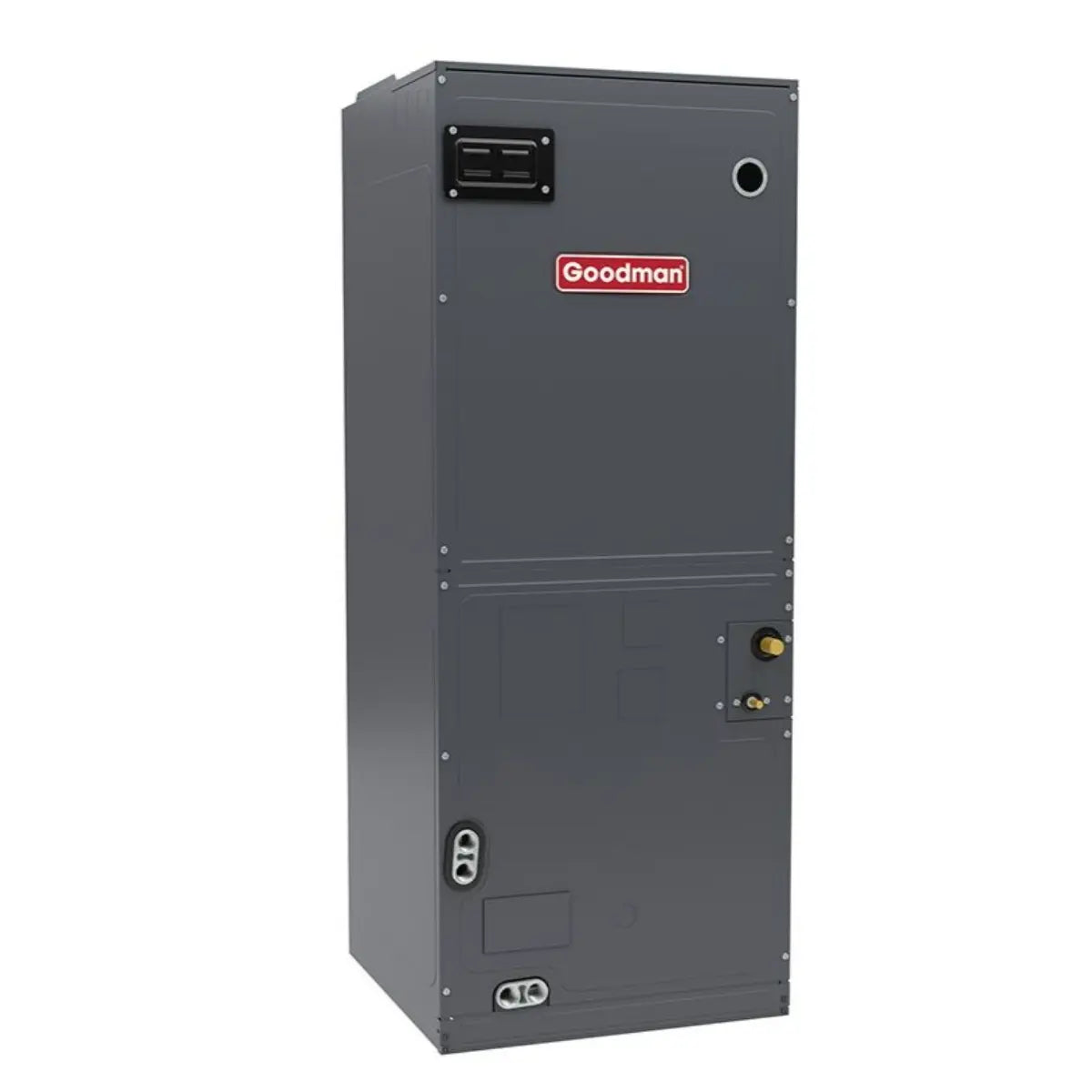

AHVE60DP0300 115V ECM Air Handler

Efficient Airflow & Precision Control

• Electronic Expansion Valve (EEV) for optimized cooling & heat pump performance
• Variable-speed ECM blower maintains consistent CFM
• Smart thermostat compatible
• All-aluminum evaporator coil
• Better humidity control and comfort
• Fault recall for the six most recent errors
• Rigid SmartFrame™ cabinet with UL 60335 2-40 compliance
• Factory-installed R-32 sensor, optimized for R-32 refrigerant
• AHRI Certified; ETL Listed

Space-Saving Cabinet Features

• Low air leakage: <2.0% at 1.0 in. H₂O, <1.4% at 0.5 in. H₂O
• Horizontal or vertical installation
• Compact 21” depth for easier attic access
• DecaBDE-free drain pan with secondary connections
• Screw-less sides/back to reduce condensation
• Foil-faced insulation for moisture control
• Tool-less filter access

Overall, this Goodman system brings together efficiency, durability, and quiet performance to elevate your home’s comfort. In addition, its smart design and flexible installation options make it a dependable choice for both upgrades and replacements. Ultimately, you get a system built to deliver steady comfort, lower energy costs, and long-term reliability, season after season.

Warranty

Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a properly certified professional adhering to city, state and federal laws.
