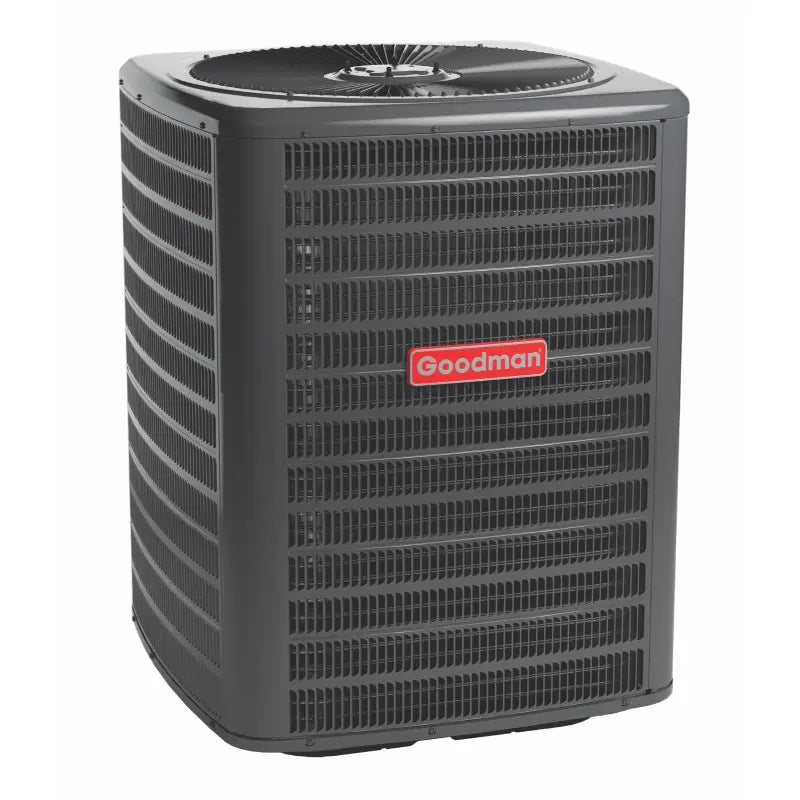

GLXS3BN6010
- Product Benefits:
- Energy-Efficienct Compressor
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
- Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories

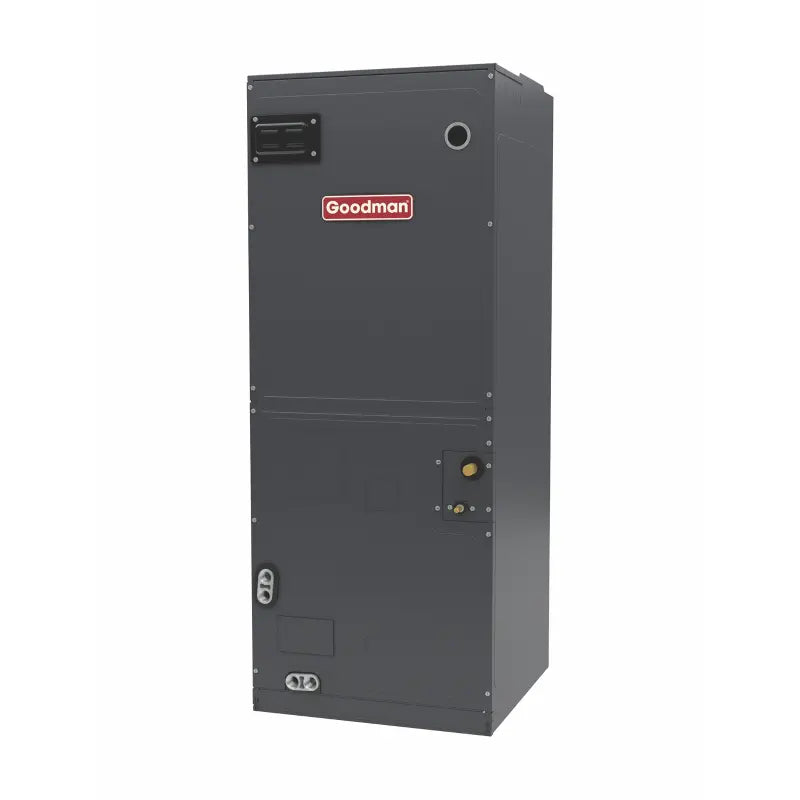

AMST60DU1300
- Product Benefits:
- All-Aluminum tube/aluminum fin coil
- Direct-drive, resilient-mount, 9-speed ECM motor

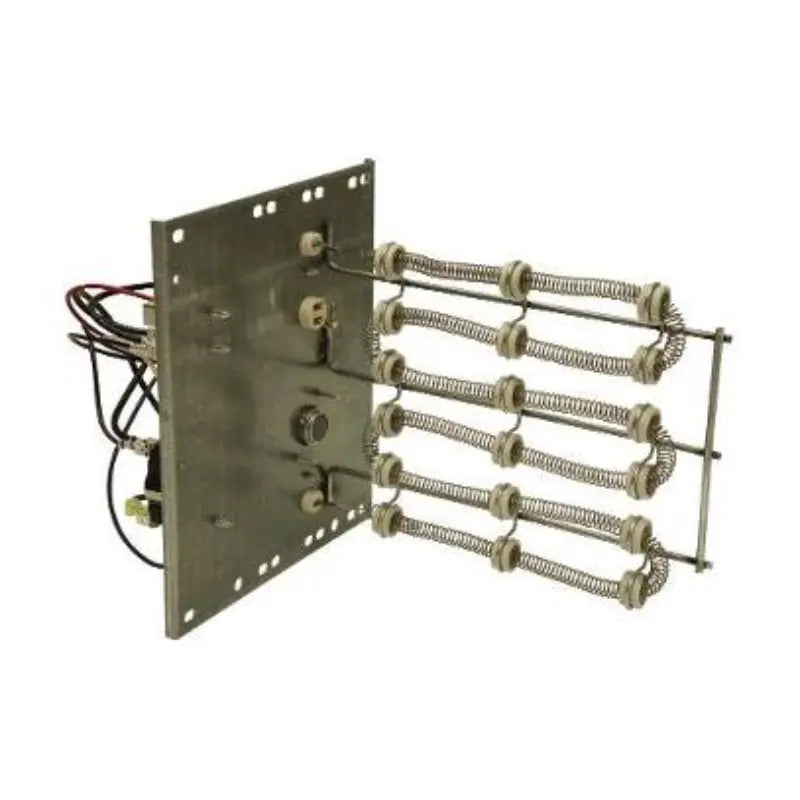

- Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW
- High-efficiency evaporator coil
- Quiet operation
- Primary/secondary drain connection in a high-temperature plastic drain pan
- Suitable for free-return installation (non-ducted return air)
- Galvanized-steel construction
- Factory-installed pull-type disconnect
- Easy service access
- AHRI Certified
- ETL Listed
- Cabinet Features:
- Rigid SmartFrame cabinet
- Horizontal or vertical configuration capabilities
- 21” depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
- Product Benefits:
-
AHRI 215272375 AC Model Number GLXS3BN6010 SEER2 13.4 Tons 5 BtuH Cooling 60,000 Volts 208/230 Phase Single Motor Type PSC Min. Circuit Amps 31.1 Max. Fuse Size 50 Liquid Connection 3/8" Suction Fitting 7/8" Refrigerant R-32 Width 37" Height 42" Depth 37" Weight (lbs.) 229 Air Handler Model Number AMST60DU1300 Unit Depth 21 in Unit Height 58 in Unit Width 24.625 in Unit Weight 167 lb Cooling Capacity Nominal 60,000 Btu/H Max Overcurrent Protection 80/90 A Power Voltage 208/230 V Cased/Uncased Cased Energy Source Electric Motor Speed Type Nine Speed ECM -
-
